ME

19

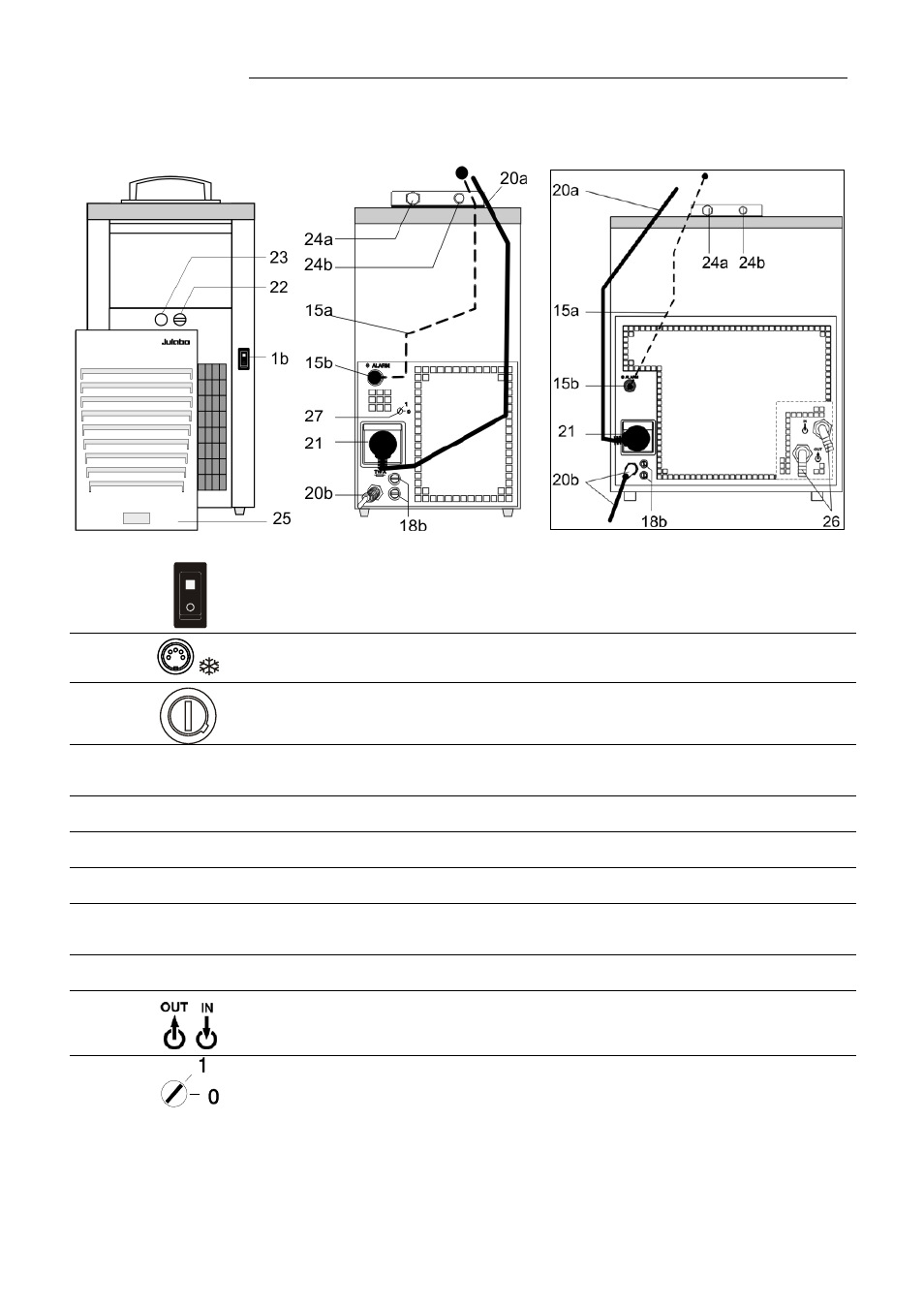

4.2. Cooling

Machine

Front view

Rear view

Rear view FPW unit

1b

Mains power switch, illuminated for cooling machine

15a
15b

Socket: control cable of JULABO refrigerated circulator

18b

Mains fuses for cooling machine, T10A, D5 x 20 mm

20a
20b

Mains power cable with plug for circulator

Mains power cable with plug cooling machine

21

Built-in mains outlet for connection of circulator

22

Drain tap

23

Drain port

24a
24b

Pump connector:

feed

Pump connector: return

25

Venting grid, removable

26

Cooling water OUTLET and INLET.

¾"

27

Selector dial for cooling machine (only F25, F26, F34)
Position "1" for operation with ME circulator.
