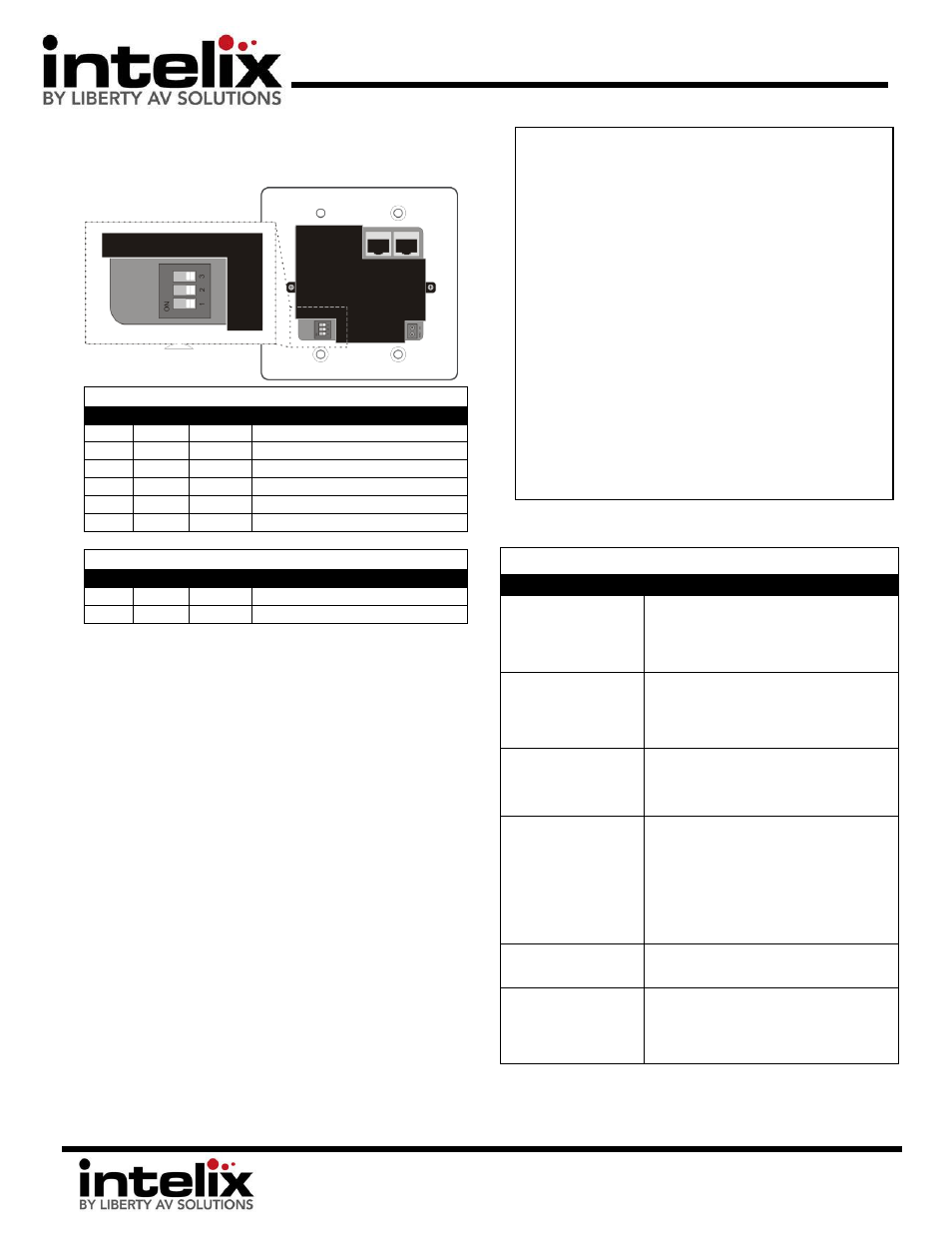

DIP Switch Settings
DIGI-HD-IR3-WP-S Transmitter Dip Switch Positions
SW 1 SW 2 SW 3 Mode
Off Off Off 1080p, Stereo Audio
Off On Off 1080p, 5.1 Audio
Off Off On EDID Information from DDC
On Off Off Use Copied EDID (Run Mode)
On Off On EDID copy (Acquire and store)
On On On 1080i, Stereo Audio
DIGI-HD-IR3-WP-R Receiver Dip Switch Positions
SW 1 SW 2 SW 3 Mode
Off Off Off Normal Mode
Off On Off Compatibility Mode
*The DIGI-HD-IR3 system must be power cycled for the changes
to take effect. Please remove ALL cables from extender, change
DIP switches, and then reconnect.
DIP Switch Settings
1. DIGI-HD-IR3-WP-S
a. 1080p, Stereo Audio – The transmitter is preset
with EDID for 1080p video and PCM stereo audio.
b. 1080p, 5.1 Audio – The transmitter is preset with
EDID for 1080p video and Dolby Digital 5.1, DTS
5.1, and PCM stereo audio.
c. EDID from DDC – The receiver sends dynamic EDID
to the transmitter via the 2
nd Cat 5e cable.
d. Use Copied EDID (Run Mode) – The transmitter
uses custom EDID copied into the transmitter
during installation.
e. EDID copy (Acquire and store) – Installation only
setting used during EDID copy process.
f. 1080i, Stereo Audio – The transmitter is preset
with EDID for 1080i video and PCM stereo audio.
2. DIGI-HD-IR3-WP-R
a. Normal Mode – Factory default works in most
applications.
b. Compatibility Mode – Certain sources may create
an unstable video image. This may include some
cable/satellite receivers. Try using this setting if
you witness an image that flashes on/off
approximately every 2 seconds.
Troubleshooting
Symptom Possible Solutions
No signal
Status LED is off
Verify that both ends of the twisted pair cables
use 568B crimp pattern.
Verify HDMI cables and source and destination
HDMI ports are operational.
No signal Verify the power supplies are connected to both
the send and receive baluns.
Verify the power LEDs on both the send and
receive units are brightly illuminated.
Unusual colors in the
video Power off the destination device and power it
back on to force renegotiation.
Unplug and re-plug the HDMI cable from receive
balun to force renegotiation.
No signal
Screen is completely
snowy
Speckling in the video
Occasional signal dropouts
Use shorter runs of twisted pair cabling.
Drop the HDMI signal to the next lower
resolution; i.e., decrease resolution from 1080p
to 1080i, etc.
Replace the twisted pair cable with a higher
grade twisted pair cable; i.e., replace Cat 5e with
Cat 6.
Speckling in the video
image If the destination device is incapable of displaying
the video signal, alter the source signal; i.e.,
decrease resolution from 1080p to 1080i, etc.
Video without audio Change source device to output PCM other than
Bitstream audio
Enable PCM down sampling if supported by your
source device
Copying Display EDID
1. Disconnect the transmitter from the source device.
2. Disconnect the receiver from the destination device.
3. Set transmitter DIP switches to EDID Copy mode (On,
Off, On)
4. Connect the transmitter to the destination device via an
HDMI cable.
5. Connect the 5VDC power supply to the transmitter.
6. The Status LED will flash for 2-3 seconds then remain
solid. The EDID signals have been copied and stored.
7. Disconnect the transmitter from the destination.
8. Change DIP switch settings to EDID Run Mode (On, Off,
Off)
9. Reconnect the transmitter and receiver following
normal installation procedures.
