STC-2000A Quick Start Guide
Sycon Instruments, Inc . 8
instruments
The standard unit includes:
DESCRIPTION SYCON
P/N QTY
Source sensor card (w/2 crystal sensor inputs & 2 analog
outputs) 502-193 1
Input card (with 8 inputs) 502-197 1
Output card (with 8 outputs) 502-194 1
Power cord (120 VAC) 600-004 1
Fuses (2 x 2.00A 250VAC F-type) 356-014 2
Opto-coupled inputs 25-pin male connector 402-222 1
Relay outputs 25-pin female connector 404-020 1
EMI hood for 25-pin connectors 404-021 2
RS-232 9-pin male connector 404-011 1
EMI hood for 9-pin connector 404-009 1
Rack mount ears 016-012 2
Rack mount hardware 094-006 4
Manual 518-031 1
9-pin female/female “null modem” cable 506-170 1
Hand controller 500-198 1
Communications software tools disk 500-046 1
Quick Start Guide (Non-Sequencing mode) 518-037 1
Quick Start Guide (Sequencing mode) 518-058 1

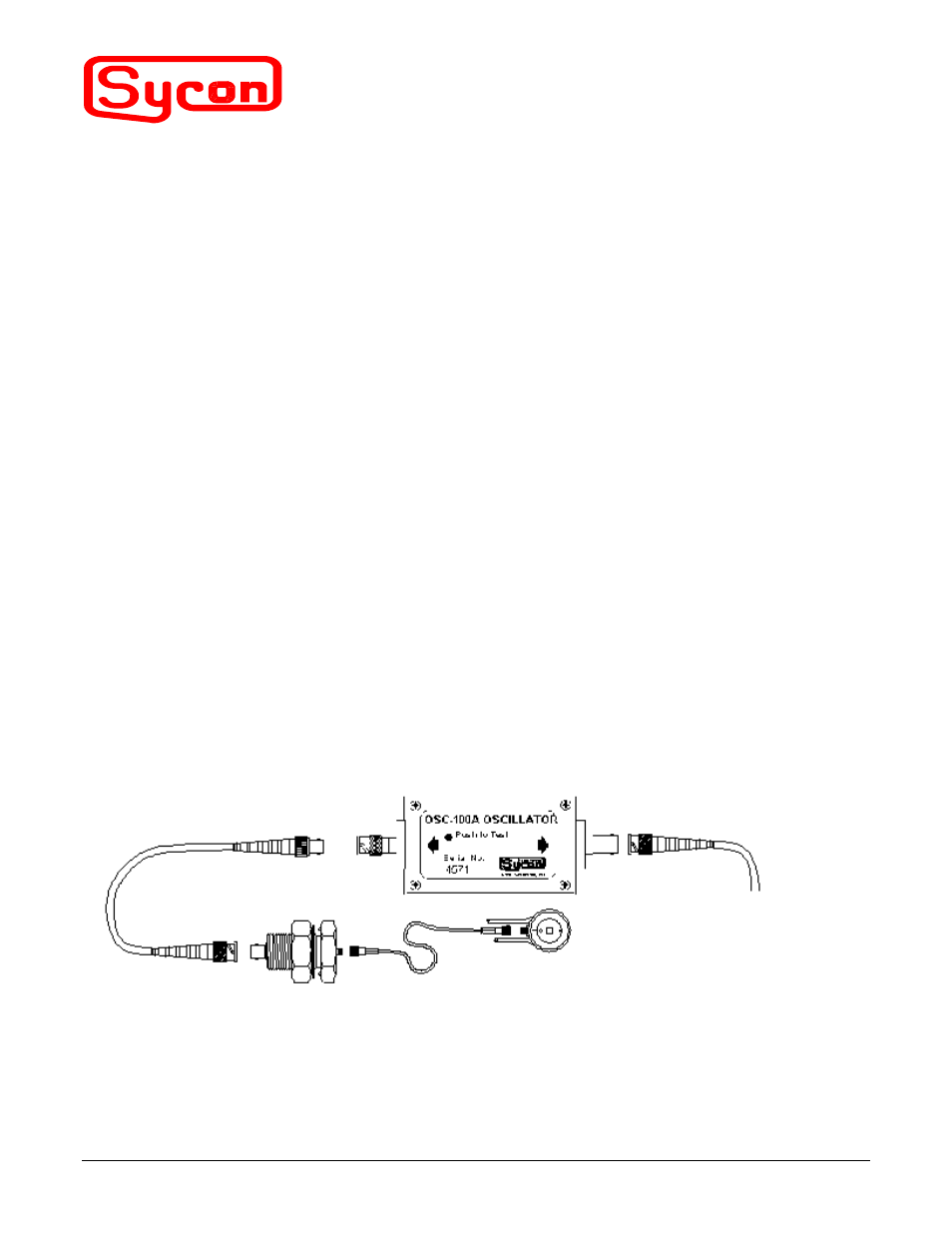

System Configuration:
The STC-2000A uses a crystal sensor and oscillator to monitor deposition. Connections are
made as shown below. Consult the user’s manual for detailed information.
6757 Kinne Street
• East Syracuse, New York 13057-1215 • (315) 463-5297 • Fax (315) 463-5298
Oscillator
Crystal Sensor
To STC-2000A
Feed-through
