INFICON 3000 Micro GC Gas Analyzer Reference Guide User Manual
Page 72
18 - 6
PN
07
4-
55
8-
P1
A
3000 Micro GC Guides
15

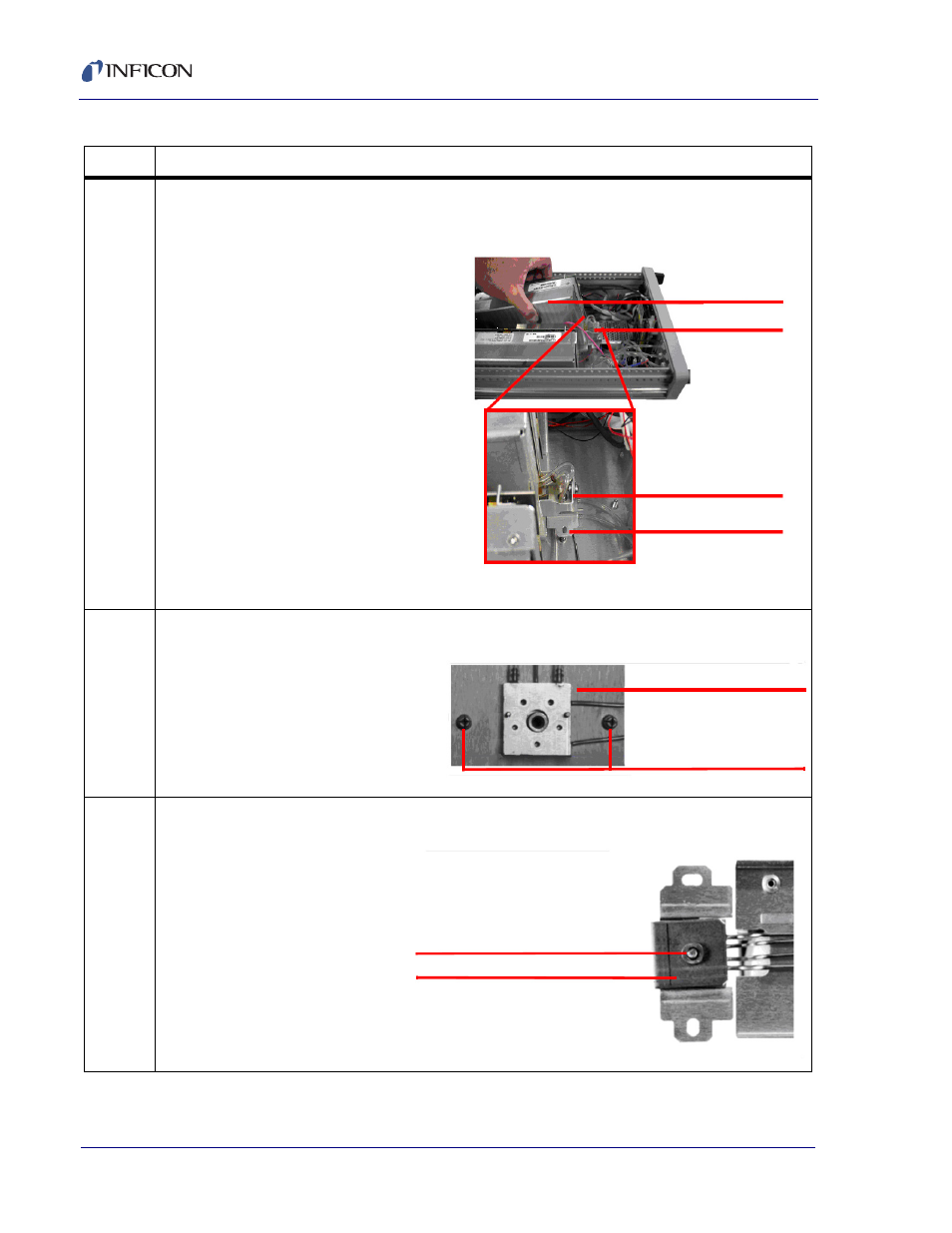

Tilt the back of the GC module up until the mounting flange clears the alignment pins. Slide the
GC module towards the back of the instrument until it clears the inlet manifold frame and can
be lifted and removed from the front.
16
Inspect the gang block fitting on the bottom of the chassis to make sure the mating surface
is free of dust and particles.
17
On the replacement module, remove the small metal plate covering the O-rings on the upper
gang block.
Table 18-1 Changing a standard module (continued)
Step
Description
Tilt GC module
Mounting flange
Mounting flange
Tilt until mounting
flange is free from
aligning pins
2-channel 3000 Micro GC shown
Others are similar
Gang block, lower half
Alignment pins
Metal plate covering
O-rings and upper
gang block
Retaining screw
