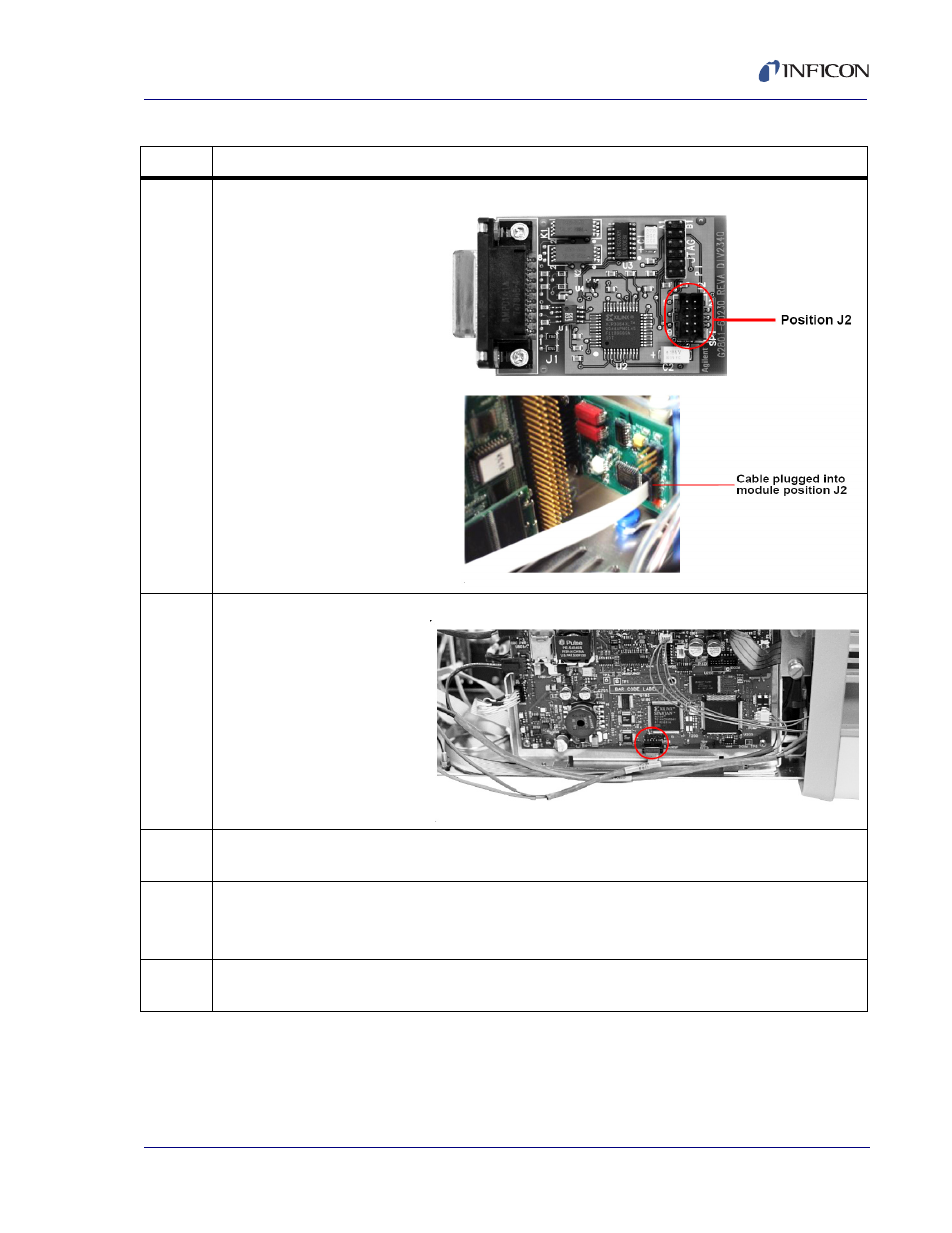

15 Attach one end of the ribbon cable to digital I/O module position J2.
16 Attach the other end of the cable to the communication board at position P14.
17 Carefully slide the chassis back into the instrument. Take care not to damage any wiring or
cables. Use the retained screws to reassemble the top cover. Attach all feet.
18 Turn the 3000 Micro GC power switch, located on its front, to the On position. The switch will
illuminate green to indicate that 3000 Micro GC is on.
Wait three minutes for the instrument to load.
19 Refer to the 074-519 3000 Micro GC Operating Manual for details on how to use the
digital I/O module.
Table 22-1 Installing the digital I/O module (continued)
Step Description
