Knowing your Belkin Router
5
Port Activity/Status Lights
• Link—Solid indicates that there is a link between the Router and the
computer connected to that port.
• Activity—When an activity light is flashing, data is flowing between the
Router and the computer connected to that port.
Rear Panel
Power Input Jack—Connect 5V DC power supply.
WAN Port—Connect the network cable from the cable or DSL modem to
the WAN port.
LAN Ports—Numbered 1–3. Connect the network cable from your PCs to
these ports. Note: the computers do not need to be connected sequentially.
For example, in a two-computer network you can connect one computer to
Port 3 and another to Port 1.

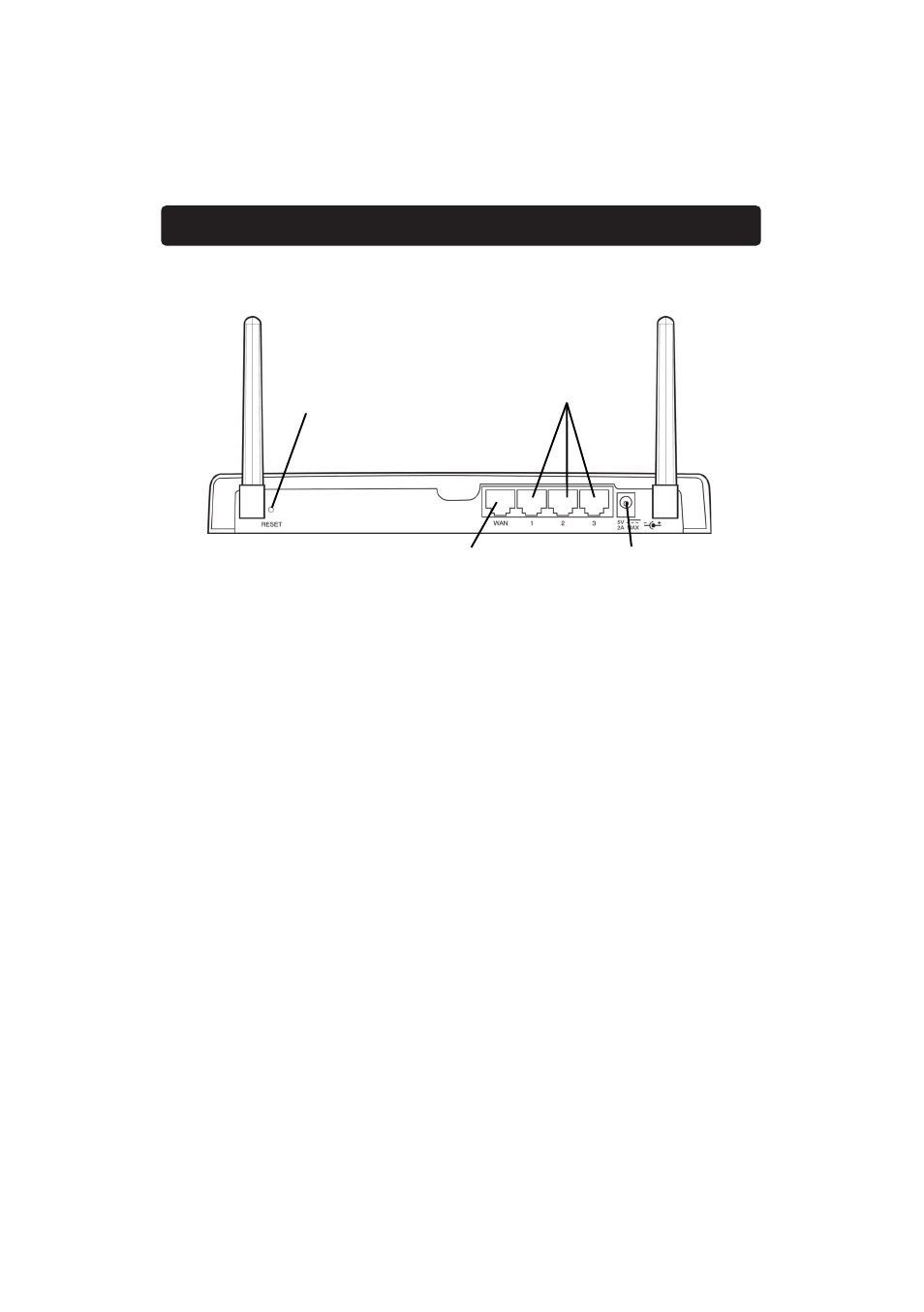

Rear Panel
Manual Reset
Used to reset the Router and
restore all factory defaults
WAN Port
Connect your cable or DSL
modem to this port DC Power Jack
Connect the included power
supply to this jack
LAN Ports
Connect your PCs to these ports
