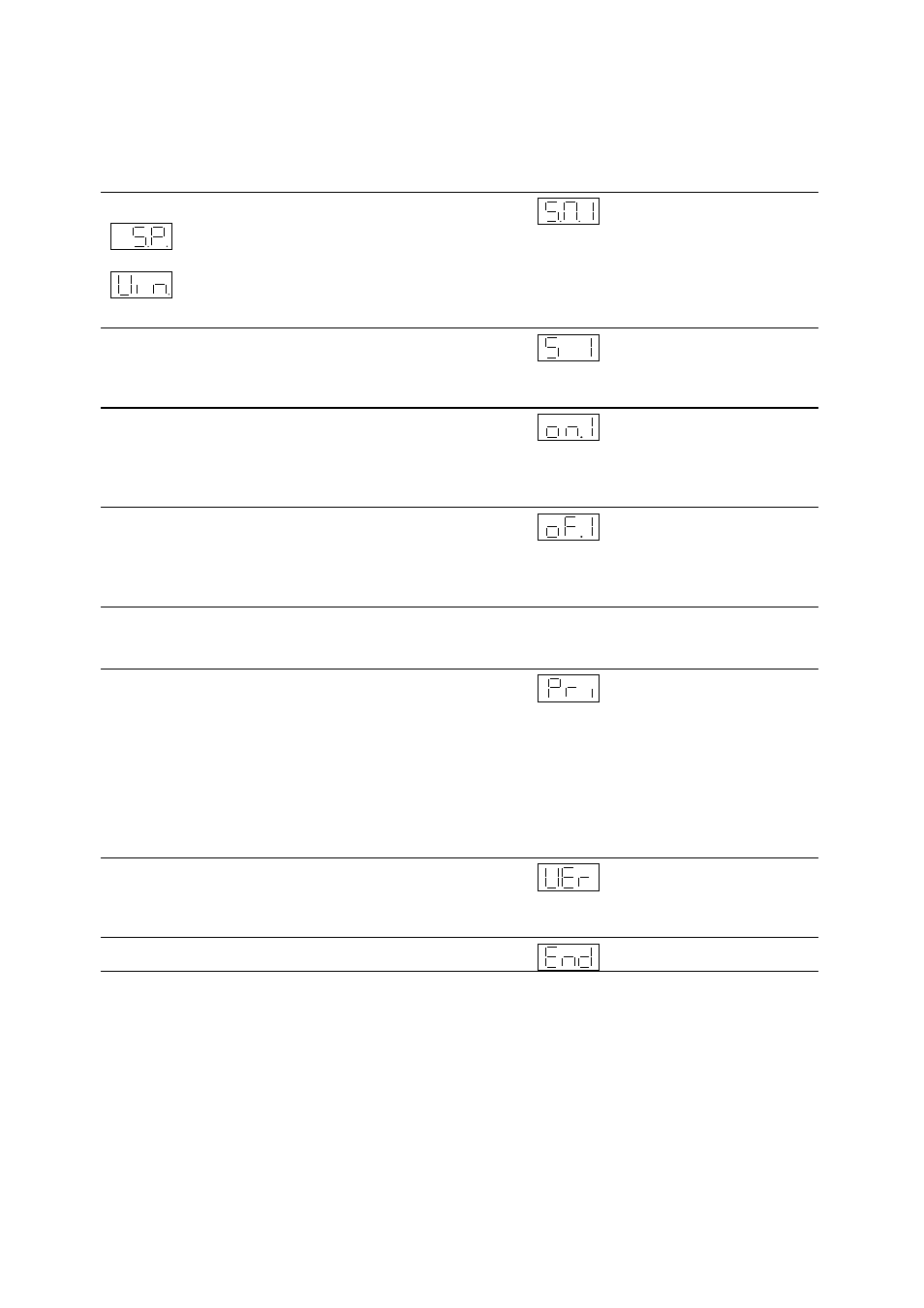

6.2 Summary of the basic settings

Setting

Display

Setting
range

Pre-
setting

Switching mode switching output 1 (Sm 1)

Switching output 1 operates in switching

point / hysteresis function

Switching output 1 operates in window

function

SP/ Win

SP

Switching direction switching output 1 (S 1)

“ON”:

normally open function.

“OFF”: normally closed function.

ON/ OFF

ON

Switch-on delay switching output 1 (Ton 1)
Time in seconds which must elapse, once the
particular switching point has been reached or
exceeded, before switching will occur.

0 ..750s

0

Switch-off delay switching output 1 (Toff 1)
Time in seconds which must elapse, once the
temperature has fallen below the particular switch-back
point, before switching will occur.

0 ..750s

0

Switching output 2, as above

Primary display (Primary)
Display value which should remain permanently in the
display:

“ACT.”: actual

temperature

“Top”:

temperature peak value

“S.P.1” or “S.P.2”: switching point 1 or 2
“OFF”:

display dark

(for function, see point 4 “Digital display”)

ACT/
Top/
S.P.1/
S.P.2/
OFF

ACT

Version number (Version)

Display of the current software version (for reference
only)

To close basic settings (End)

YES/ NO

NO
