Page 8: Pc mount: style cf, Rear views
Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois 60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
Rotary Switches
Multi-Deck Rotary Switches
Switch is Viewed From Shaft End and Shown in Position No. 1.
Note: All common terminals are located above base terminals as shown.

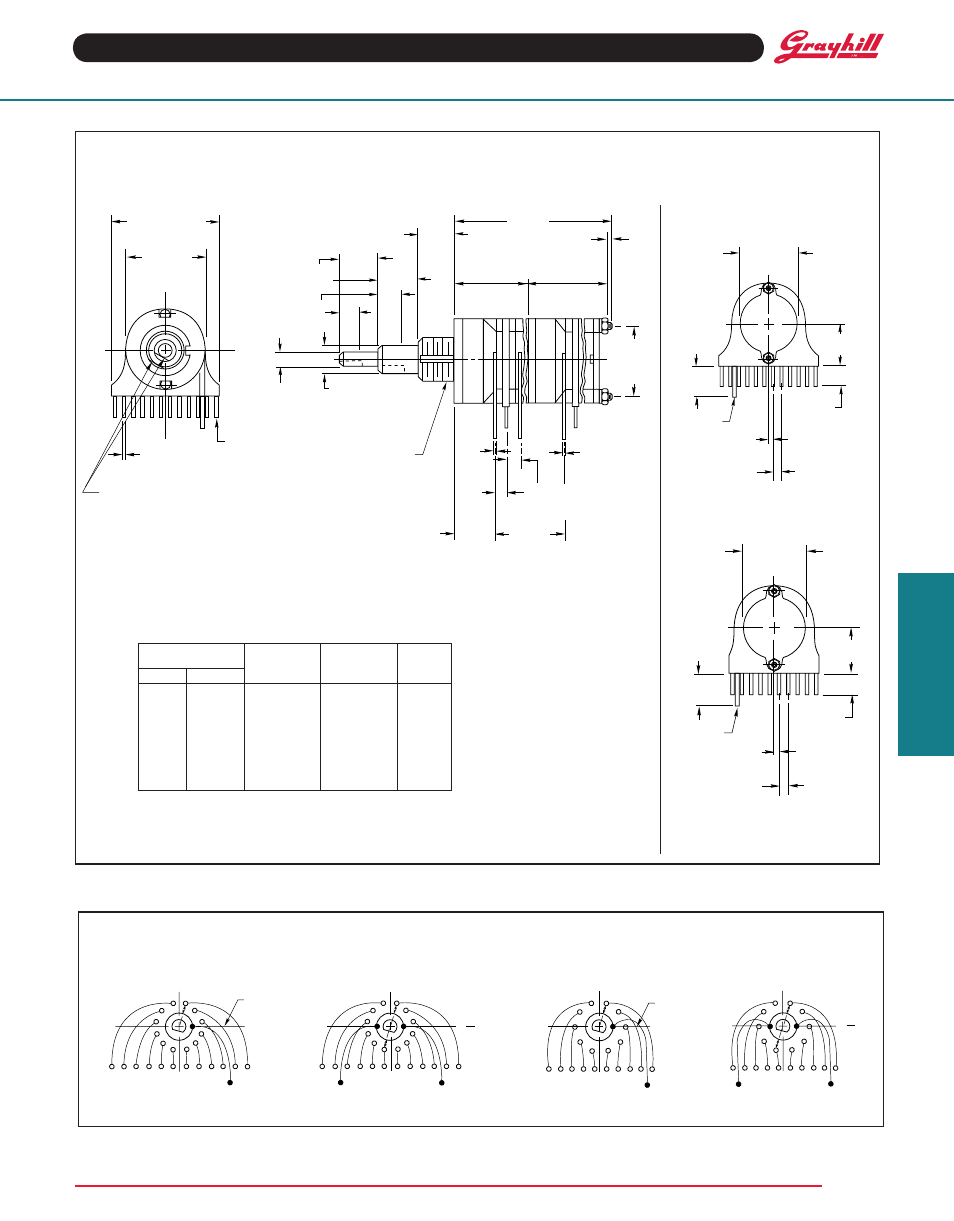

DIMENSIONS
in inches (and millimeters)
PC Mount: Style CF
30° and 36° Angle of Throw may be
interposed on either shaft diameter.
Approx.
Weight
Sec. A
Sec. B
Dimension A
Dimension B
Grams
1
1
1.415 (35,94)
.032 (0,81)
24
2
1
1.633 (41,49)
.032 (0,81)
26
3
1
2.131 (54,13)
.312 (7,92)
28
1
2
1.633 (41,49)
.032 (0,81)
26
2
2
2.131 (54,13)
.312 (7,92)
28
3
2
2.349 (59,66)
.312 (7,92)
30
1
3
2.131 (54,13)
.312 (7,92)
28
2
3
2.349 (59,66)
.312 (7,92)
30
3
3
2.567 (65,20)
.312 (7,92)
32
No. of Decks
For additional dimensions and references for
shafts, flat orientation and bushing keyway,
see drawings for styles 71AF and 71BF.
CIRCuIt DIAGRAMS: PC Mount terminals
ONE POLE
TWO POLE
ONE POLE
TWO POLE
36° Angle of throw
30° Angle of throw
30° Angle of throw
Rear Views
Note: Common location for a Single Pole Per
Deck Switch. For common location on
multipole switches see circuit diagrams.
Grayhill part number and date code marked on detent cover label. Customer part number marked on request.
.020 ± .003
(0,51 ± 0,08)
TyP.
POSITION
NO. 1
.687 ± .015
(17,45 ± 0,38)
DIA.
.875 (30°)
.725 (36°) ± .015
(22,23, 18,42
± 0,38)
.562
± .015
(14,27
± 0,38)
DIM. A
DIM. B REF.
STUD PROJECTION
SECTION
A
SECTION
B
.125 + .001
–.002 DIA.
(3,18 + 0,25
–0,05)
.312 ± .020
(7,92 ± 0,51)
.250 + .001
–.002
(6,35 + 0,03
–0,05)
DIA.
.250 ± .020
(6,35 ± 0,05)
.375 ± .020
(9,53 ± 0,05)
SEE NOTE
BELOW
C
L
C
L
C
L
.110 ± .010
(2,79 ± 0,25)
TyP.
.412 ± .010
(10,46 ± 0,25)
TyP.
.015
± .002
(0,38
± 0,05)
C
L
.656
(16,66)
3/8-32 UNEF-2A
THREAD
COMMON
DECK 1
SECTION A
COMMON
DECK 1
SECTION B
SEE SOLDER LUG
VERSION FOR
SHAFT FLATS AND
DIMENSIONS
1
2
3
4
5
6
7
8
9
10
GRAyHILL
.500 ± .015
(12,7 ± 0,38)
DIA.
.156 ± .010
(3,96 ± 0,25)
TyP.
SEE
NOTE
.368 (9,35)
REF.
.125 ± .010
(3,18 ± 0,25)
TyP.
.037 ± .005
(0,94 ± 0,13)
TyP.
.075 ± .005
(1,91 ± 0,13)
TyP.
C
L
C
L
10 9 8 7 6 5 4 3
1
11
12
OF BUSHING
KEyWAy OR
FLATS
C
L
C1
2
10 9 8 7 6 5 4 3 2 1
C1
OF BUSHING
KEyWAy OR
FLATS
C
L
10 9 8 7 6 5 4 3 2 1
C1
C2
C
L
10 9 8 7 6 5 4 3 2 1
11
12
C1
C2
C
L
36° Angle of throw
1
2
3
4
5
6
7
8
9
10
11
12
.500 ± .015
(12,7 ± 0,38)
DIA.
.368 (9,35)
REF.
.125 ± .010
(3,18 ± 0,25)
TyP.
.156 ± .010
(3,96 ± 0,25)
TyP.
.037 ± .005
(0,94 ± 0,13)
TyP.
.075 ± .005
(1,91 ± 0,13)
TyP.
C
L
C
L
SEE
NOTE
GRAyHILL
