Rotary Switches
Multi-Deck Rotary Switches
C
L
1,57 ± 0,08
5,08
± 0,05
11,13
± 0,13
DIA.
90˚ ± 1˚
0,64
± 0,05
2,36
± 0,13
.015
(0,38)
RADIUS
MAX.
1 / 8 " and 1 / 4 " Diameter Shaft Switches
The bushing of the Series 71 switch is designed so the switch will not turn
if the panel has been cut to fit the exact bushing shape. The bushing for the
1 / 8 " diameter shaft switch has a double flat; the 1 / 4 " diameter shaft switch
has a keyway in the bushing. An alternate means of keeping the switches
from turning is to mount them with optional, non-turn washers.
Part number 50J1066 is made of Stainless Steel. It is supplied with
military switches with Style A in the description. When ordered for standard
product, a like number of switches must be ordered.
Part number 12C1087-1 is Brass, tin/zinc-plated and may be ordered for
standard product.
Part number SHH694-5 is Stainless Steel washer supplied with all military
style switches with Style B in the description. PARt NO. 12C1087-1
STANDARD

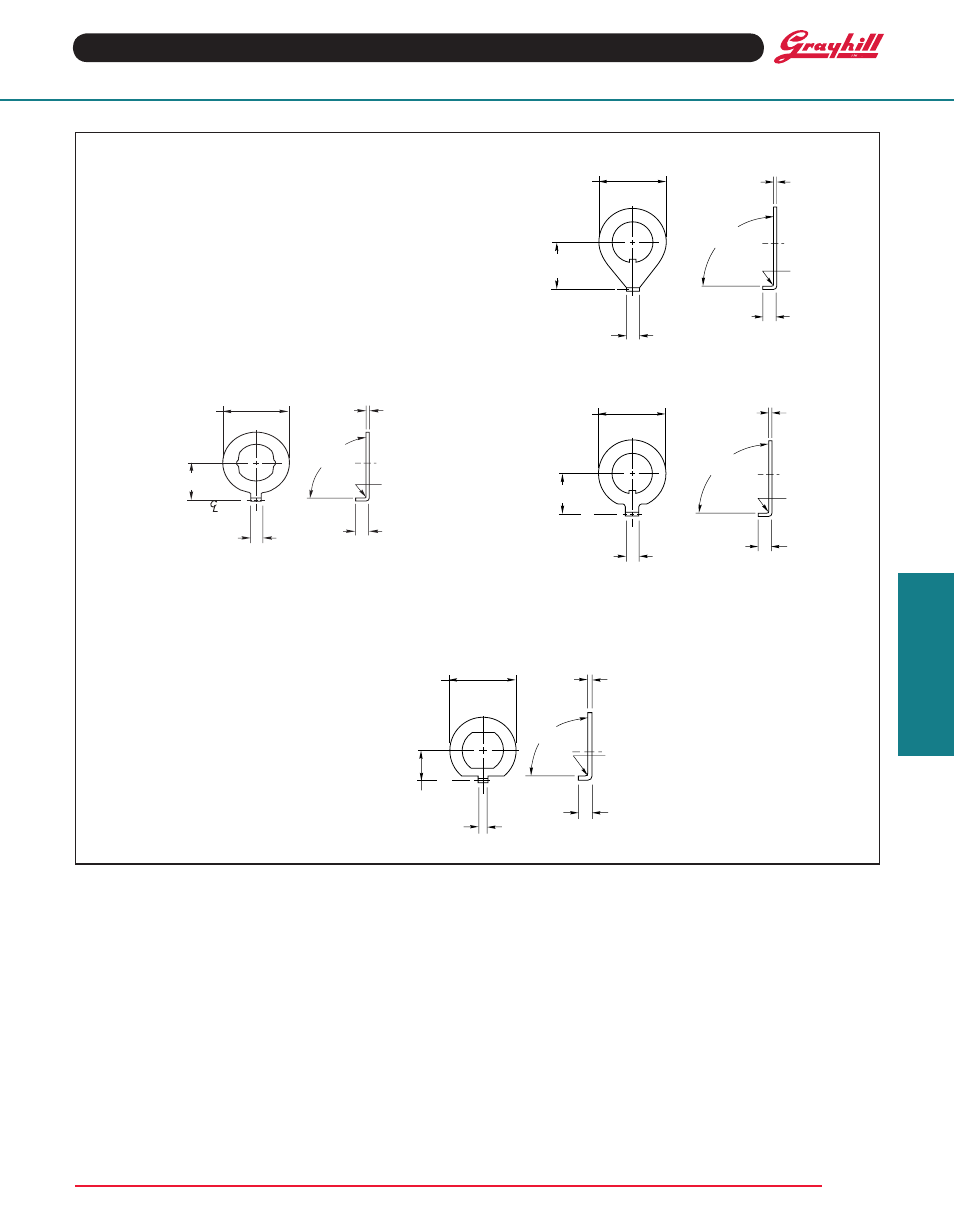

ACCESSORIES: Non-turn Washers
in inches (and millimeters)
PARt NO. 50J1066
MILITARy AND STANDARD
FOR 1 / 8 " DIAMETER SHAFT
PARt NO. SHH694-5
MILITARy
FOR 1 / 4 " DIAMETER SHAFT
4mm Diameter Shaft Switches
Non-turn Washer
For styles E, ED, EF and EDF.
Mounting bushing washer provides non-turn
feature.
302 Stainless Steel.
Part No. 71 J1103. Contact Grayhill for price.
.250 ± .003
(6,35 ± 0,08)
.060 ± .001
(1,52 ± 0,25)
.400
± .005
DIA.
(10,16
± 0,13)
90° ± 1°
.125
± .005
(3,16
± 0,13)
.015
(0,38)
RADIUS
MAX.
.025
± .001
(0,64
± 0,03)
C
L
.125 ± .010
(3,16 ± 0,25)
.005 ± .003
(0,38 ± 0,08)
RADIUS
.032 ± .002
(0,81 ± 0,05)
90˚ ± 1˚
.625 ± .010 DIA.
(15,89 ± 0,25)
.120 ± .003
(3,05 ± 0,08)
.437 + .010 –.000
(11,10 + 0,25 –0,00)
C
L
.375 ± .005
(9,53 ± 0,13)
.125 ± .002
(3,18 ± 0,05)
.625 ± .010 DIA.
(15,89 ± 0,25)
90° ± 1°
.125 ± .005
(3,16 ± 0,13)
.015 (0,38)
RADIUS
MAX.
.032 ± .005
(0,81 ± 0,13)
