Multi-deck rotary switches, Dimensions, Circuit diagrams: pc mount terminals – Grayhill Multi-Deck Rotary Switches 71 Series User Manual

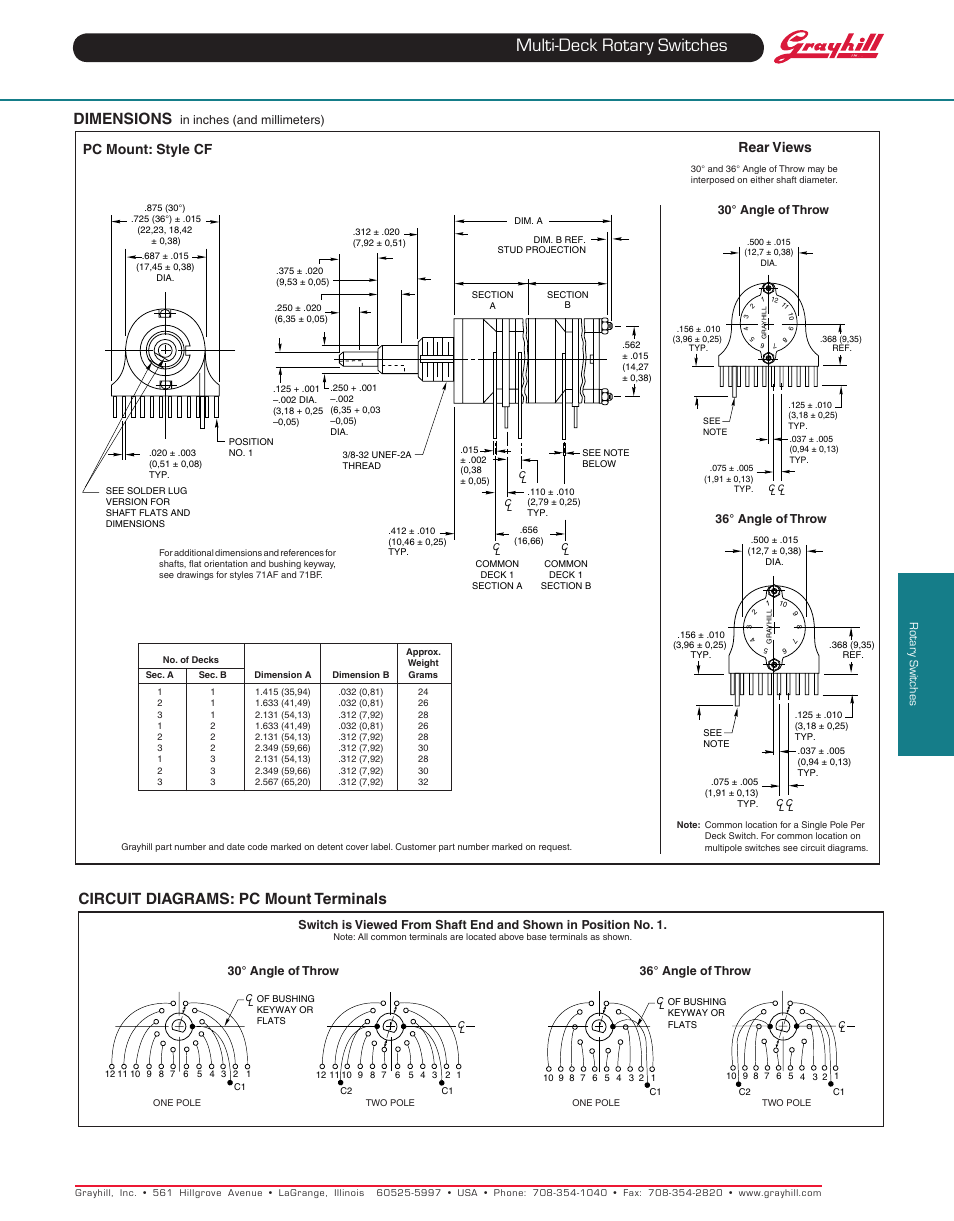

Page 8: Pc mount: style cf, Rear views
