Multi-deck rotary switches, Series 71, Dimensions: standard and military – Grayhill Multi-Deck Rotary Switches 71 Series User Manual

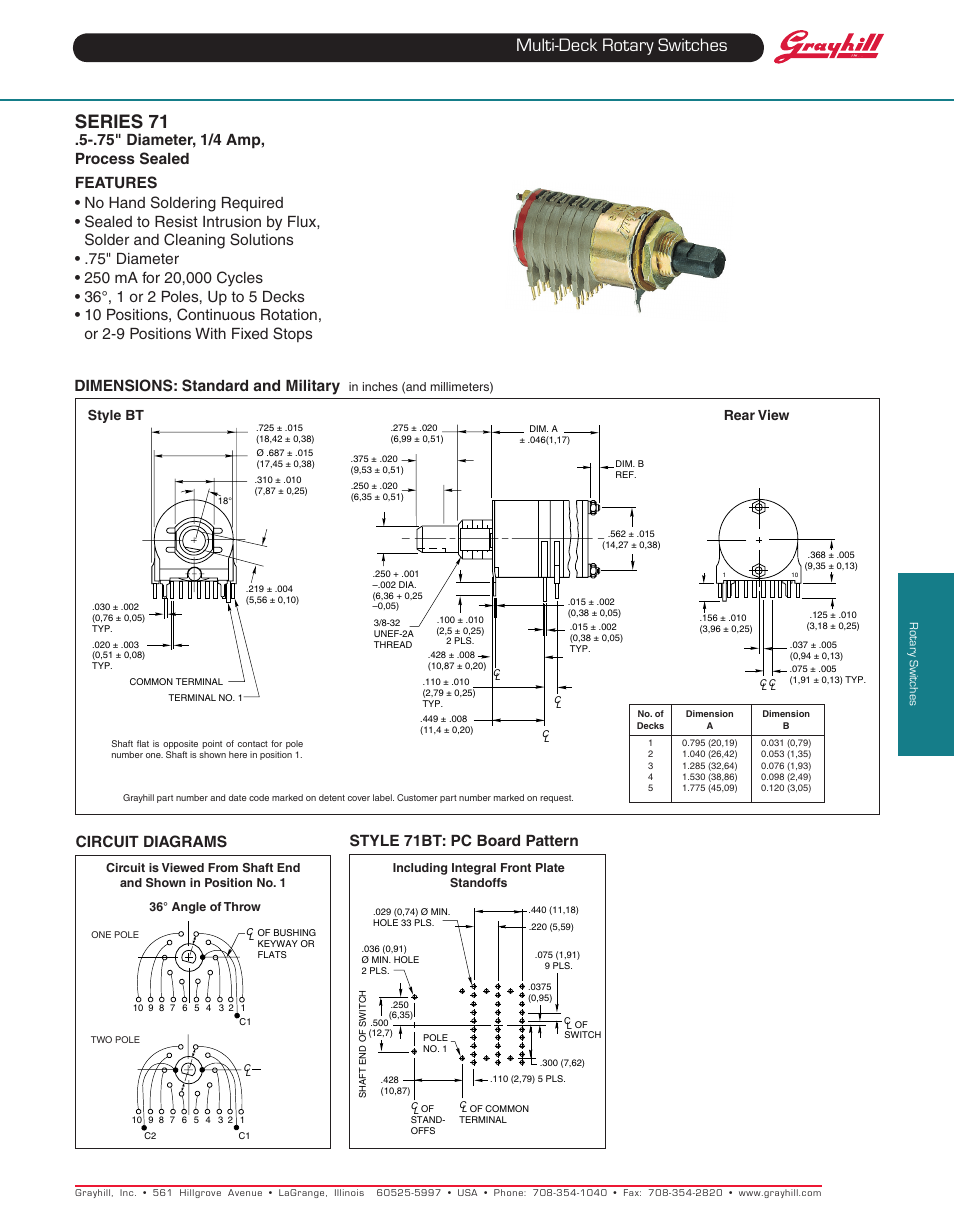

Page 6: Circuit diagrams, Style 71bt: pc board pattern, 5 " diameter, 1/4 amp, process sealed features, Rear view style bt
