Multi-deck rotary switches, Series 43 series 54, Dimensions – Grayhill Multi-Deck Rotary Switches 54 Series User Manual

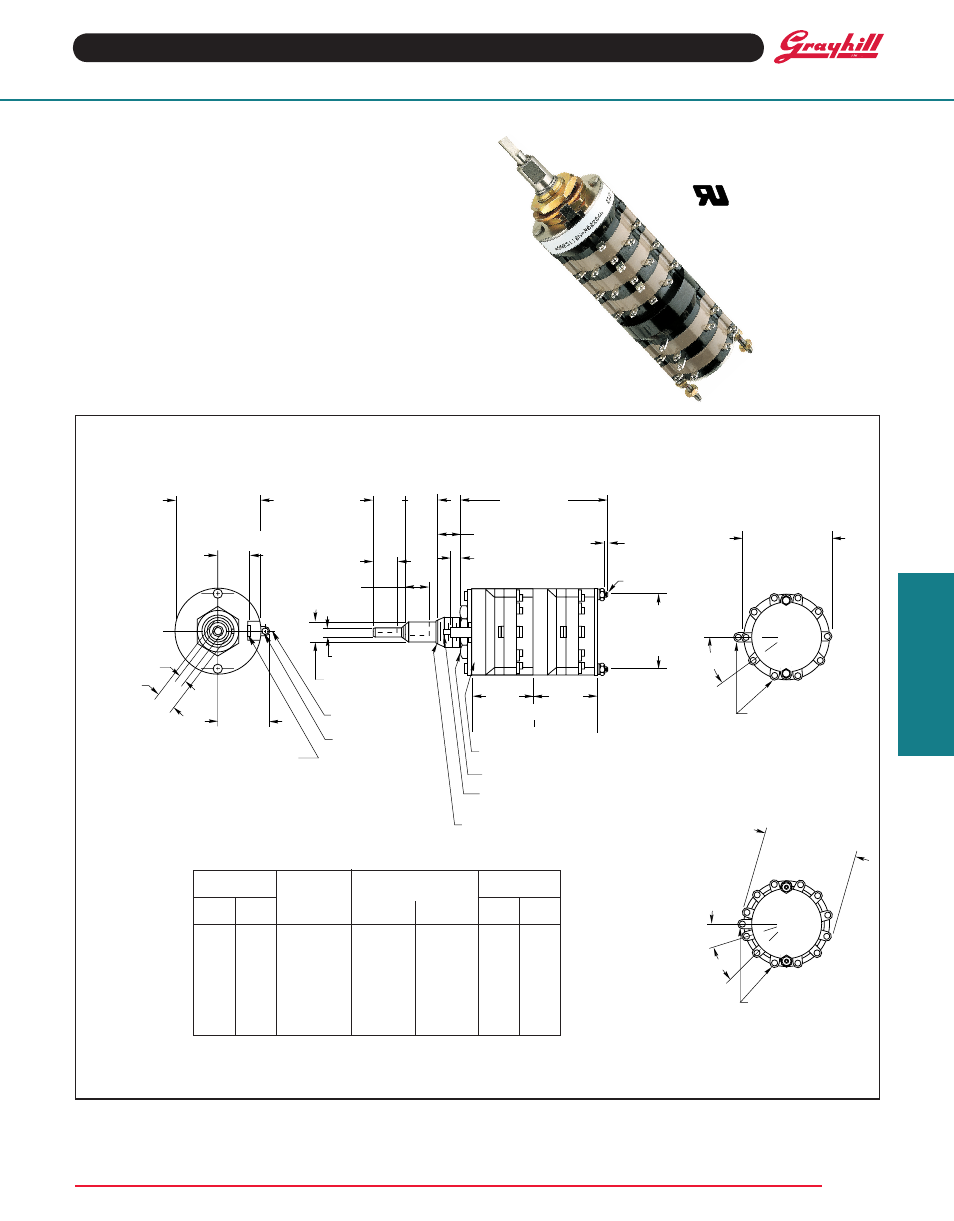

Page 4: Standard style and military qualified, Rear views
Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois 60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
Rotary Switches
Multi-Deck Rotary Switches
Standard Style and Military Qualified
DIMENSIONS
in inches (and millimeters)
Note: Common location for a single pole per
deck switch. For common location on
multi-pole switches, see circuit
diagrams.
Rear Views
Series 54
Series 43
Number of
Approx. Weight
Decks
Dimension A
Dimension B
Grams
Section Section
Style
Style
Style
Series
Series
“A”
“B”
A, M or H
A
M or H
43
54
1
1
1.818 (46,18)
.062 (1,57)
.030 (0,76)
48
60
2
1
2.164 (54,97)
.062 (1,57)
.030 (0,76)
54
67
3
1
2.510 (63,75)
.062 (1,57)
.280 (7,11)
60
74
1
2
2.164 (54,97)
.062 (1,57)
.030 (0,76)
54
67
2
2
2.510 (63,75)
.062 (1,57)
.280 (7,11)
60
74
3
2
3.105 (78,87)
.312 (7,92)
.280 (7,11)
66
81
1
3
2.510 (63,75)
.062 (1,57)
.280 (7,11)
60
74
2
3
3.105 (78,87)
.312 (7,92)
.280 (7,11)
66
81
3
3
3.451 (87,66)
.312 (7,92)
.280 (7,11)
72
88
Grayhill part number and date code marked on detent cover label. Customer part number
marked on request. Military part number marked when required.
1.162 (29,51) DIA.
SER. 54
1.000 (25,4) DIA.
SER. 43
.375
± .015
(9,53
± 0,25)
.642 (16,31)
SER. 54
.562 (14,27)
SER. 43
±.015(0,38)
OF BUSHING
KEyWAy
C
L
SEE NOTE
NON-TURN TAB
.125 ± .003 (3,18 ± 0,08) WIDE By
.031 ± .003 (0,79 ± 0,08) THICK
.219 ± .005
(5,56 ± 0,13)
.094 ± .004
(2,39 ± 0,10)
.125 + .001 –.002
(3,18 + 0,03 –0,05) DIA.
.250 ± .020
(6,35 ± 0,51)
C
L OF NON-TURN
TAB
.250 ± .020
(6,35 ± 0,51)
.093 ± .015 (2,36 ± 0,38)
SER. 43
.121 ± .015 (3,07 ± 0,38)
SER. 54
.375
± .020
(9,53
± 0,51)
.375
± .020
(9,53
± 0,51)
.250 ± .020 (6,35 ± 0,51)
DIM. A + .046 –.020
(+0,05 –0,51)
DIM. B REF.
STUD
PROJECTION
#1 THREAD
SECTION
A
SECTION
B
3/8-32 UNEF-2A THREAD
BUSHING KEyWAy .066 ± .002 (1,68 ± 0,05)
WIDE By .036 ± .003 (0,91 ± 0,08) DEEP FROM
A .375 (9,53) DIA.
INTEGRAL ASSEMBLy NUT, DO NOT REMOVE
.250 + .001 –.002
(6,35 + 0,03 –0,05) DIA.
.830 (21,08)
SER. 43
1.000 (25,4)
SER. 54
± .010 (0,25)
CONTROLLED By
.250 (6,35) .125 (3,18)
DIA. SHAFT
MILITARy NUMBER MARKED ON ALL
QUALIFIED SWITCHES
1.015 ± .015
(25,78 ± 0,38)
OVER TERMINALS
36°
GRAyHILL
.064 (1,63) MIN. DIA.
HOLE AFTER PLATING
8
9
10
1
2
3
4
5
6
7
1.170 ± .015
(29,72 ± 0,38) DIA.
OVER TERMINALS
10
11
12
3
4
5
6
7
8
9
GRAyHILL
.064 (1,63) MIN. DIA.
HOLE AFTER PLATING
30°
2
1
15°
SERIES 43
SERIES 54
1" Diameter, 1 Amp, Concentric
Shafts
FEAtuRES
• Two Switches in the Panel Space
of a Single Shaft Rotary
• Military Qualified Versions
MIL-3786/04
• Choice of 10 Positions (Series 43)
or 12 Positions (Series 54)
