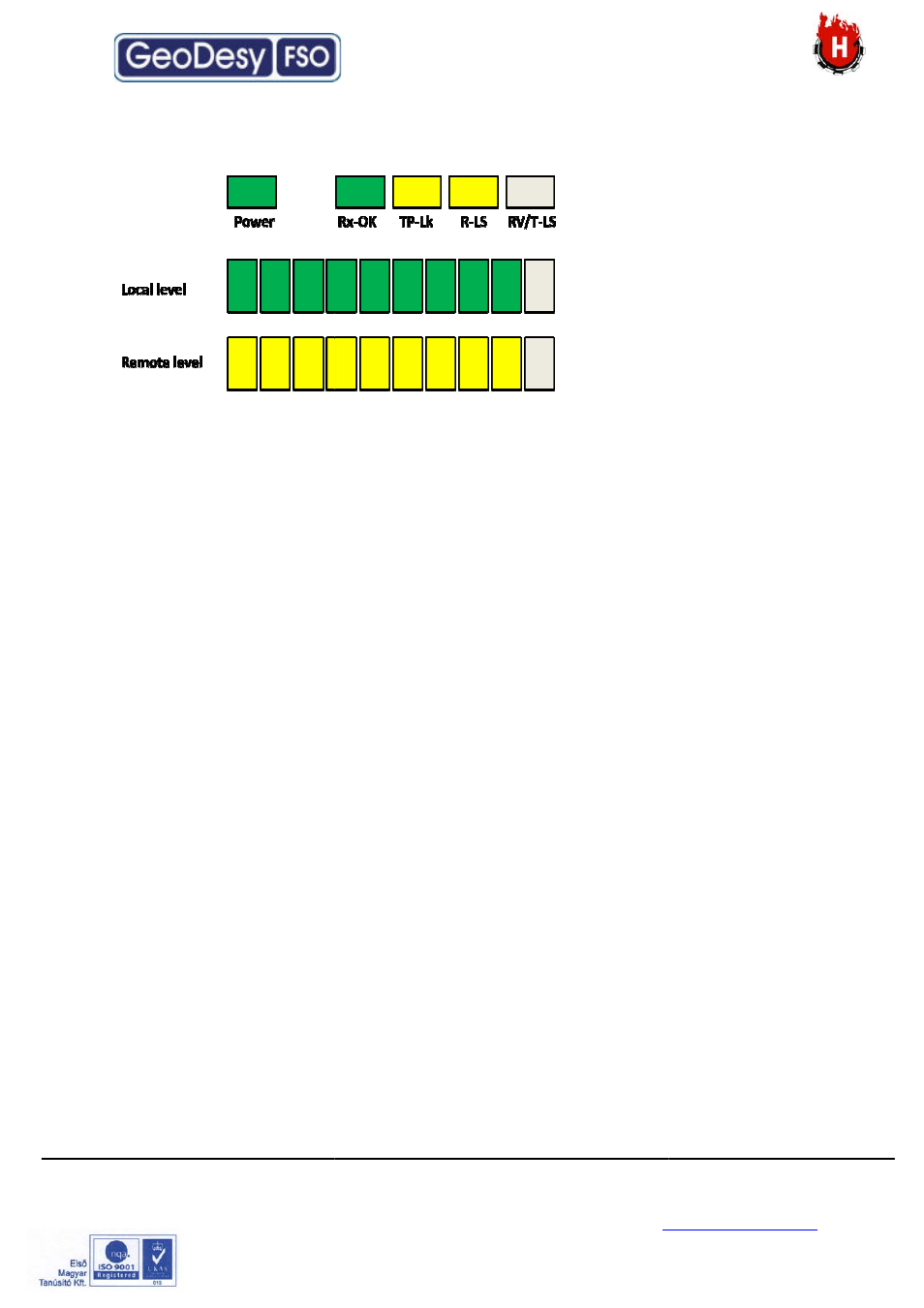

Meanings of the LEDs
Power:
The head is powered up.
RX-OK:
Received beam is good for communication
TP Lk:
Copper link between the head and the Network equipment.
R-LS:
Red if the Gigabit interface can be synchronized to remote side’s clocking signal.
RV/T-LS:
Remote side is Visible
(green)
local side see page 23
Red if the GBIC synchronization is faulty (generally faulty GBIC module
Top Level LEDs:
Local Received level
Bottom Level LEDs:
Remote Sites Received level
10
th
LED:
The 10 th LED has three functions showing that the recived level reached its
optimum this is green, it maximum it is yellow or the receiver got saturated and this
is red
