5 The mounting bracket
In the following chapter you will find detailed description of the bracket fastenings.
5.1 Mounting brackets for the X Series

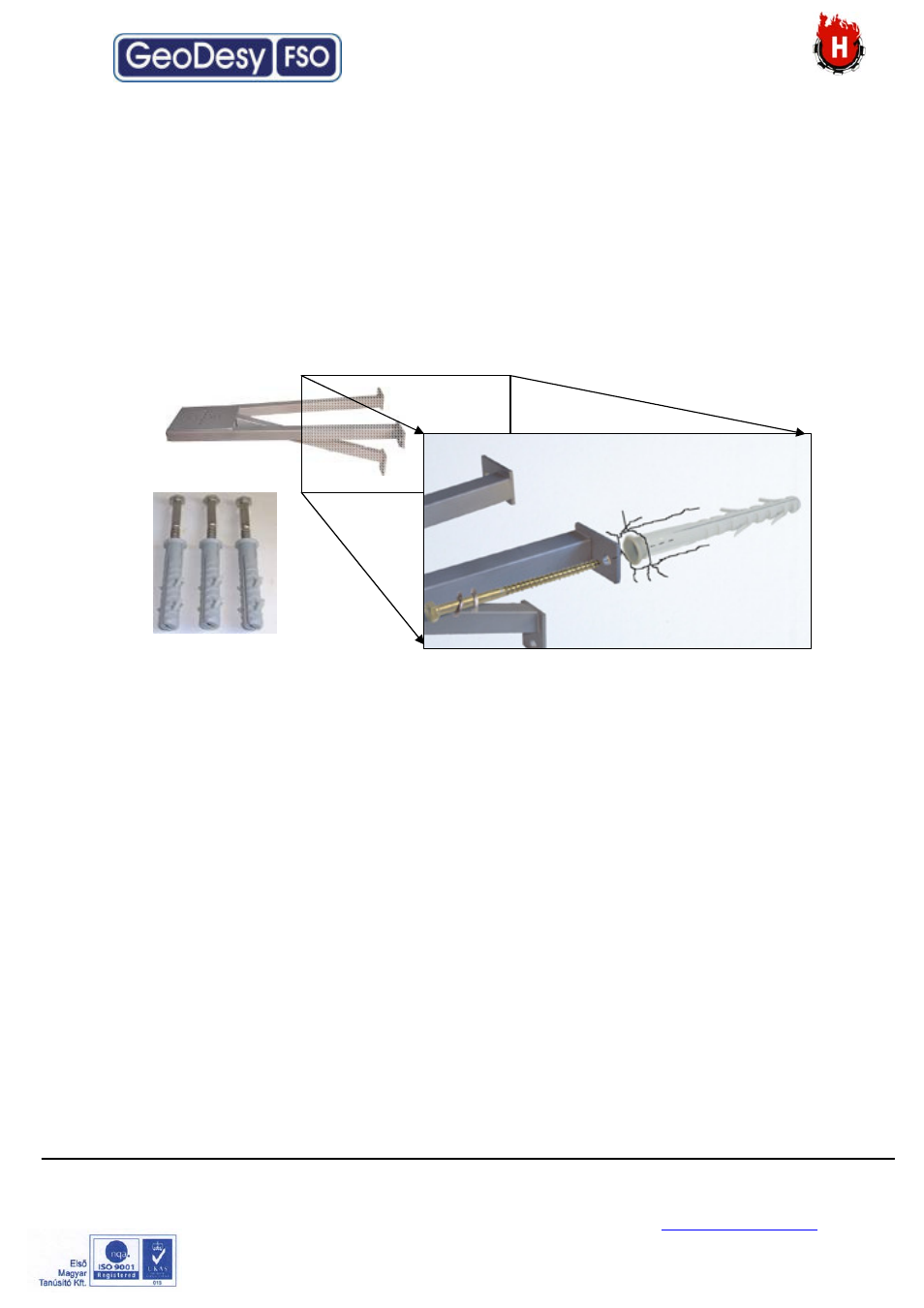

GeoDesy FSO provides the mounting bracket and all the necessary components
for X series units. A simple fixing technique of this bracket can be seen on the
following figure, required tools are as follows:
- drilling machine
- 10 mm wrench
Bracket sizes:
Length: 463mm
Leg Width: 263mm
Head Width: 130mm
Drill size: 10mm wall drilling
Installation steps:
• Place the bracket on the wall
• Mark the wall with a permanent marker
• Use your 10mm wall drill to drill all of the holes into the wall
• Clean the holes
• Place the wall-plugs into the holes (please note that some times you need to
use hammer to put the wall-plugs into the hole, if you have to please be
careful not to break the wall-plug
)
• Place the bracket to the wall an line it up to the holes
• Put the screws into the wall-plug through the hole on the leg of the bracket
(please see the figure above)
• Tighten up the screws
Packet list for the bracket:
3pcs 8x110 screw for bracket fixing
