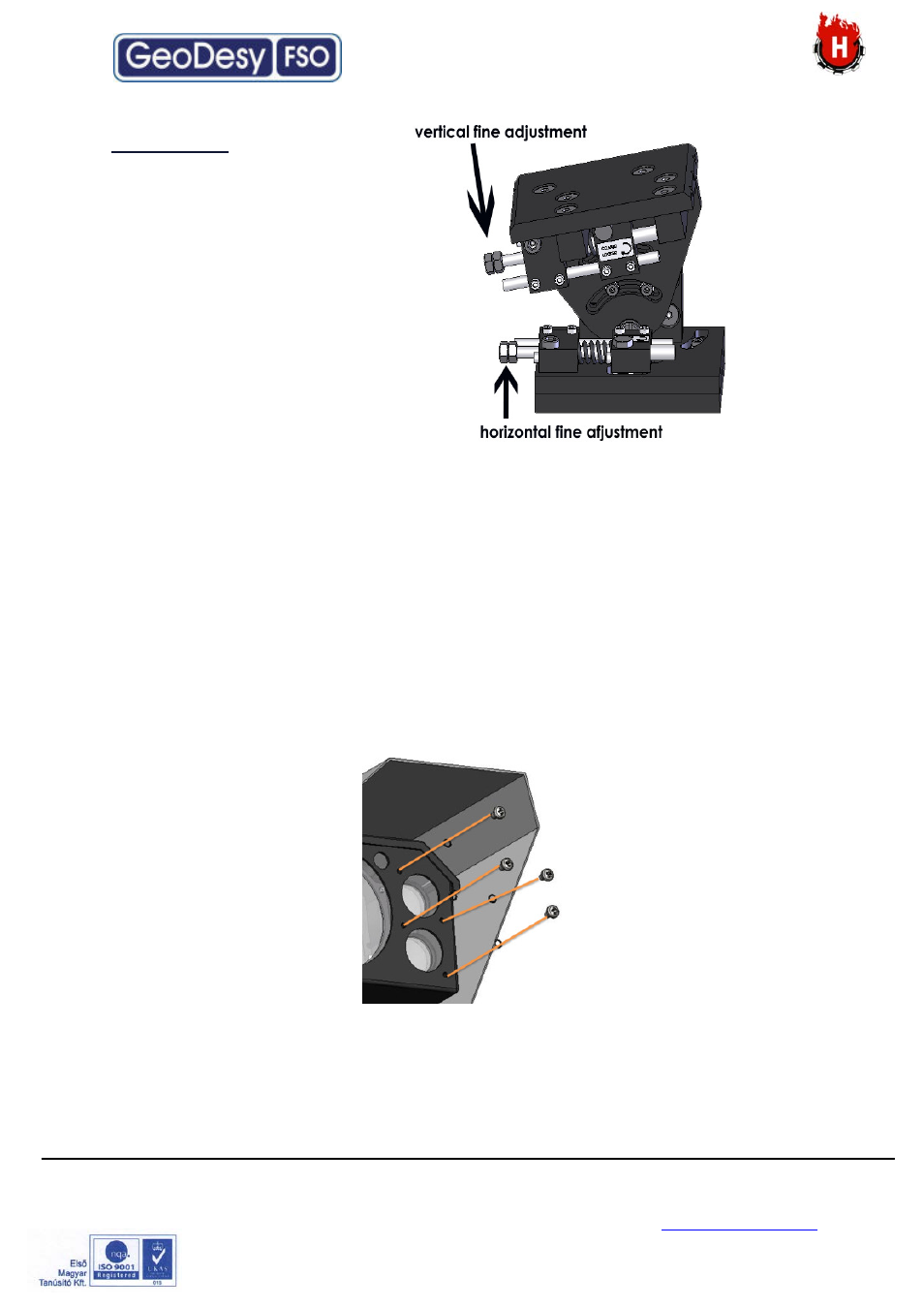

Fine tuning
1. Site A start moving the
laserhead with the
horizontal fine adjustment
screw by looking at the
Remote
end received
level
2. Using the fine adjustment
screws, lighten as many
LEDs as possible
3. Repeat step 1-2 on Site B.
4. If necessary try step 1-2
on both sites again.
6.1.2 GigaPinto-X setting at the installation site
The installation of the GigaPinto-X is as described above with the only difference
that the two transmitters can be moved separately. (use only if there is no
connection between the two heads or they need adjustment). During installation the
motor control has to be switched off. It can be switched off by making an unfinished
booting.
Transmitter setting screws can be approached after removing the 4 screws on the
front of the head. See image:
