Power RX OK TP-LK FO-LK R-V/TP
Local level
Remote level
6.1.1 Alignment of the X series
The first step after the unit was placed to
the bracket, and turns the units facing
each other.
On the back of the receiver
you can find the LEDs for the local
received level and the remote received level. This help will be very
useful because as soon as you have received – which is very easy to
achieve – you can see the effect of your local sides movement to the
other side. For further information please check the Meanings of the
LEDs chapter.

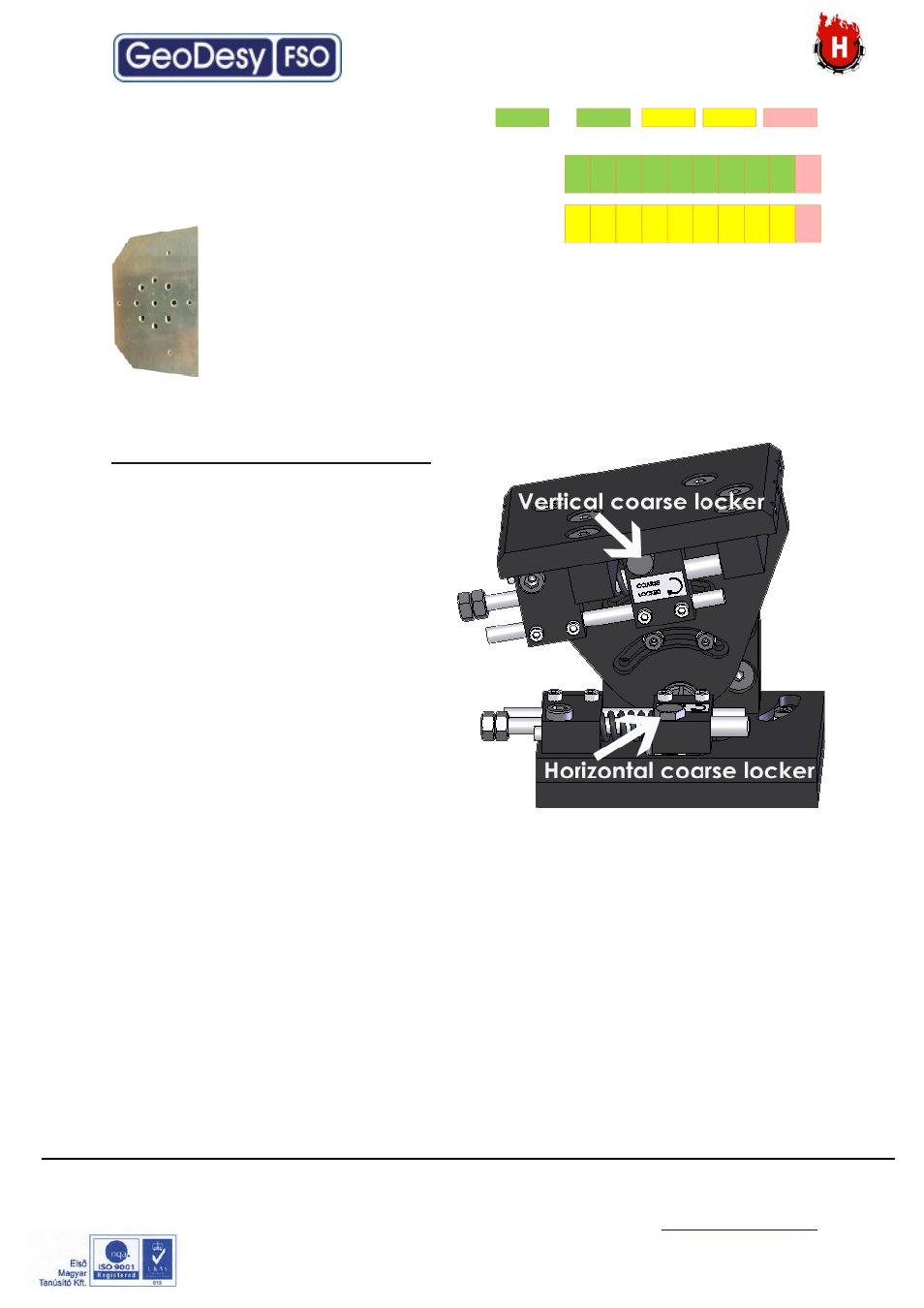

How to use the alignment base
1. Loose the Coarse locker on the
horizontal as well as on the
vertical side with a 10mm
spanner
2. Move the head left - right up
down you should use the built in
telescope to lit up a few LEDs on
the remote end.
3. When you have lined the unit up
to a rough position lock the
coarse locker with a 10mm
spanner.
4. Repeat step 1-4 on the remote
end.
5. On the bottom of the unit you
can find fine tuning screws one for horizontal and one for vertical.
6. No tightening is needed on any other screw than the coarse locker.
