21
1. Or
ange
/White
TX
+
2. Or
ange
TX
3. Gr
ee
n/White
R
X+
4. B
lue
+
VI
N
5. B
lue/W
hit
e
+
VI
N
6. Gr
ee
n
RX
-
7. B
row
n/White
-VI
N
8. B
row
n
-VI
N
7.1.2 Connecting to your Network
PoE 802.3 af connection.
PoE system is connected to the network via one twisted pair
cable. This provides the power and the data for the GeoDesy
FSO PX-P3000E100TP laser head .

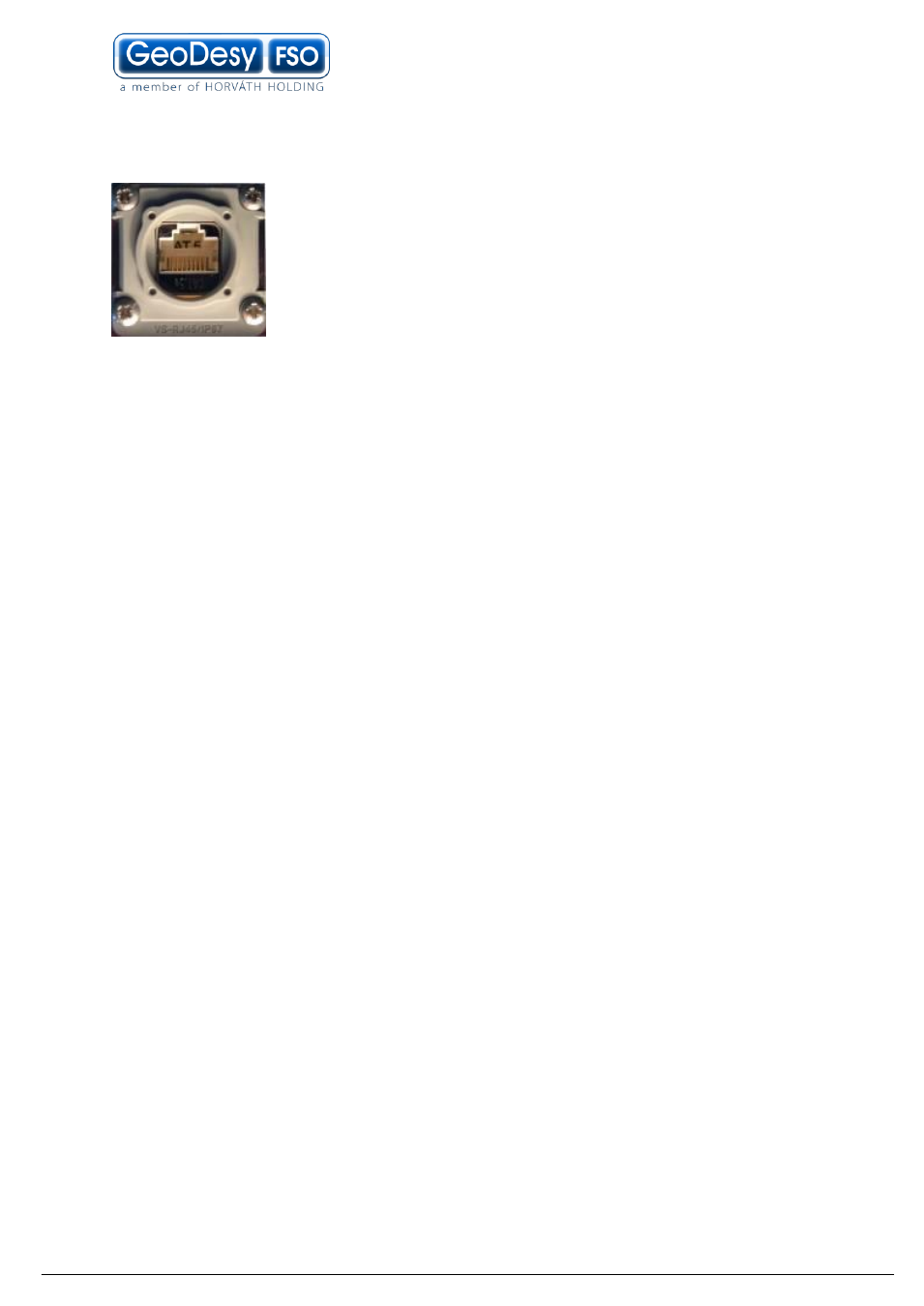

The unit has connection for the management on the bottom of
the Laser unit.
Please see the connection below.
This is the standard IEEE802.3af connector layout.
