Follow the steps below
1. Switch on one of your transmitter on one side, and switch off all the
others.
Switch off the transmitters on the other side too. You can adjust the
transmitters only in the management. Please take a look at the PX-
3000E100TP extra MGM features chapter.(30 page)
You can check which transmitter is in use, in the management (refer to page 30)
with the Local level LEDs of LCD on the back of every transmitter.
Each LED indicates the transmitters are functioning, and transmitting.
2. Move the head with the off switched transmitters until you can get the
biggest incoming light effciency on the other side.
3. Fix the head as hardly as you can!
4. Repeat this with the other head too.
The receiver alignment should be done on both sides; the requirement is some
incoming light from the remote side (at least receive). This alignment will determine
the position of the head and in the position of the receiver. The idea is similar to the
focusing, but the only way to find focus is to move the head. You can check the
incoming light efficiency in two ways. You can use the level on the LCD screen.
On the LCD screen you can see the remote level of the other Laser Head!

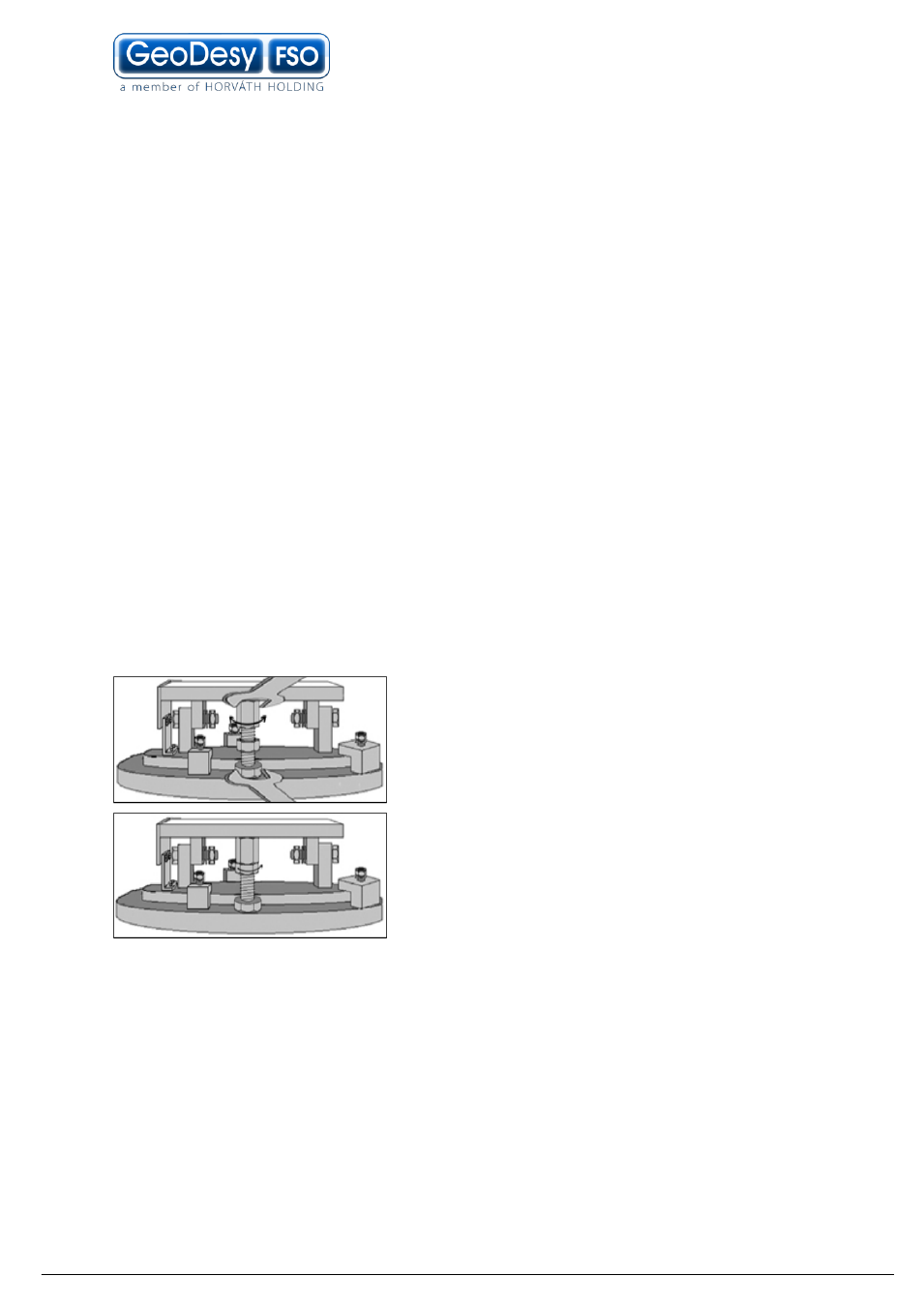

Because of the weight of the heads for the
vertical moving you can use the spacers as it is
shown on the figure. For this moving you need
two wrencches. With one of them you have to
hold the head of the bolt, and with the other you
can turn the thick nuts to lift or loose the plate of
the ABU!
To not enable any movement after the receiver
alignment on the vertical angle of the head and
due to the heat expansion please close the
locking nut under the thick nut, as it shown on
the figure, on both sides.
Please not before the vertical reciver alignment we strongly suggest doing the
horizontal the same way as it is written above.
