The amount of pressure on the cable can be varied simply by loosening the thumb nut, mov-
ing the clamp arm lever to the right or left; as required, and tightening the thumb nut.
As more experience is gained using the machine, the amount of compression required will
become clear. Note: An alternative method of setting the compression force is detailed in the
note at the end of appendix 2.

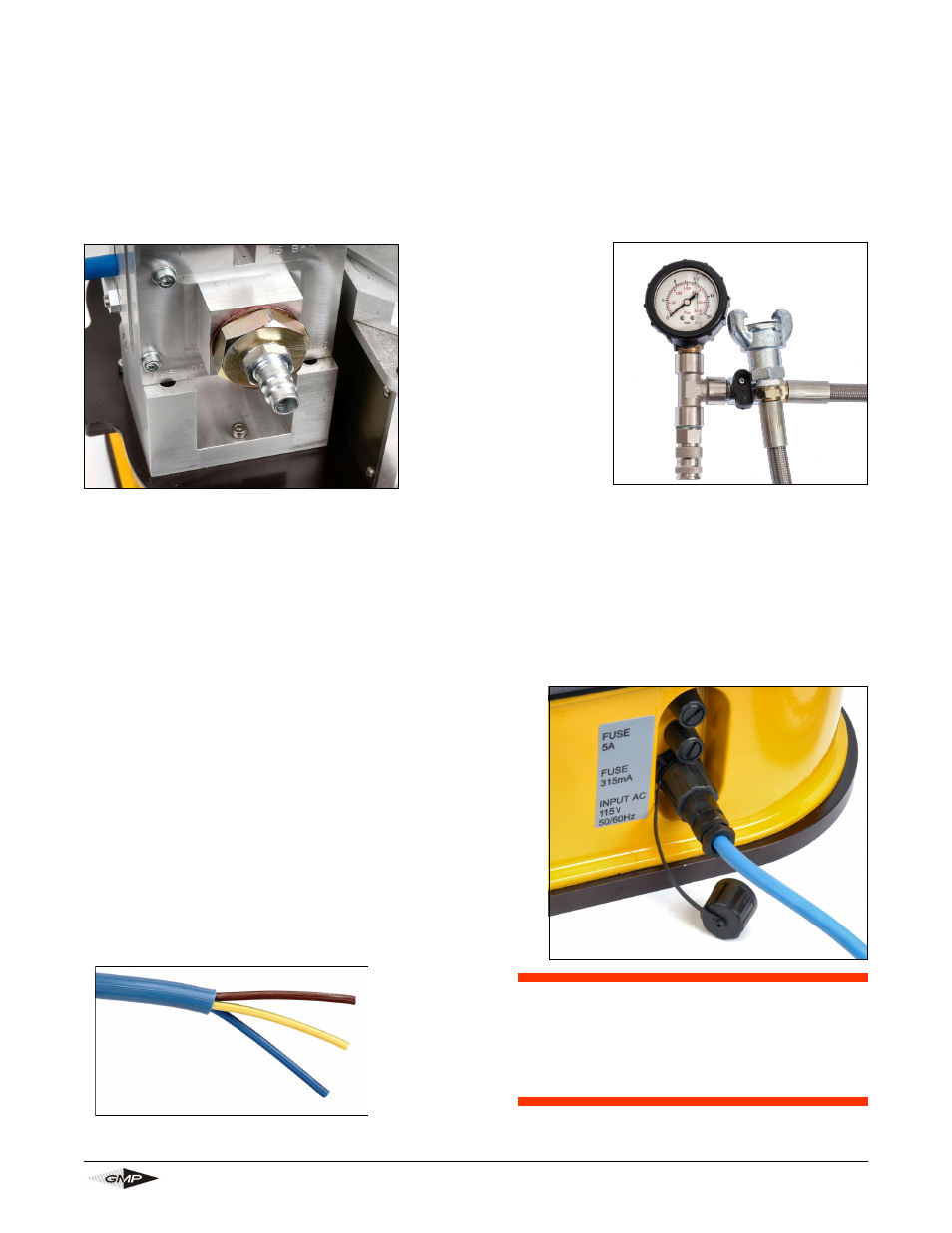

Connect the air supply to the machine.
Supplied with the
Breeze is a rein-
forced braided
supply line with a
300 psi pressure
gauge, ball type
shut off valve and
a quick discon-
nect female cou-
pling for connect-
ing to the ma-
chine. A 1/2” twist
-lock claw hose coupling is provided to connect
to your compressor.
Connect the electrical supply to the machine.
The machine is supplied complete with an electrical
supply lead and a NEMA 5-15 plug.
The machine is now ready to start the cable installation.
The Breeze is designed to operate with either 115 volts or 220 volts AC. The default setting
for the Americas is 115 volts. To change the voltage setting, locate the voltage switch under
the silver plug located to the left of the fuses. Looking into the hole with a flashlight, position
the switch to the desired voltage.
Brown (Live)
Yellow & Green
(Earth)
Blue (Neutral)
If the connecting plug on the power lead to the gen-
erator/ (or supply) supplied with the Breeze machine
is unsuitable and requires replacement, the new
plug must be correctly connected observing the col-
or codes as shown below.
It is the responsibility of the user to
ensure that the connections meet
the electrical regulations for the rel-
evant country.
The air inlet to the machine is male
fitting for a quick release coupling.
