a. Close the air box.
b. Close the cable guide set top cover.
c. Release the measuring wheel and allow it to rest on the cable.
d. Close the transparent cover. (note: This cover must be closed in order for the machine to
operate)
Close the drive roller assembly onto the cable as follows:

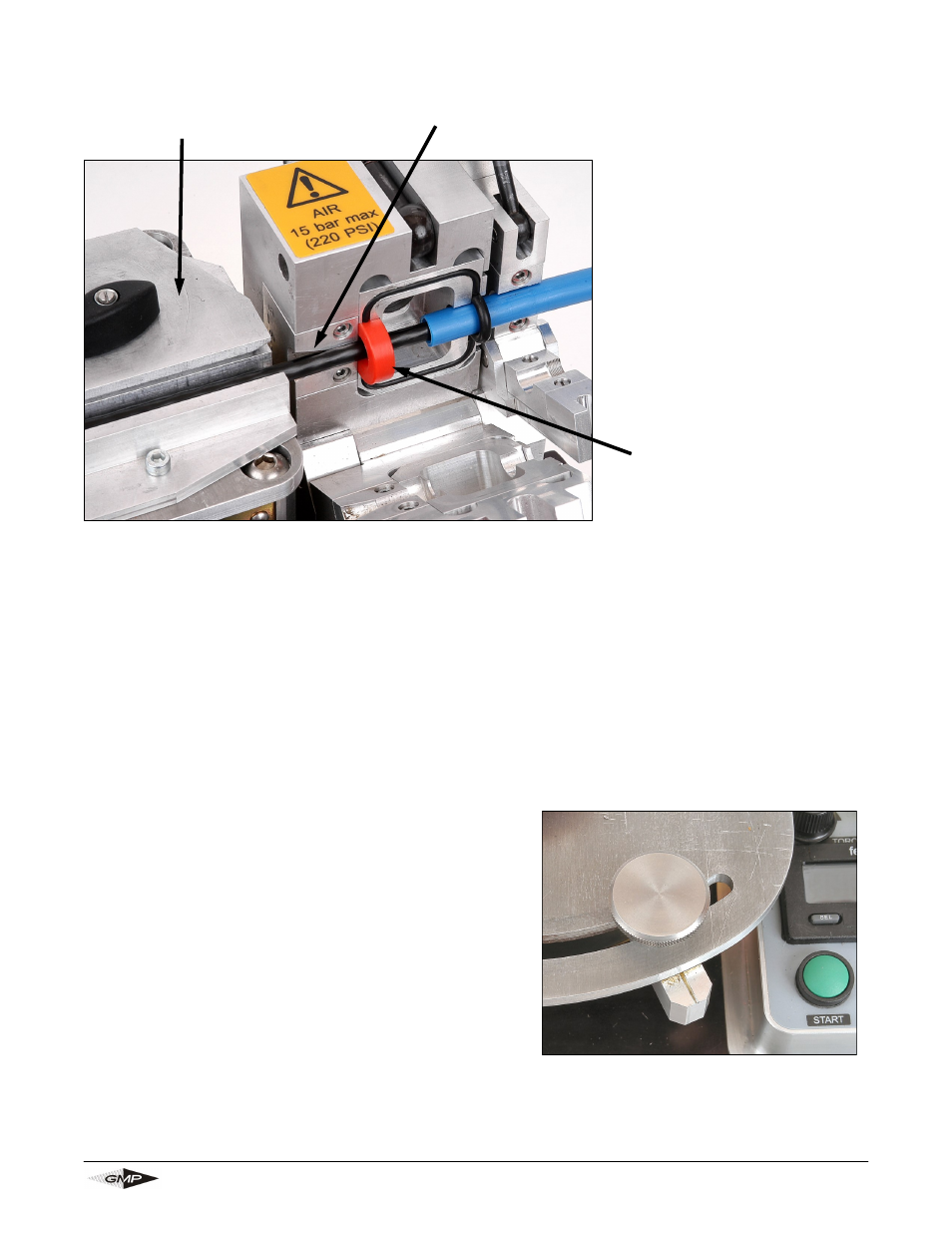

The photo shows the drive roller close thumb nut slightly loosened. (The assembly is free to
move).
This thumb nut is fixed to the clamp arm lever.
The clamp arm lever controls the position of the roller
assembly.
As the clamp arm is moved to the left, the rollers
move together. When the clamp arm is furthest to the
right, the gap between the rollers is at its widest. Once
the cable has been positioned in the machine the roll-
ers must be closed on the cable in order to drive the
cable. (And to stop the cable being dragged back out
of the machine by any tension in the cable).
Split cable seal
(see appendix 1)
Seal Guide Half
Cable Guide Set top
cover
