Operating instructions for electronic handwheel HKA/HKC
EUCHNER GmbH + Co. KG Kohlhammerstraße 16 D-70771 Leinfelden-Echterdingen Tel. +49/711/75 97-0 Fax +49/711/75 33 16 www.euchner.de [email protected]
Front panel cut-out
9
6,5
M3
R 41
30 28
40
45
∅
60
45
34
24
3,5
∅
63
∅
78
∅
80
∅
60
M3
8,5
∅ 61
∅ 3,4
∅ 72
Handwheel HKC Handwheel HKA

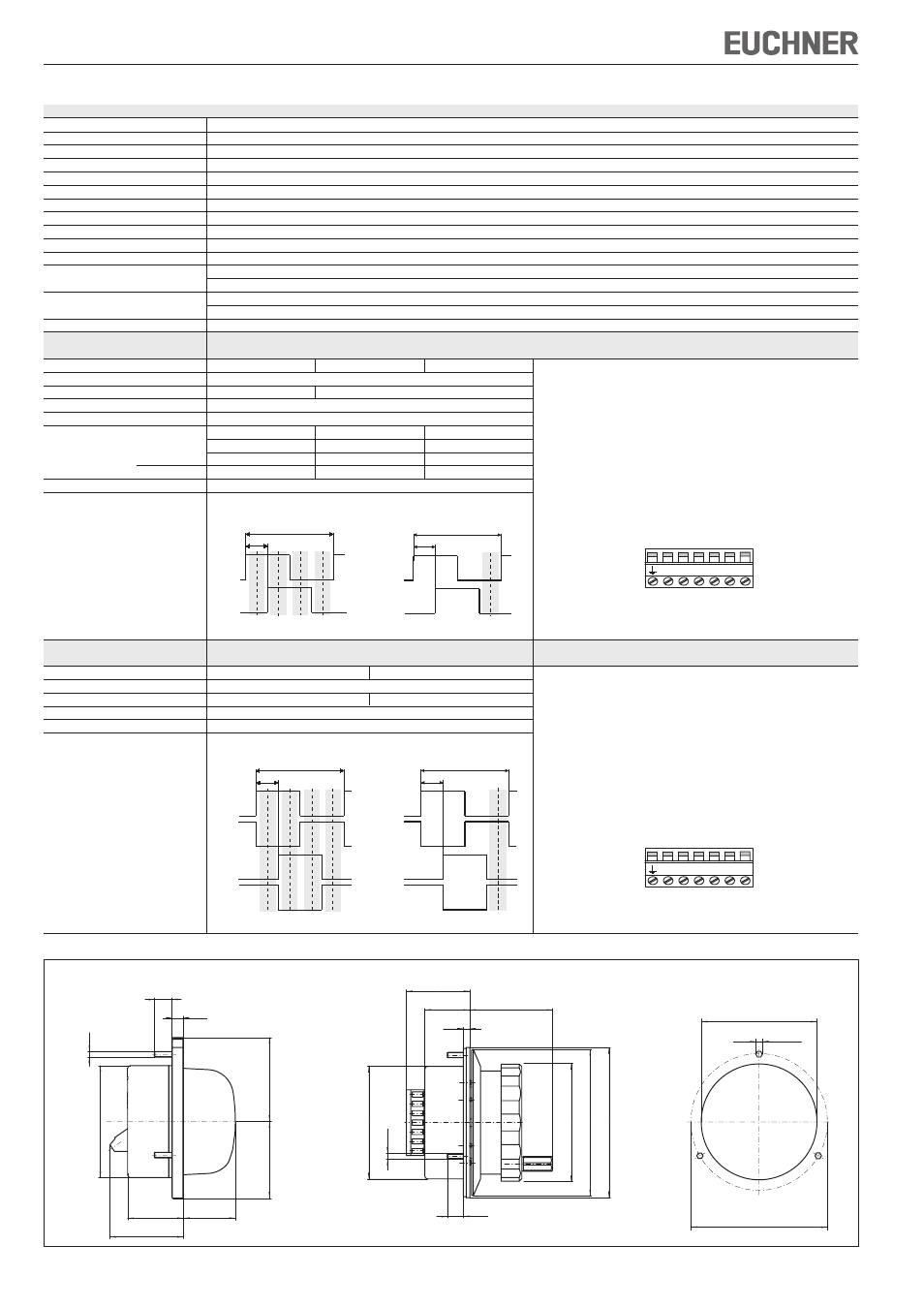

Fig. 2: Dimension drawings of handwheel HKA/HKC
Technical data
Parameters Value
Pulses per revolution 2 x 25 or 2 x 100
Detent positions 100
Housing material Thermoplastic
Weight 0.25 kg
Detent mechanism Magnetic
Shaft loading, axial, max. 25 N
Shaft loading, radial, max. 40 N
Mechanical service life, min. 20 x 10 6 U
Operating temperature 0 °C ... +50 °C
Storage temperature -20 °C ... +50 °C
Humidity, max. 80 % (condensation not permissible)
Degree of protection to the front In accordance with EN 60529 / IEC 529 IP 65
In accordance with NEMA 250-12
Resistance to Vibrations (3 axes) DIN/IEC 68-2-6
vibration Shock (3 axes) DIN/IEC 68-2-27
EMC protection requirements in acc. with CE EN 61000-6-2, EN 61000-6-4
Output circuit
Push-pull
Output stage
G05 G12 G24 Pin assignment
Output signals A, B
Operating voltage U
B
DC 5 V ± 5 % DC 10 ... 30 V
Operating current, no load, max. 80 mA
Output specifications
Output voltage
HIGH (1), min. 4.0 V / 0 mA 4.9 V / 0 mA -
3.4 V / 5 mA 3.9 V / 5 mA -
3.0 V / 20 mA 3.6 V / 20 mA U
B
- 3 V / 20 mA
LOW (0), max. 1.3 V / 15 mA 1.3 V / 15 mA 3 V / 20 mA
Output current per output, max. 20 mA
Output signals
25 pulses 100 pulses
Home position areas Home position area
Output circuit
RS422
Output stage
A05 A12 Pin assignment
Output signals A, /A, B, /B
Operating voltage U
B
DC 5 V ± 5 % DC 10 ... 30 V
Operating current, no load, max. 80 mA
Output specifications In accordance with RS422A
Output signals
25 pulses 100 pulses
Home position areas Home position area
90˚
360˚
A
B
90˚
360˚
A
B
90˚
360˚
A
/A
B
/B
90˚
360˚
A
/A
B
/B
U
B
0V A B /A /B
Screw terminal 7-pole
Wire cross-section
0.08² ... 2.5²
(AWG 28 ... 12)
Tightening torque
max. 0.5 Nm
It is necessary to use
copper conductors with
temperature resistance
of 75°C
U
B
0V A B
Screw terminal 7-pole
Wire cross-section
0.08² ... 2.5²
(AWG 28 ... 12)
Tightening torque
max. 0.5 Nm
It is necessary to use
copper conductors with
temperature resistance
of 75°C
