Operating Instructions ESL
8
Mounting
Caution!
Ì The device is not suitable for use on sliding doors.
Ì When mounting, take care not to trap the cables between the device and the
profile.
Ì Permanently connect the actuator and handle module to the safety guard so
that it cannot be detached, e.g. using non-removable screws.
Important!

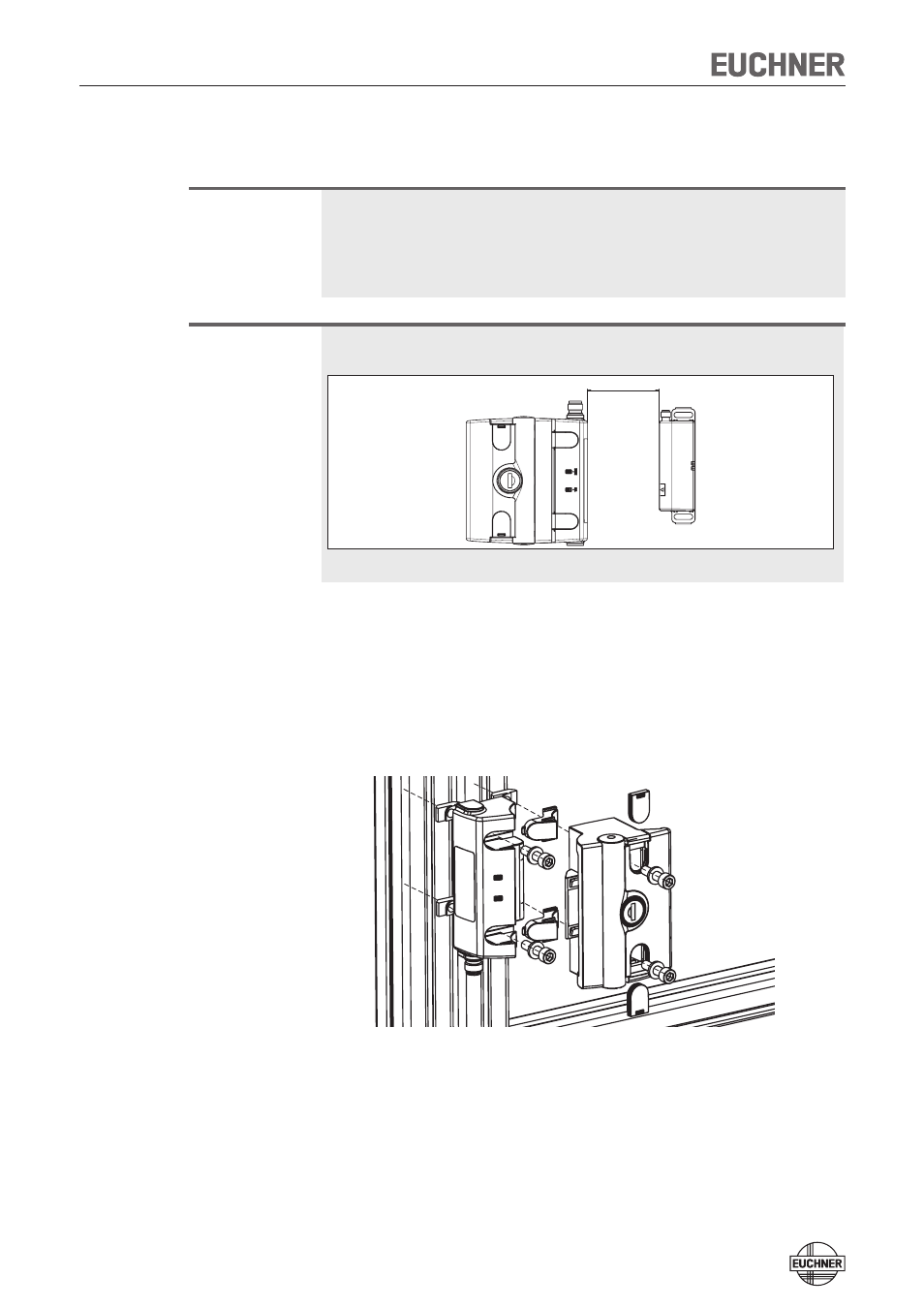

Ì When mounting different transponder-coded safety switches, observe the
stipulated minimum distance to avoid mutual interference.
60
With two-wing hinged doors, one of the two door wings additionally must be latched
mechanically.
1. Fasten the ESL using 4 M6 screws and washers.
¨ Please note that the gap dimension between handle module and interlocking
module is 0 - 3 mm; the max. vertical offset is ± 1 mm.
2. Tighten the screws to a torque of max. 10 Nm.
3. Fit the enclosed cover caps to protect against tampering.
