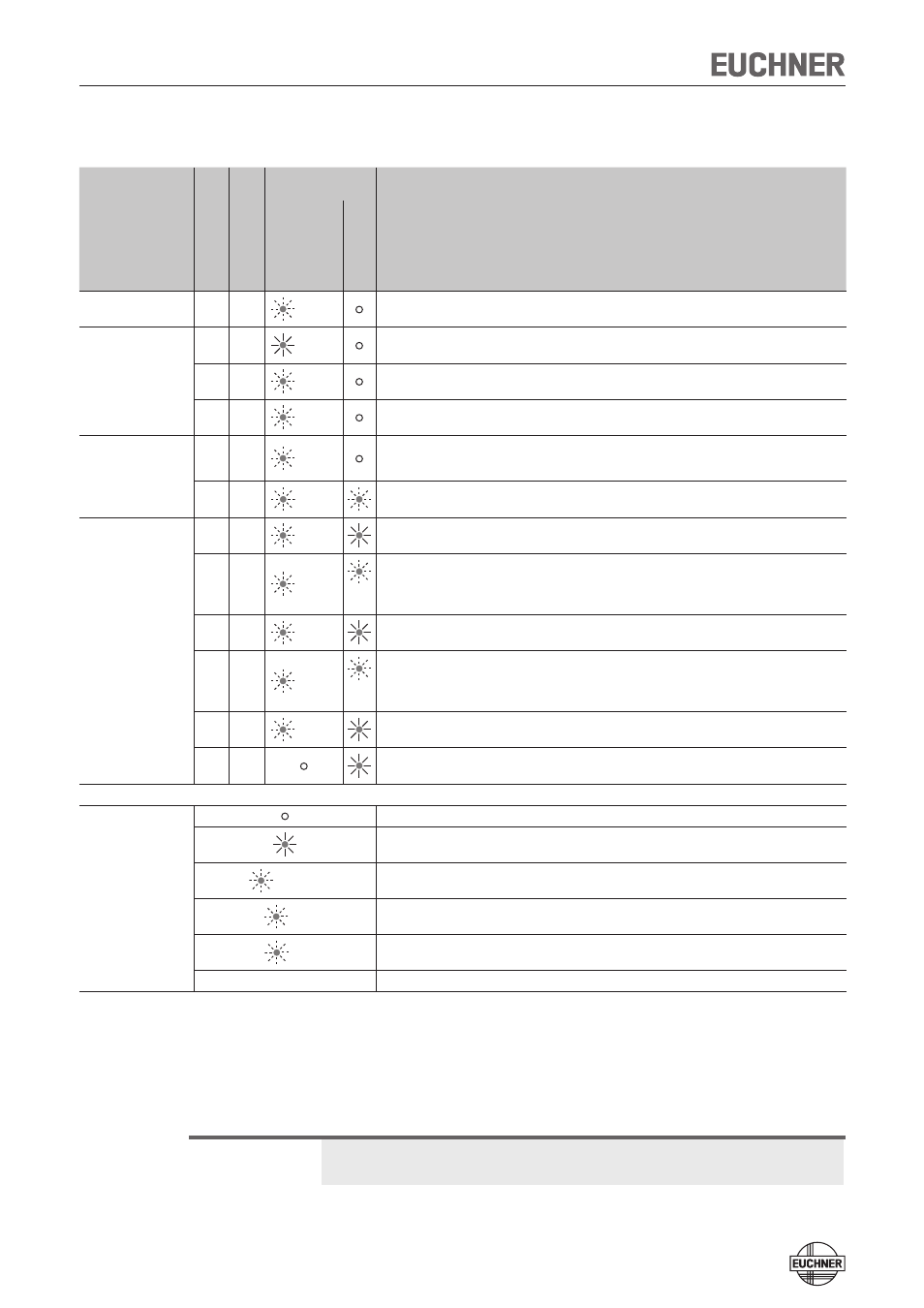

System status table
Operating mode
Handle module/door position Safety outputs FO1A and FO1B
LED indicator,
output
State
ST
ATE (gr
een)
DIA (r
ed)
Self-test X off
5 Hz
(8 s)
Self-test after power up
Normal operation
closed on Door closed
open off 1 x Door open
open off 2 x Door open, no handle module taught (see setup for teach-in operation)
Setup
closed off
ap-
prox.
30 s
Teach-in operation
X off
∞
Positive acknowledgment after completion of teach-in operation
Fault display
X off 1 x Error during teach-in
X off 2 x
invert-
ed
Input error (e.g. missing test pulses, illogical switch state from previous switch)
closed off 3 x Faulty handle module (e.g. error in code or code cannot be read)
X off 4 x
invert-
ed
Output error (e.g. short circuits, loss of switching ability)
X off 5 x Blocked handle module
X off Internal fault (e.g. component faulty, data error)
Key to symbols
LED not illuminated
LED illuminated
5 Hz (8 s) LED flashes for 8 seconds at 5 Hz
3 x LED flashes three times
∞
LED flashes continuously
X Any state
After the cause has been remedied, faults can generally be reset by opening and
closing the door. If the fault is still displayed afterward, use the reset function or
briefly interrupt the power supply. Please contact the manufacturer if the fault could
not be reset after restarting.
Important!
If you do not find the displayed device status in the System status table, this indi-
cates an internal device fault. In this case, you should contact the manufacturer.
