Operating Instructions ESL
7

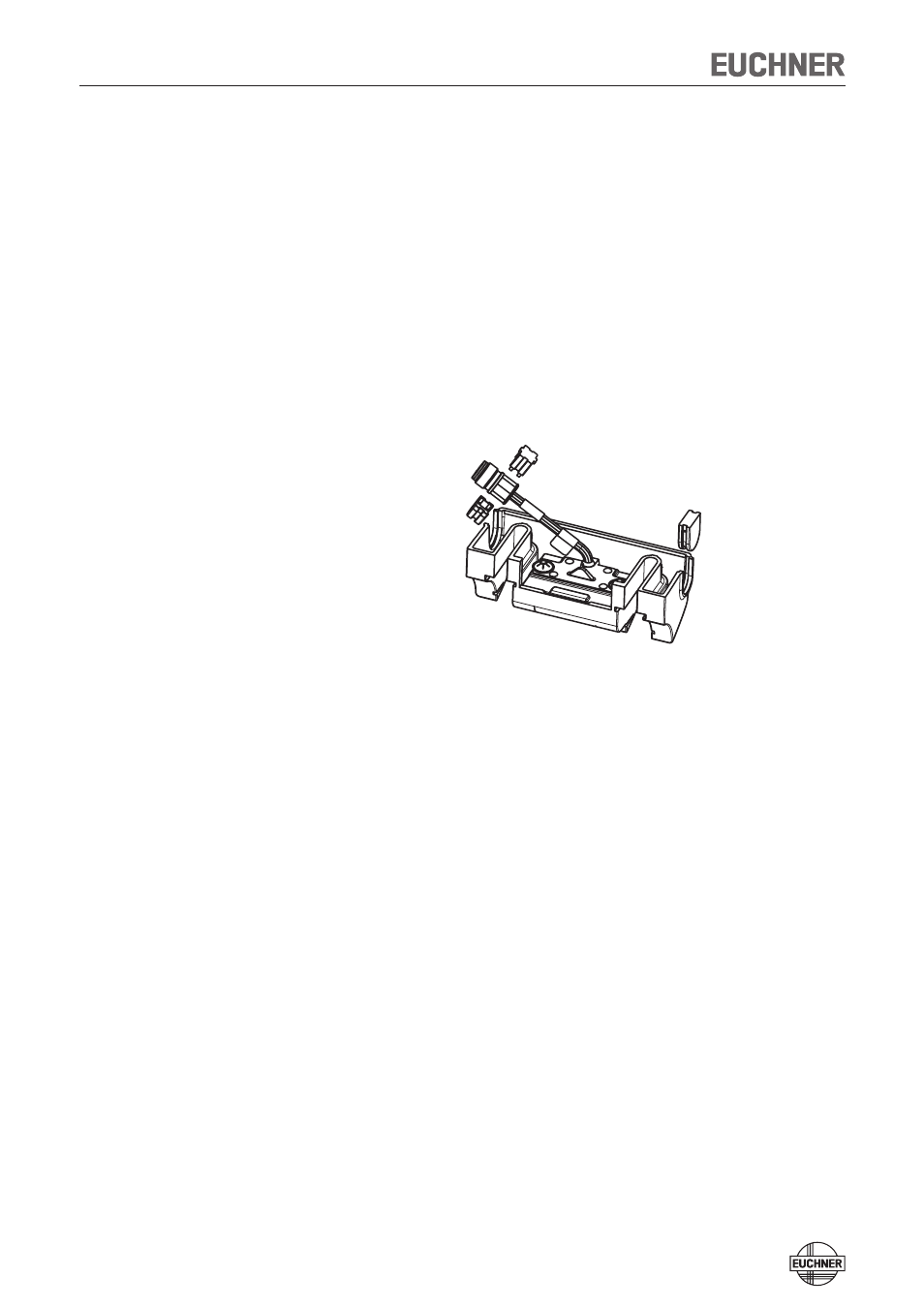

Changing the connection
The plug connector position can be adapted to suit the installation. This change
must be performed before assembly.
1. Press the plug connector with the plastic inserts out of the profile slot.
¨
To adjust only the cable exit for angled plug connectors, align the plug and the
inserts accordingly and press the plug back into the profile slot.
2. Remove the connection cap on the opposite side.
3. For angled plug connectors, align the plug and the inserts accordingly.
4. Press the plug into the profile slot on the opposite side.
5. Seal the other opening with the connection cap.
