Basic assembly – ETC Source Four CE Mini User Manual
Page 6
3

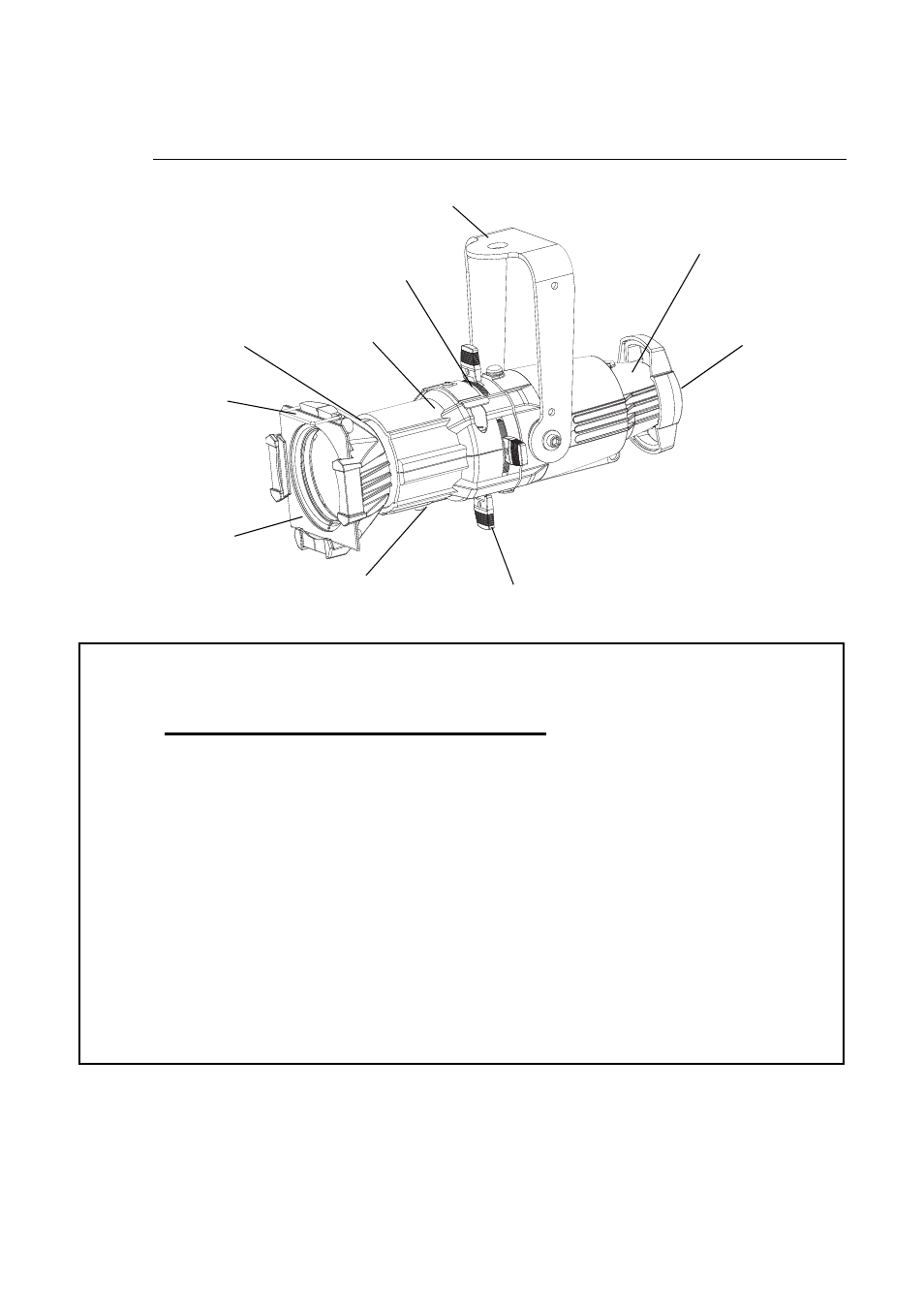

Basic Assembly
Shutter Barrel
Gobo Pattern
Holder Slot
Colour frame
retainer clip
Yoke
Colour frame
Shutters x4
Lens tube
Lamp housing
Lamp housing
knob
Beam focus
knob
INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS
IMPORTANT SAFETY INSTRUCTIONS
Lighted lamp is HOT!
WARNING - To reduce the risk of FIRE, ELECTRIC SHOCK, EXPOSURE TO
EXCESSIVE UV RADIATION, OR INJURY TO PERSONS:
1) Turn off/unplug and allow to cool before replacing lamp.
2) Lamp gets HOT quickly! Do not turn power on again before the fixture is
reassembled.
3) Do not touch hot lens, guard, or enclosure.
5) Do not use in proximity to normally flammable materials.
6) Use only with a lamp rated at 50W or less.
SAVE THESE INSTRUCTIONS
