Color frame retaining clip usage, Focus knob positioning, N o t e – ETC Source Four CE HID PARNel User Manual
Page 6
English
6 Source Four HID PARNel CE
Color frame retaining clip usage
The color frame holder is equipped with a spring-loaded retaining clip that prevents color frames and accessories
from falling out. Make sure the Source Four HID PARNel has the color frame retaining clip in the locked position
when hanging.(
N o t e :
Make sure to use colorframes or accessories with a 17cm inside diameter.
1.
Release the retaining clip by pushing it sideways. The retaining clip opens.
2.
Insert the color frame.
3.
Press the retaining clip down until it locks.
Focus Knob Positioning
To adjust the Focus knob tension, loosen or tighten the Focus knob screw.
C A U T I O N :
The focus knob does not rotate 360º. Do not attempt to exceed rotational limit.
Overtightening may result in damage or breakage of the knob.

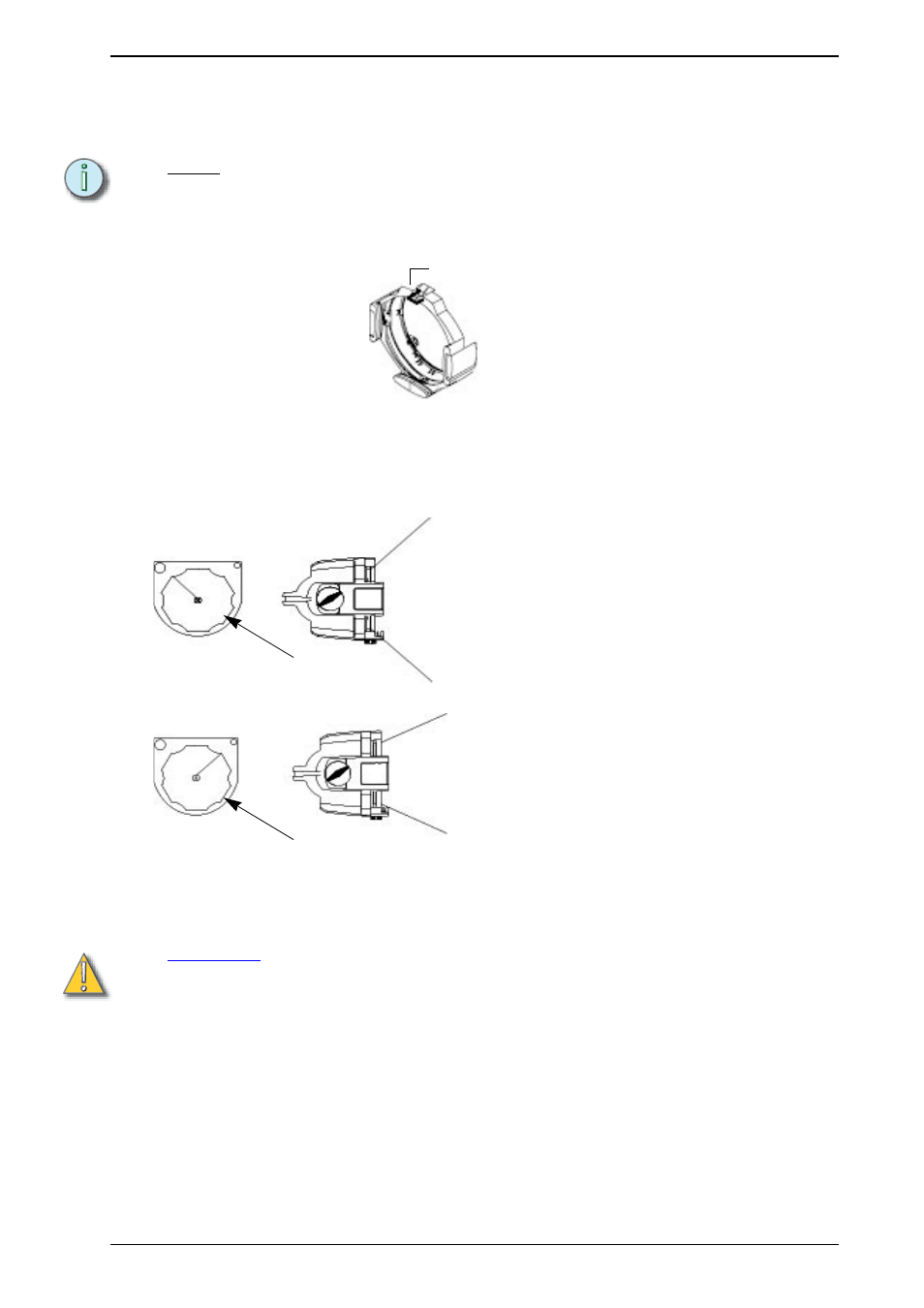

Figure 2
Retaining clip in
the locked position
45º field angle
Focus knob in
flood position
Focus knob screw
Focus knob in
spot position
Focus knob screw
25º field angle
