10 Source Four HID PARNel CE
Spare parts list

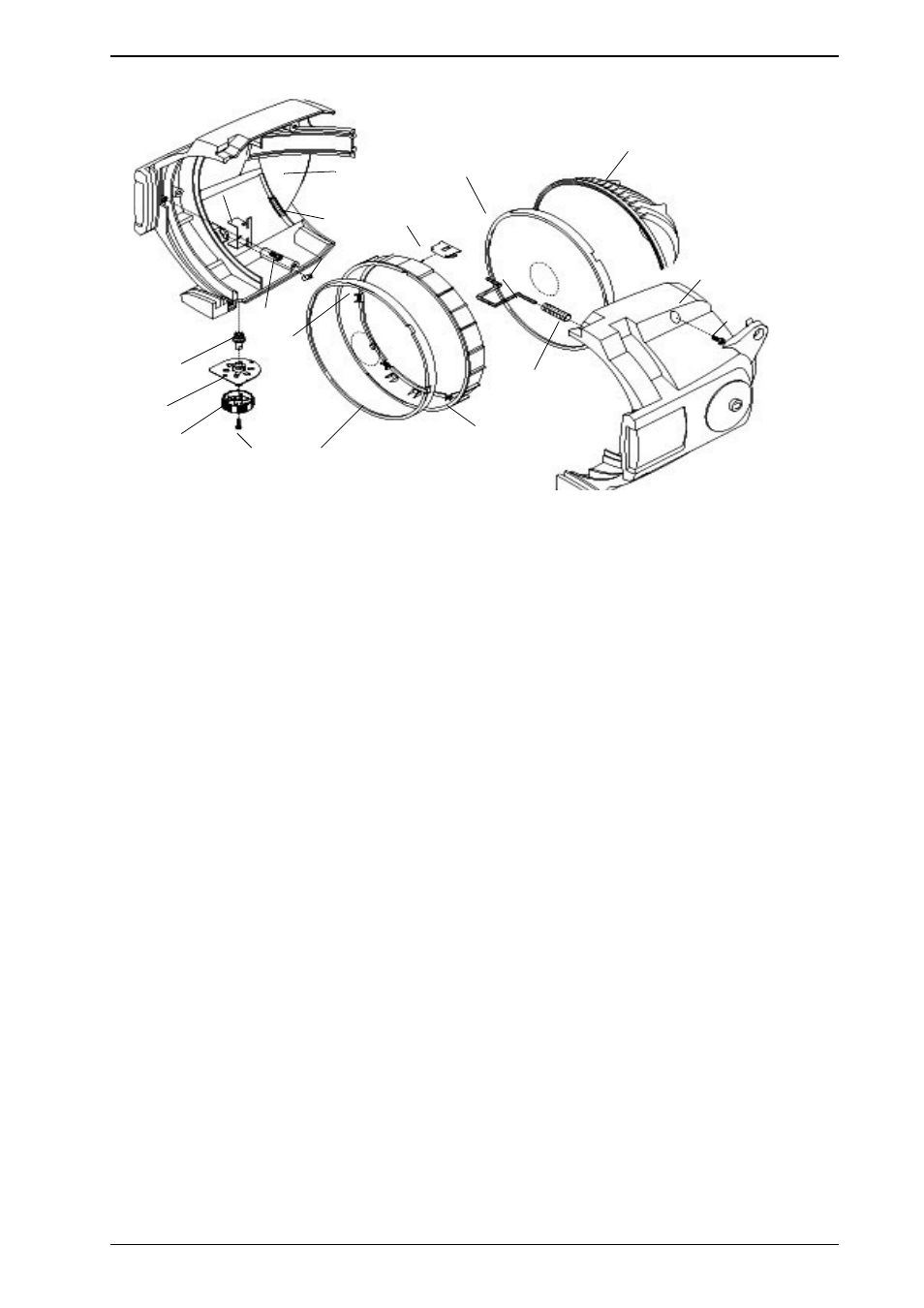

Source Four HID PARNel CE Housing Assembly
Reference
Number Part Number Description Quantity
Required
1 7061A3005 Gel retainer clip 1
2 7061A3013 Spring clip rotator 1
3 7061A3014 Reflector, painted black 1
4 7061A3014-1 Reflector, painted white 1
5 7061A3025 Barrel, painted black 1
6 7061A3025-1 Barrel, painted white 1
7 70612019 Source Four PAR rivet assembly, black 1
8 70612019 Source Four PAR rivet assembly, white 1
9 70613029 Rotator pressure clip 1
10 HW492 Screw, 10-32 X 5/8, PhPH Taptite 3
11 7061A4001 Pad, silicon reflector mount 2
12 70614012 Lens rotator, black 1
13 70614012-1 Lens rotator, white 1
14 7061A4029 Lens stop 1
15 7061A4020 PARNel lens pad 4
16 7061A4013 Focus knob bushing 1
17 7061A4014 Focus knob gear 1
18 7061A4015 Focus knob 1
19 HW2154 Screw, PPH, 6-19 X 1/2L, 48-2 Plastite 1
20 7061A4010-2 PAR zoom wave/stippled lens 1
21 7061A4010-1 PAR zoom wave/clear lens 1
22 HW750 Spring, retainer 1
23 HW4145 Screw, 10-32 X 3/8, PhPH Taptite, BO 1
6
7
11
10
9
5
4
3
2
1
13
14
8
12
21
20
19
18
17
16
15
22
23
