1.14.8. Connecting the DC Output Cable

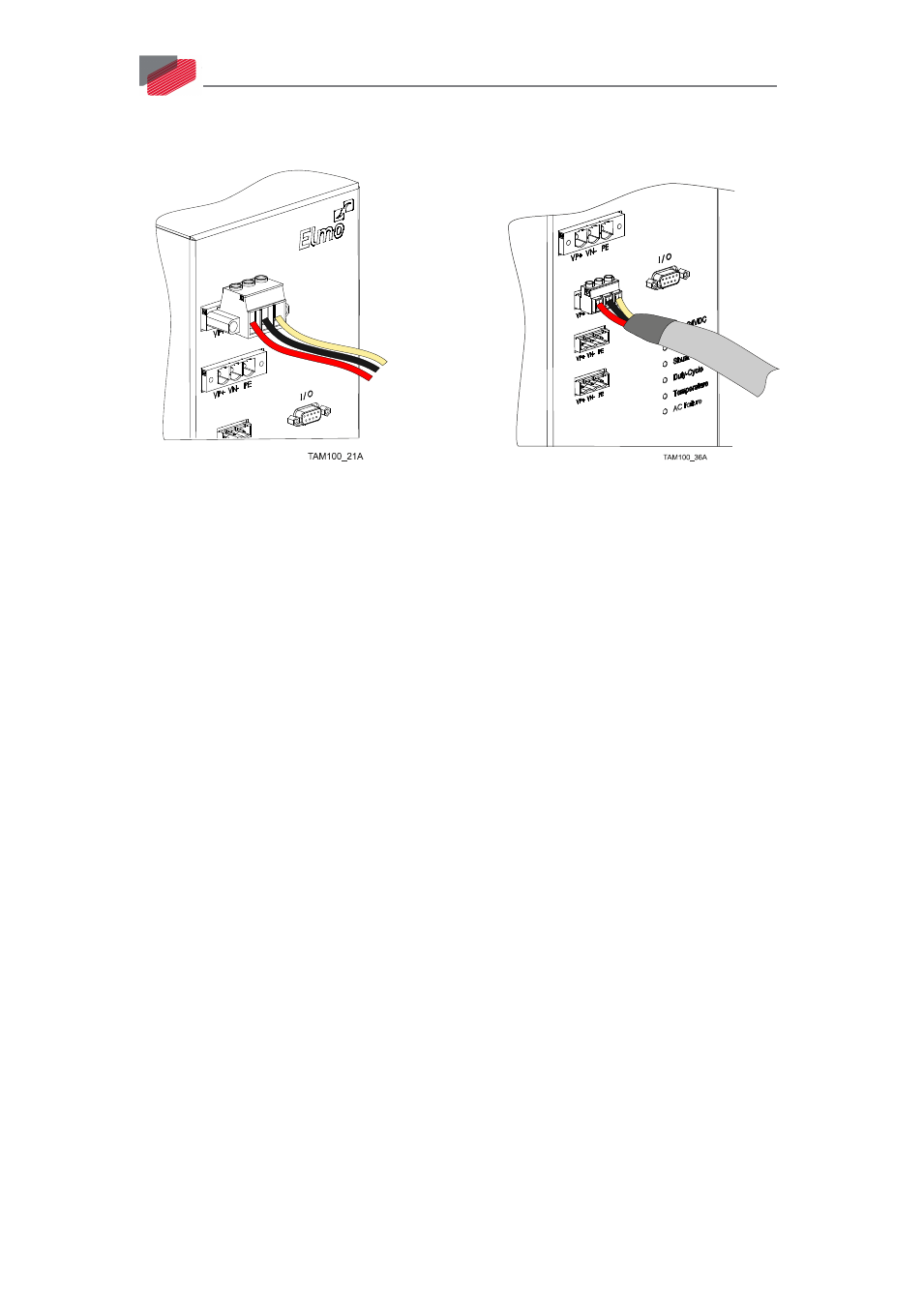

High Current Connection Medium Current Connection
Figure 11: DC Output Connections
To connect the DC output cable (Figure 11)
1.
For best noise immunity, a shielded and twisted cable is recommended (not mandatory)
for the DC output cable. A 3-wire shielded cable should be used. The gauge is
determined by the actual current consumption of the drives being fed by the relevant DC
output.
2. Connect the three wires of the DC output cable to the DC output connector of the
Tambourine 100:
a. Connect the DC leads to the VP+ and VN- terminals of the DC output connector.
b. For safety requirements, the third green/yellow-wire must be connected to the
protective earth (PE terminal). Connect the Protective Earth wire to the PE terminal on
the DC output connector.
3. When the Tambourine 100 is fed from an isolation transformer, from the safety and EMI
aspects, the VN- junction must be connected to PE junction.
