Tambourine 100 Power Supply
MAN-TAM-100IG (Ver. 1.101)
|| www.elmomc.com
16
Table of Contents
1.13. I/O Port
Pin Signal Pin Positions
1 IN1: Main_Enable / Disable
2 IN2: VDCBUS Disscharge
3 Not in use
4 OUT1: Temperature forewarn alert
5 OUT2: AC_phase failure alert
6 INRET1: Main Enable / Disable RET
7 INRET2: VDCBUS Disscharge RET
8 OUTRET1: Temperature_forewarn alert_RET
9 OUTRET2: AC_phase failure alert_RET

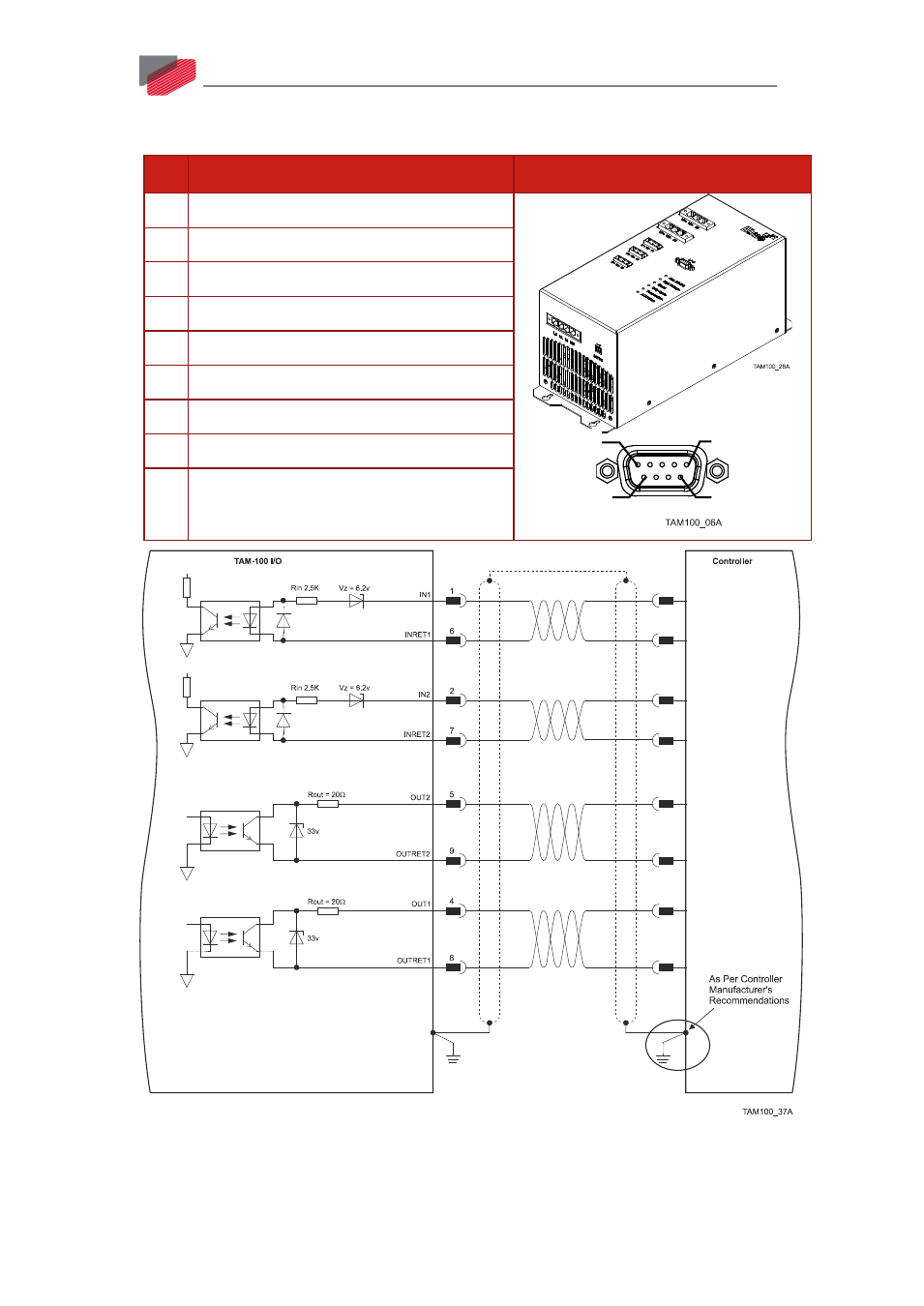

Figure 2: TAM 100 I/O Connector
1 5
9 6
