1.12. Pinouts
The Solo Guitar Absolute Feedback has six connectors (in the connectors version).
1.12.1. Connector Types for the Solo Guitar Absolute Feedback
No. Pins Type Port Function
9 5.08 mm Pitch (Figure 3) Power + Motor Power
2
(+seven
wires)
5.08 mm Pitch (Figure 4)
14 AWG (M1, M2, M3, VP+, PR)
16 AWG (PE)
Wires
Power + Motor Power
4 2.54 mm Pitch J6 Motor (Brake, PTC)
20 2.54 mm Pitch J7 I/O
12 2.54 mm Pitch J3 Communication
16 2.54 mm Pitch J11 Main Feedback
16 2.54 mm Pitch J5 Auxiliary Feedback

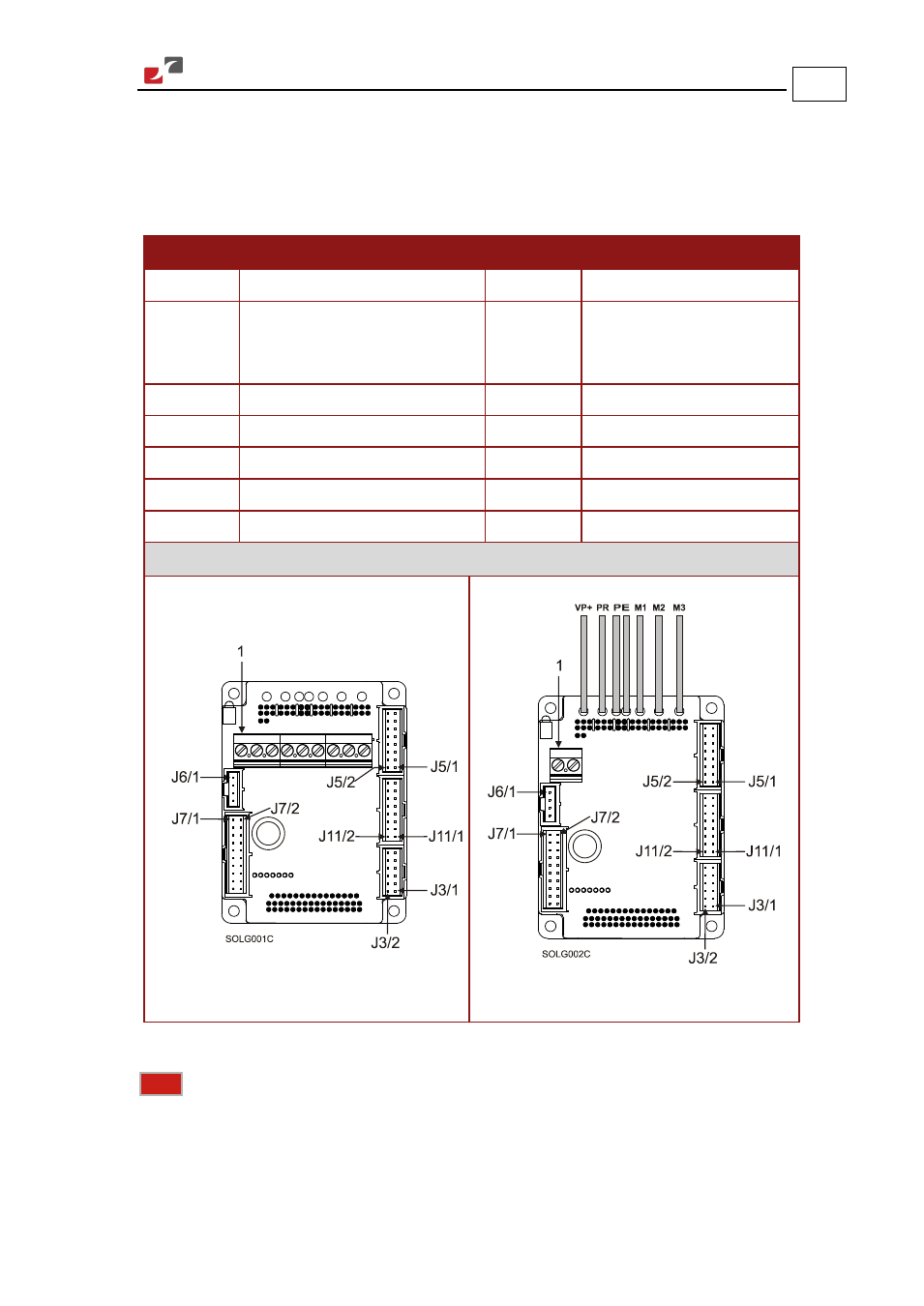

Connector Locations
Figure 3
Figure 4
Table 1: Connector Types for the Solo Guitar Absolute Feedback
Note: Throughout this chapter, there are pairs of diagrams of the Solo Guitar Absolute
Feedback. The diagram on the left is the Solo Guitar Absolute Feedback with connectors and
the diagram on the right shows the product with wires.
