3.4.1. Mounting on a DIN Rail
At the top rear of the Harmonica, a horizontal groove lets you quickly and easily snap the drive
onto a DIN rail in your work area.
To mount the Harmonica on a DIN rail:
1. At the back of the Harmonica, push the bottom mounting strip down fully.
2. Tilt the Harmonica back towards the top part of the DIN rail.
3. Press the Harmonica down to a vertical position until it clicks onto the DIN rail.
4. Push the bottom mounting strip one notch up to lock the Harmonica on the rail.
HAR_DIN_Rail_1

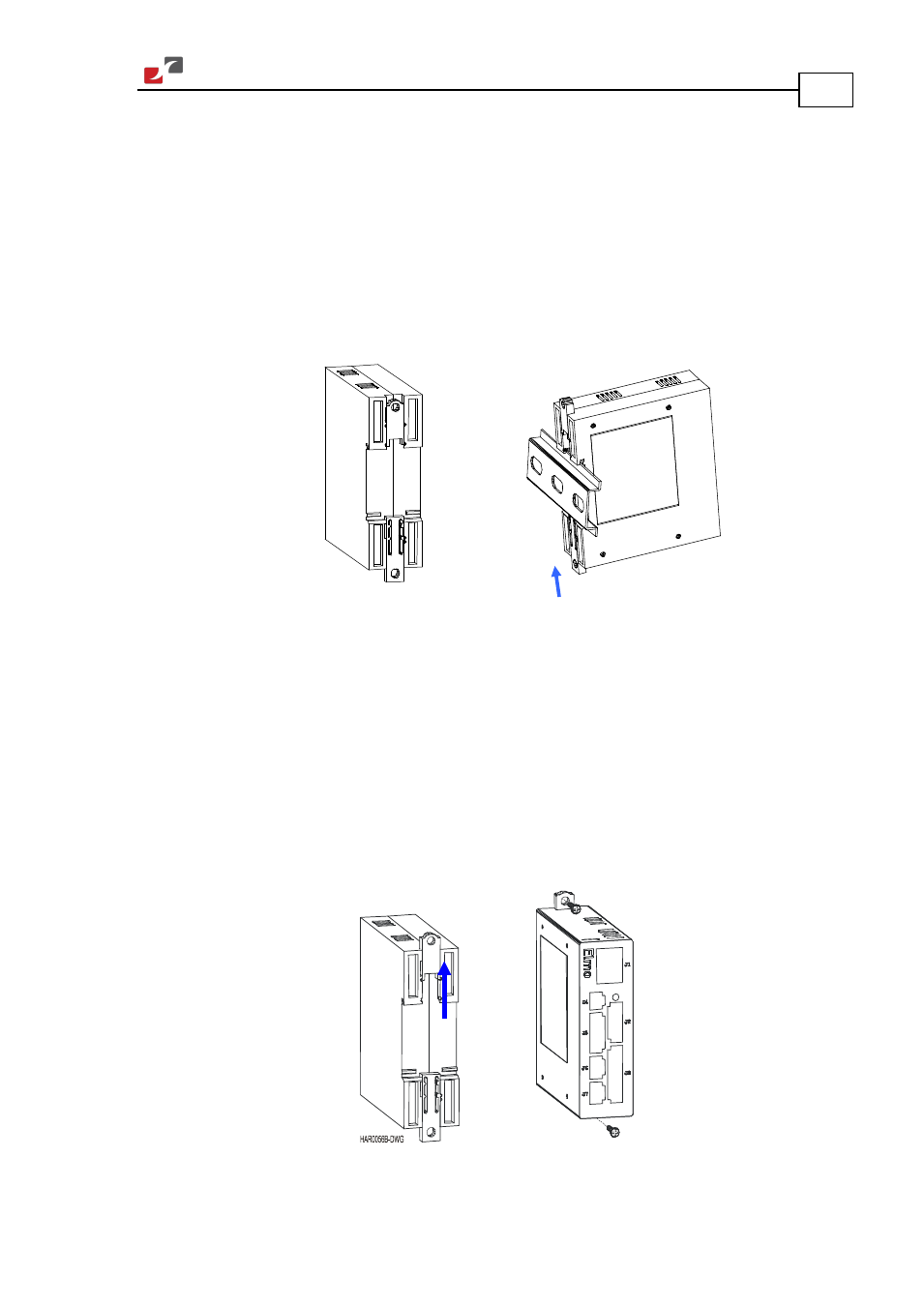

Figure 4: Mounting the Harmonica on a DIN Rail
3.4.2. Mounting Directly onto a Wall
The mounting strips at the back of the Harmonica enable you to screw the drive directly into a
wall.
To mount the Harmonica onto a wall:
1. On the back of the drive, fully extend the top mounting strip so that the end with the holes
is exposed. (The bottom strip is delivered already extended.)
2. Mount the Harmonica vertically onto the wall with two M3 or M3.5 round head screws,
one through the top hole of the mounting strip and one at the bottom.
Figure 5: Extending the Mounting Strips and Attaching the Screws
