The P/N number at the top gives the type designation as follows:
4. Verify that the Harmonica type is the one that you ordered, and ensure that the voltage
meets your specific requirements.
3.3. Assembling the Heatsink
When an external heatsink device is required, attach it with four screws to the left side of the
Harmonica, as depicted in the following diagrams.

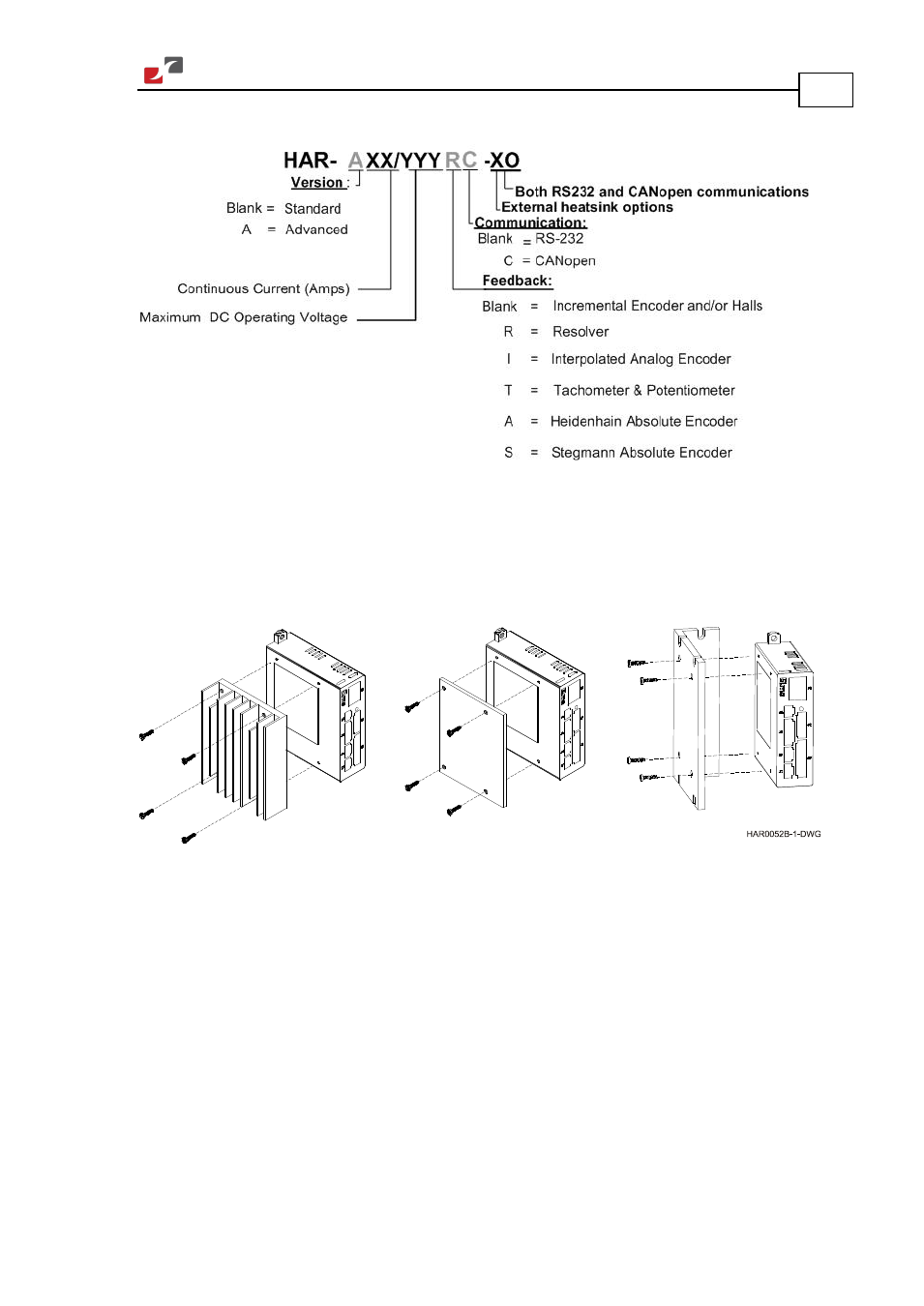

Figure 3: Attaching the Heatsink
To mount the heatsink, use screws designed for fastening to plastic with a 2.00 mm hole
diameter and a maximum 7.5 mm depth (such as EJOT
® PT ® K50).
Detailed heatsink drawings can be found on page 63.
3.4. Mounting the Harmonica
The Harmonica has been designed for two standard mounting options:
• Mounting on a DIN rail
• Attaching directly to the wall with screws
