Caution – Elkhart Brass Sidewinder RF 8494 User Manual
Page 8
Page 5
1. Primary Transmitter
The Sidewinder RF has two joystick transmitter options. Either joystick transmitter can be
used and will override the handheld transmitter.
81498001 Joystick Transmitter
(Figure 3) The RF joystick is suitable for
mounting inside the apparatus cab. The joystick
controls all four monitor functions plus
oscillation. Up/Down and Left/Right monitor
functions can be operated simultaneously. The
water valve is controlled with a trigger switch on
the front of the joystick. The water valve can
also be locked open by activating the button
located on the enclosure top. Nozzle pattern is
changed using the rocker switch on the top of
the joystick. The monitor direction is changed by
moving the joystick in the desired direction.
Oscillation is programmed by using the joystick
in conjunction with the oscillate button.

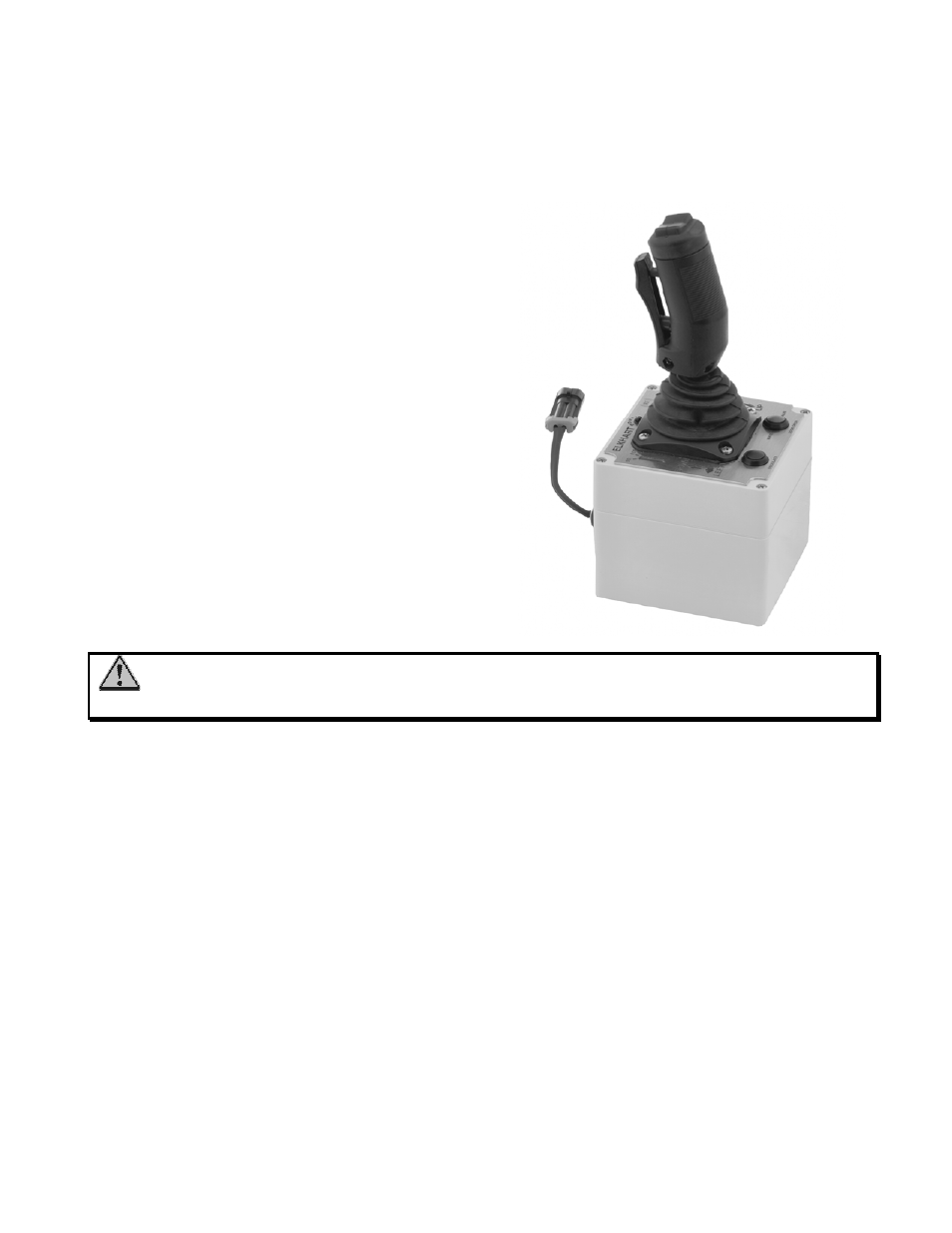

Figure 3
81498001 Joystick Transmitter
Caution:
Joysticks are not environmentally sealed. They are meant for in cab use
only. Use outside of cab will void the warranty coverage.
