Quick Attack Pkg 1 Install Guide:
Button Press Logic
4
BUTT
ON LOGIC
JOYSTICK

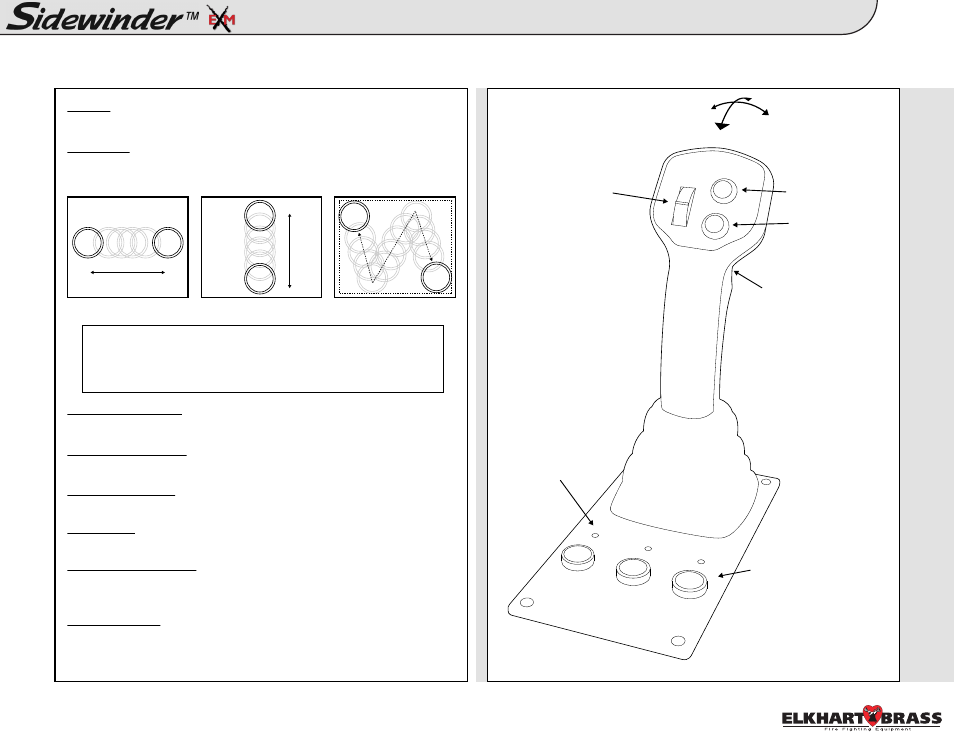

Button Press Logic: Joystick Joystick Layout:
Up
Down
Right
Left
AUX
OSC
Nozzle Pattern
• Fog
• Stream
Valve Position (Trigger)
• Open (Pull)
• Close (Release)
Open
Close
Preset
To Stow
To Oscillate
Left, Right, Up, Down
Fog & Straight Stream
Valve Open & Close
Valve Auto Travel
To Change Valve Preset
Hold and until monitor begins to stow.
Press the button at both extremities of the desired oscillation
pattern.
NOTE: You can manually control nozzle position while in a single
axis oscillation. Example: Up and Down will allow you to manually
control the vertical axis while in a horizontal oscillation. Any
direction in a two axis oscillation will stop the oscillation.
To auto travel OPEN, hold the button, then press , and
release both. The valve should fully open automatically. To CLOSE,
hold the button, then press , and release both.
Open or close the valve to the desired position. Press and hold the
button until the preset light blinks (approx 10 seconds).
These function normally
These function normally
These function normally
Valve Preset
Opens or closes valve to a predetermined position
Horizontally Vertically Two Axis Oscillation
Valve Position Buttons
Valve Position LEDs
98326010 Rev. A
