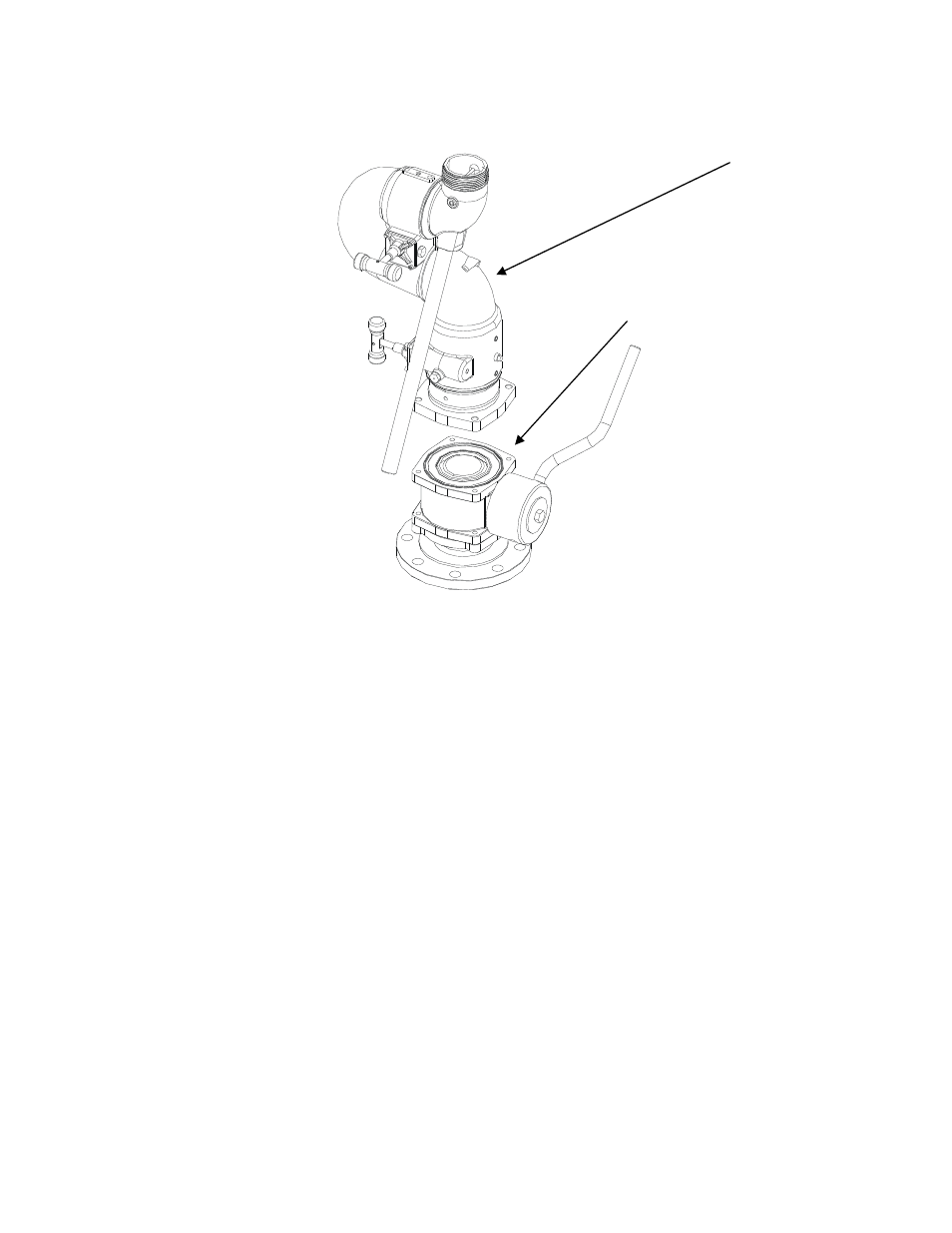

Upper Portion of the Monitor
Valve Body
Figure 8
• Lift the valve body off the monitor base, and remove both the EB30
seat from above the valve and the 8593 seat and brass retainer
from the bottom of the valve. Visually inspect the two seats to
determine if any damage has occurred on the sealing surfaces.
Discard the seats if damage is found.
• Remove the pivot bolt from the valve body, and place the handle in
the open position so that the valve ball may also be removed.
Visually inspect the ball to determine if any damage has occurred
such as surface scratches. Discard the ball if damage is found.
(See Figure 9)
• Place the existing or new ball in the valve body and replace the
pivot bolt. Apply Loctite® #242 to bolt threads. (See Figure 9)
