Elkhart Brass Copperhead 8593-IV User Manual
Page 10

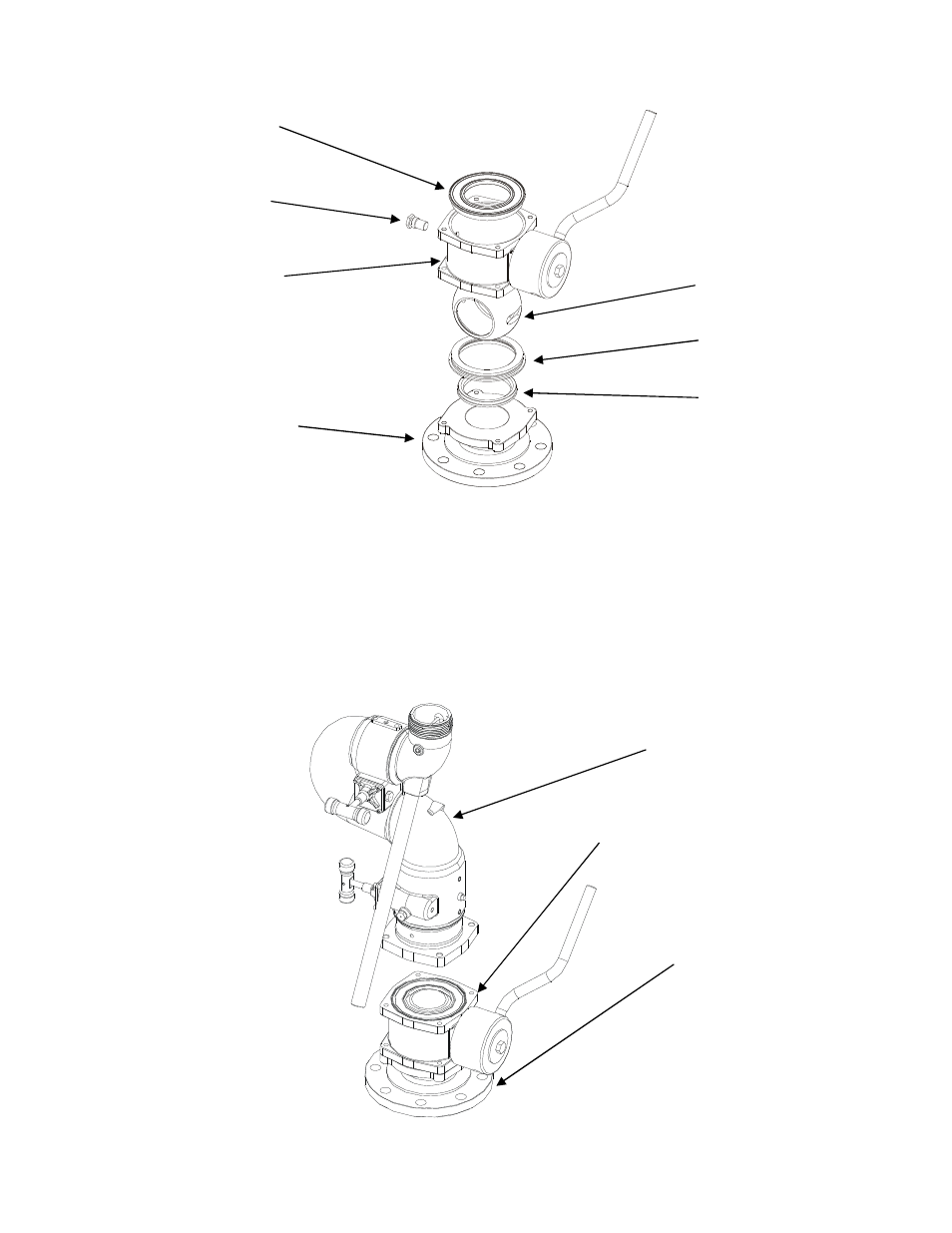

Figure 9
• Place the existing or new seats in the valve body and then place
the valve body back on the monitor base. Carefully place the upper
portion of the monitor onto the valve body. (See Figure 10) NOTE:
The upper portion of the monitor will not be fixed to the lower
part of the monitor until the four hex bolts are fastened. Care
should be taken when handling the monitor.
Upper Portion of the Monitor
Valve Body
Monitor Base
Figure 10
Pivot Bolt
EB30 Seat
8593 Seat
Valve Body
Monitor Base
Brass Retainer
Valve Ball
