actuator shaft, then replace the stop plate on the actuator shaft.
Then rotate the actuator shaft so that the ball is in the closed
position. (See Figure 4)
• Ensure that the bearing break is lined up with the slot in the handle
adapter. If the parts are not properly aligned during installation the
handle will bind up during operation. (See Figure 4)

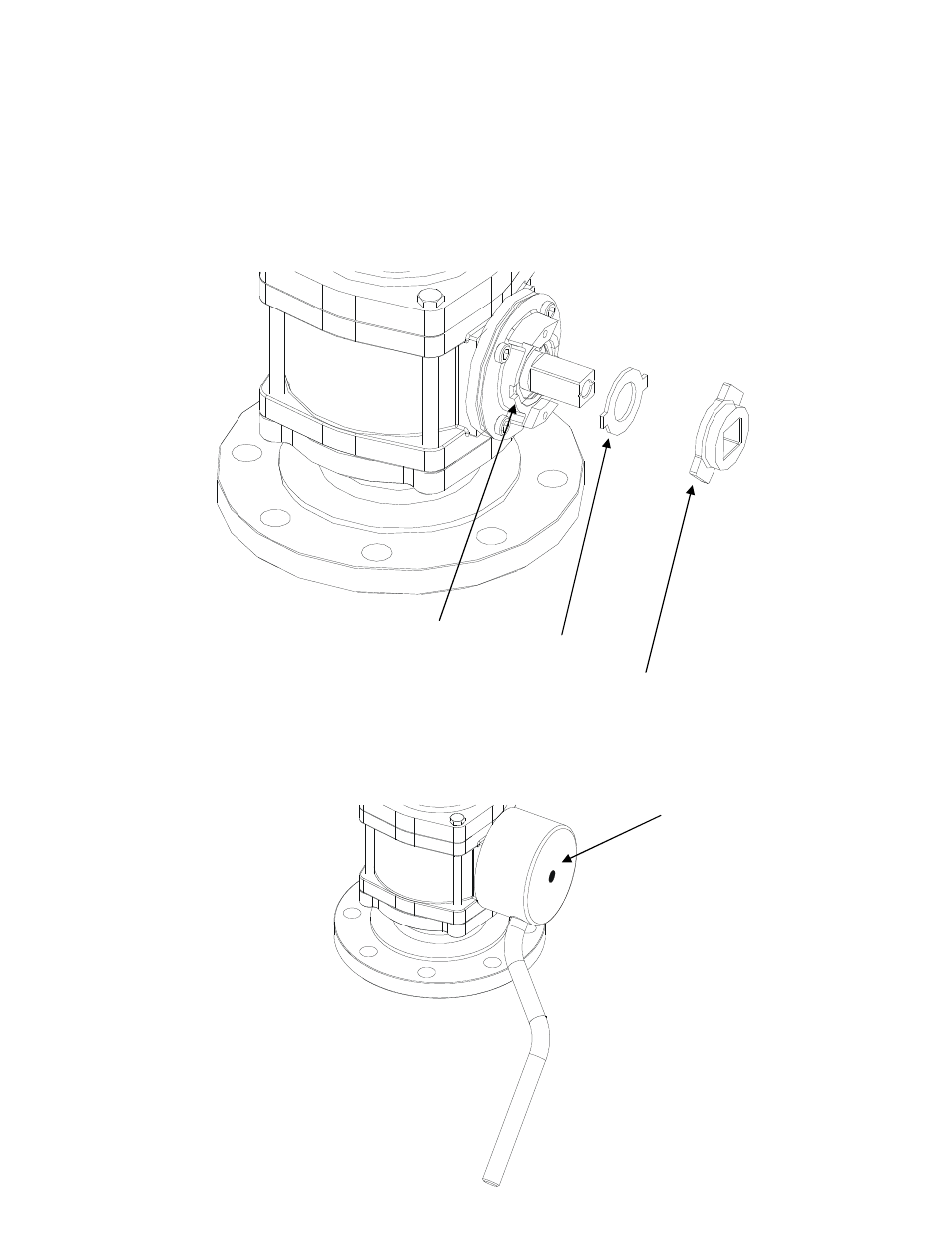

Figure 4
Slot
Bearing Break
Stop Plate
• Place the valve handle assembly on the actuator shaft in the
desired orientation for the closed position. (See Figure 5)
Handle Assembly
Figure 5
