6

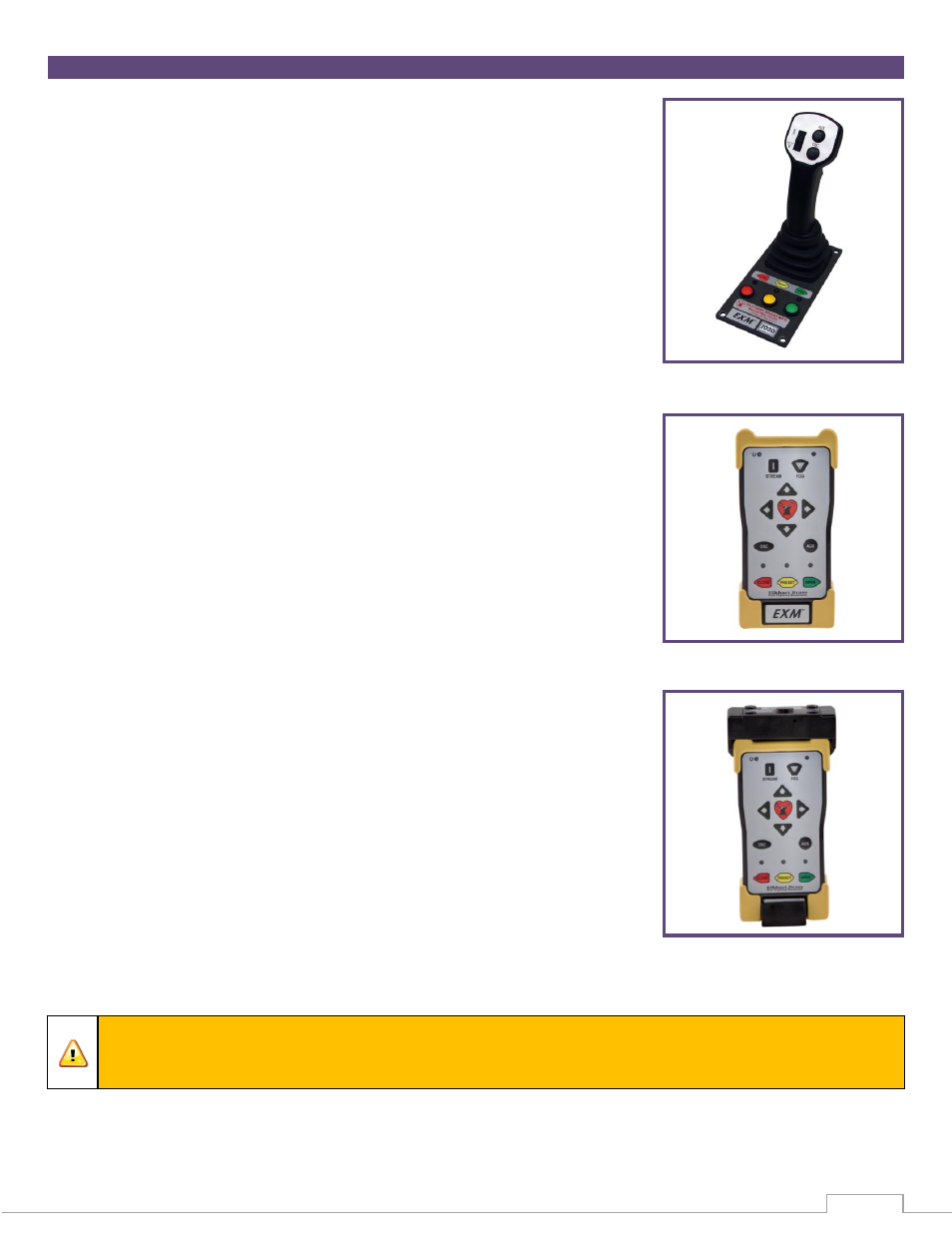

CONTROL
Joystick Controller - 7030
The Joystick Controller must be used in conjunction with the 7070 OEM
Interface Module (Joystick and OEM Interface Module can be ordered
together as the 7035 package). The Joystick Controller can be mounted
inside the apparatus cab to control all monitor functions, including
oscillation. The monitor direction (both vertical and horizontal
movement) is changed by moving the joystick in the desired direction of
travel. The up-down and left-right motions can be operated
simultaneously with pressure sensitive speed, moving the monitor faster
or slower depending on how far the joystick is pushed and pulled. The
water valve can be opened with a trigger switch located on the front of
the joystick or can be locked into position through the use of the valve
buttons on the joystick. Nozzle pattern can be changed using the thumb
wheel on the top of the joystick. Oscillation is programmed by using the
joystick in conjunction with the oscillate button.
Panel Mount Controller – 7010
The Panel Mount Controller is a sealed controller for operation of the
monitor, nozzle, and water valve (optional). Separate push button
switches are provided for up, down, left, right, fog and straight stream,
valve open, valve close, valve preset, oscillation, and auxiliary functions.
The Panel Mount may be powered with 12 or 24 Volts.
Handheld Controller with Docking Station– 7015
When paired with battery pack, docking station, and RF transceiver
module, the Panel Mount Controller becomes a Handheld Controller.
The Handheld Controller is a sealed remote control that contains all the
controls necessary for operation of the monitor, nozzle, and water valve
(optional). The handheld wireless remote allows the operator to control
the monitor from a significantly improved point of view, allowing the
operator to confirm that they are hitting the desired target. Separate
push buttons are provided for up, down, left, right, fog and straight
stream, valve open, valve close, valve preset, oscillation, and auxiliary
functions. The handheld remote, through the use of frequency hopping
techniques, allows multiple transmitters to operate on a common site
without interference. The remote also has an automatic power down
feature that will shut down the power after 5 minutes of no activity. As
an additional power saving feature, the radio signal is only transmitted
while buttons are pushed. The handheld remote case has a NEMA 4
rating. The Handheld may be powered with 12 or 24 Volts.
Caution:
Any modification of the Joystick, Panel Mount, or Handheld Controller
enclosures will destroy the NEMA 4 rating to that piece of equipment and will void the
warranty coverage.
