Section 5 - Attachments and Hitches
5-16 31200114
Bucket
Description P/N
Bucket, 4 in 1 0.6m
3
....................................................... 0930006
Bucket, 4 in 1 - 1 m
3
....................................................... 0930003
Bucket 1.8 m
3
................................................................. 0930016
Bucket 1.5 m
3
................................................................. 0930009
Bucket 0.9 m
3
................................................................. 0930015
Bucket 0.8 m
3
................................................................. 0930008
Bucket w/teeth 0.8 m 3 ..................................................... 4805670
Bucket w/teeth 1.0 m 3 ..................................................... 4802100
Use Appropriate Bucket Capacity Chart
To determine maximum capacity, refer to “Telehandler/Attachment/Fork Capacity” on
page 5-2.

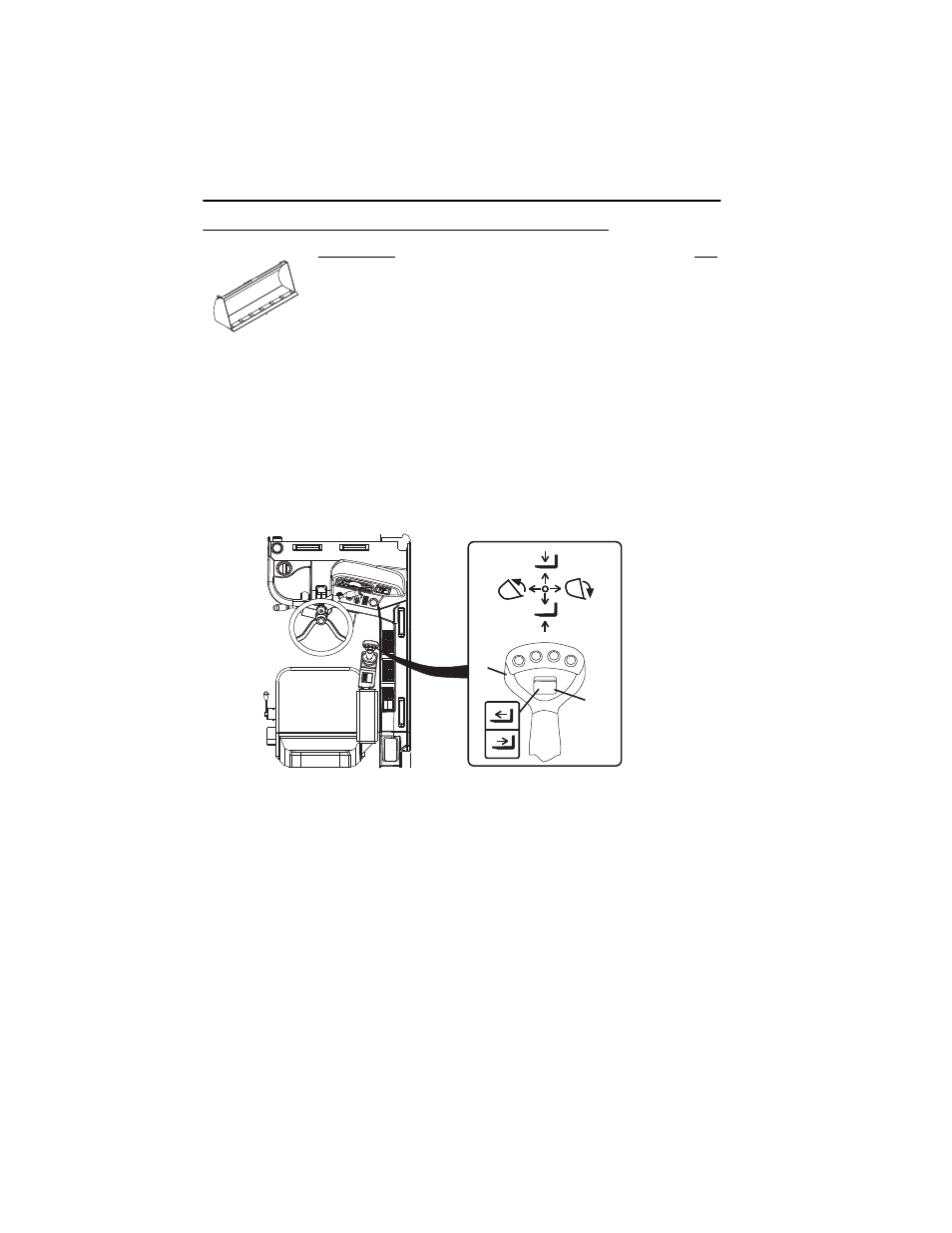

The joystick (1) controls lift/lower movement of the boom and bucket tilt.
• Move joystick left to tilt up.
• Move joystick right to tilt down.
The rocker switch (2) located on the boom joystick controls the extend/retract
movement of the boom.
Installation Procedure:
• Refer to “Attachment Installation” on page 5-7.
OZ0730
OAH0331
2
