APPLICATION

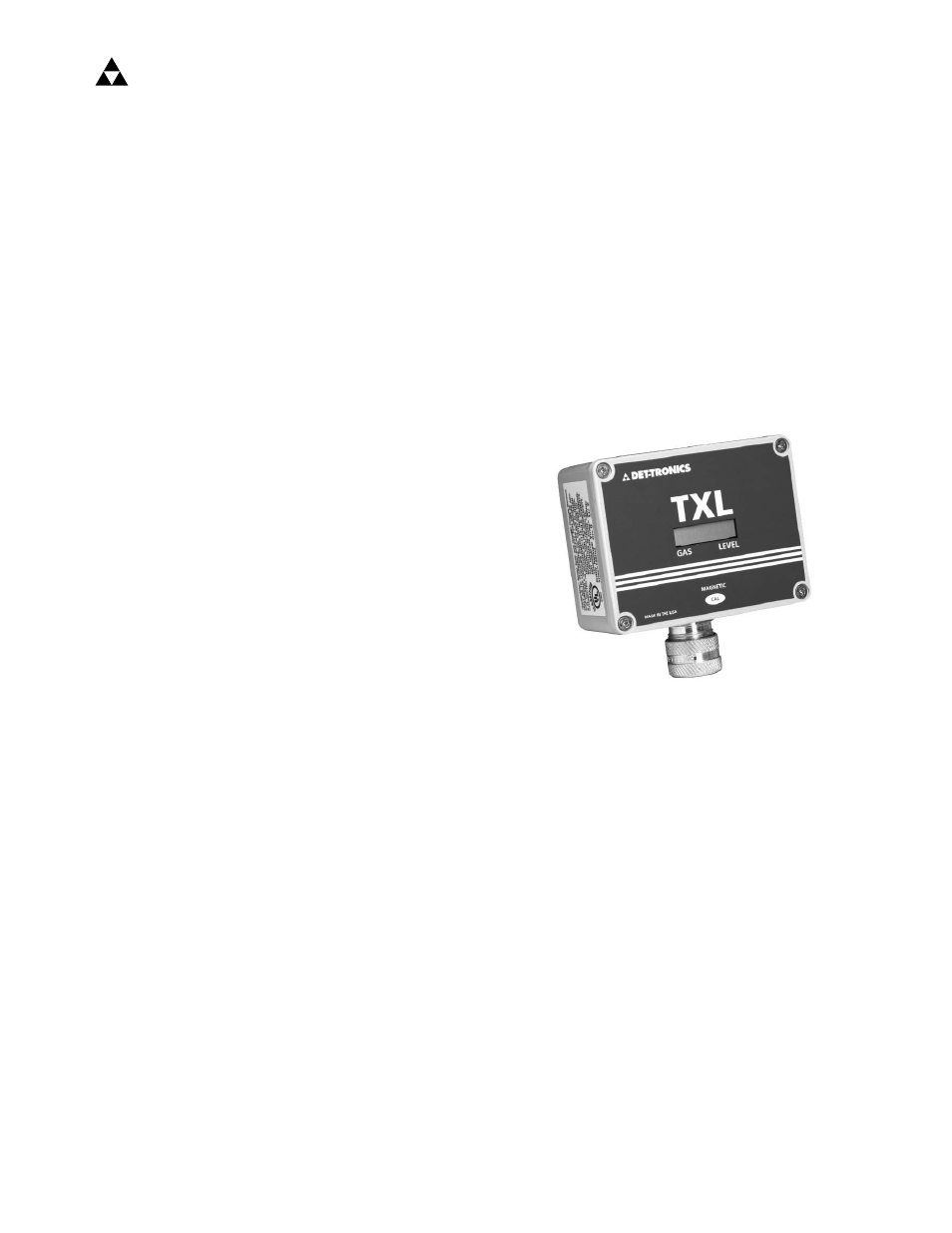

The TXL family of detectors provide cost-effective gas
detection using a reliable electrochemical sensor.
Detector output is a two-wire loop-powered 4-20 mA
analog signal. The output signal is compliant with
industry standards and can be routed to any standard
4-20 mA analog input receiver or controller. An eight
character alphanumeric LCD display indicates the gas
type and concentration in PPM. All electronic circuitry is
contained within an epoxy-coated aluminum enclosure
with NEMA 4 rating Non-intrusive calibration is easily
performed by actuating a magnetic reed switch with a
hand-held magnet.
TXL detectors are intended for life safety protection in
hazardous applications including petrochemical, gener-
al industrial, municipal, and commercial facilities. The
TXL product family provides extremely low power con-
sumption, and can be installed with or without zener
diode barriers depending upon installation area require-
ments.
FEATURES
• Low-cost
• Easy to install
• Intrinsically-safe
• NEMA 4 aluminum enclosure
• 8-character LCD gas level display
• Magnetic, non-intrusive calibration
• 2-wire, loop-powered 4-20 mA output
• Reliable electrochemical sensor
SPECIFICATIONS
ALL TXL MODELS
TRANSMITTER OUTPUT—
4–20 mA linear current signal.
DISPLAY—
8 character LCD.
OPERATING POWER—
24 VDC (12 to 30 VDC). 75 milliwatts maximum.
WIRING—
2-conductor, stranded and shielded.
MAXIMUM CABLE LENGTH—
Up to 4,000 feet using 20 gauge stranded cable.
1.1 © Detector Electronics Corporation 2003 4/03 95-8541
INSTRUCTIONS
TXL Series
Oxygen and Toxic Gas Detectors
DET
-
TRONICS ®
