6. LCC1-16 only: remove the filter frame,
which will be reinstalled after filter
installation.
7. For all LCC/LCD Ovens: Install HEPA
filter:
a. For the High-temperature HEPA
filter:
i. Place the filter with the
triangular gasket set against
the oven wall and the glass
braid set against the clamping
plate (Figure 12).
ii. Tighten the nuts until the
triangular gasket is
compressed to a thickness of
0.16 inch (0.4 cm).
b. For the Standard HEPA filter:
i. Place the filter with the gasket
set against the oven wall
(Figure 13).
ii. Tighten the four nuts
alternately for a torque of 28
(+/- 3 in-lbs.).
iii. Be careful not to over tighten.
6. Reinstall the inner casing assembly
using the three screws removed
earlier.
7. Reinstall the oven shelves.

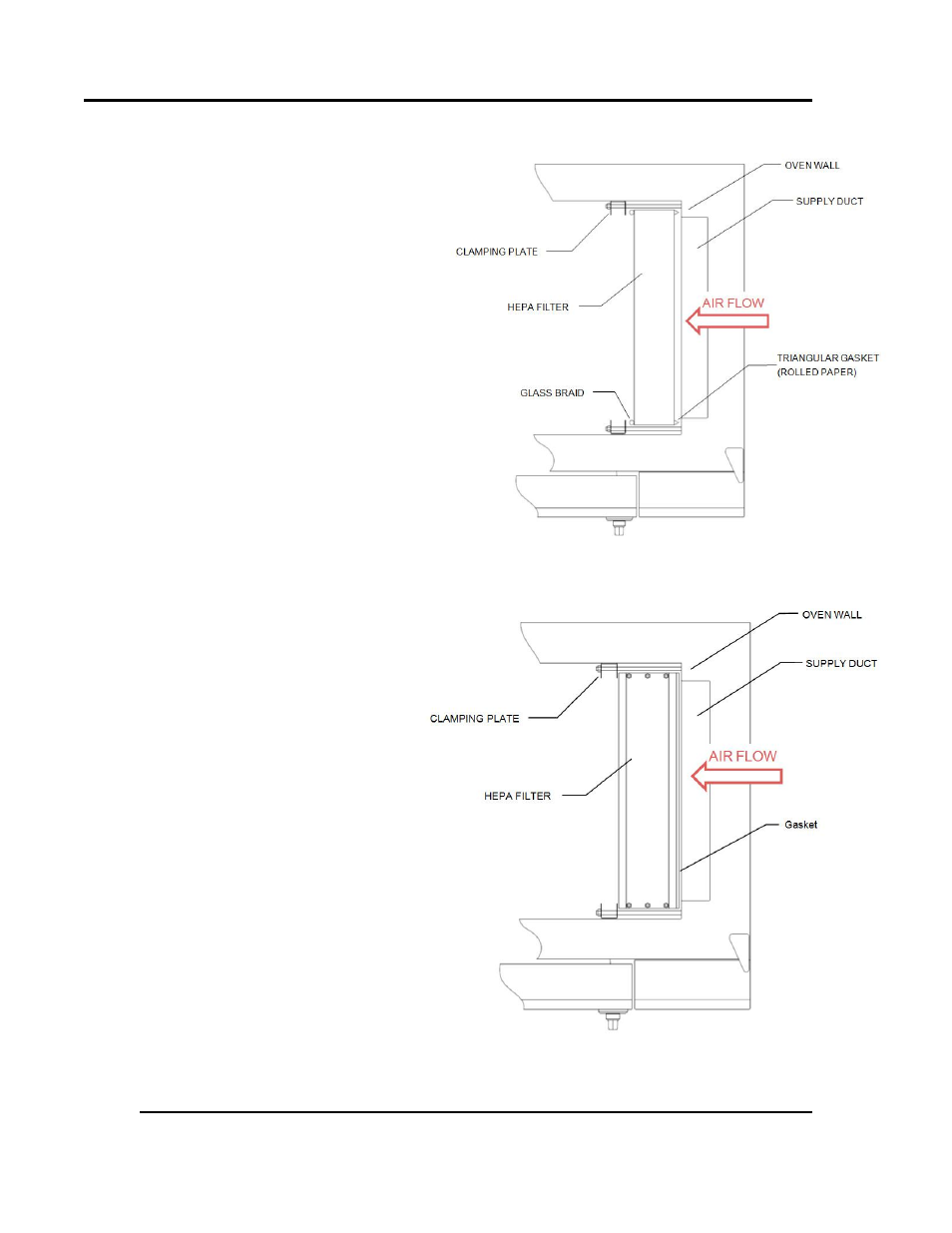

Figure 12. Install HEPA high-temperature filter.
Figure 13. Install HEPA standard filter.
