3. Pull shelves from the oven and set aside (Figure 11).

4. Loosen the three screws at the upper and lower corners of the right rear of the chamber

(Figure 11).
a. Pull out the shelf support/duct as a single unit and set it aside.

5. Remove the brass nuts and washers from the rods that hold the filter frame in place.

a. Set aside and reuse these nuts to hold the new filter in place.
b. Discard the old filter in accordance with your company’s disposal policies.



Opened pleats in the filter media are normal and result from the
tempering process.

Danger!

Make certain power is disconnected from the oven before
removing or replacing the HEPA filter.

Remove shelves before installing HEPA FILTERS

Loosen three screws to remove the entire inner casing

assembly as a single unit

Loosen ¼ turn using 5/16

inch nut driver

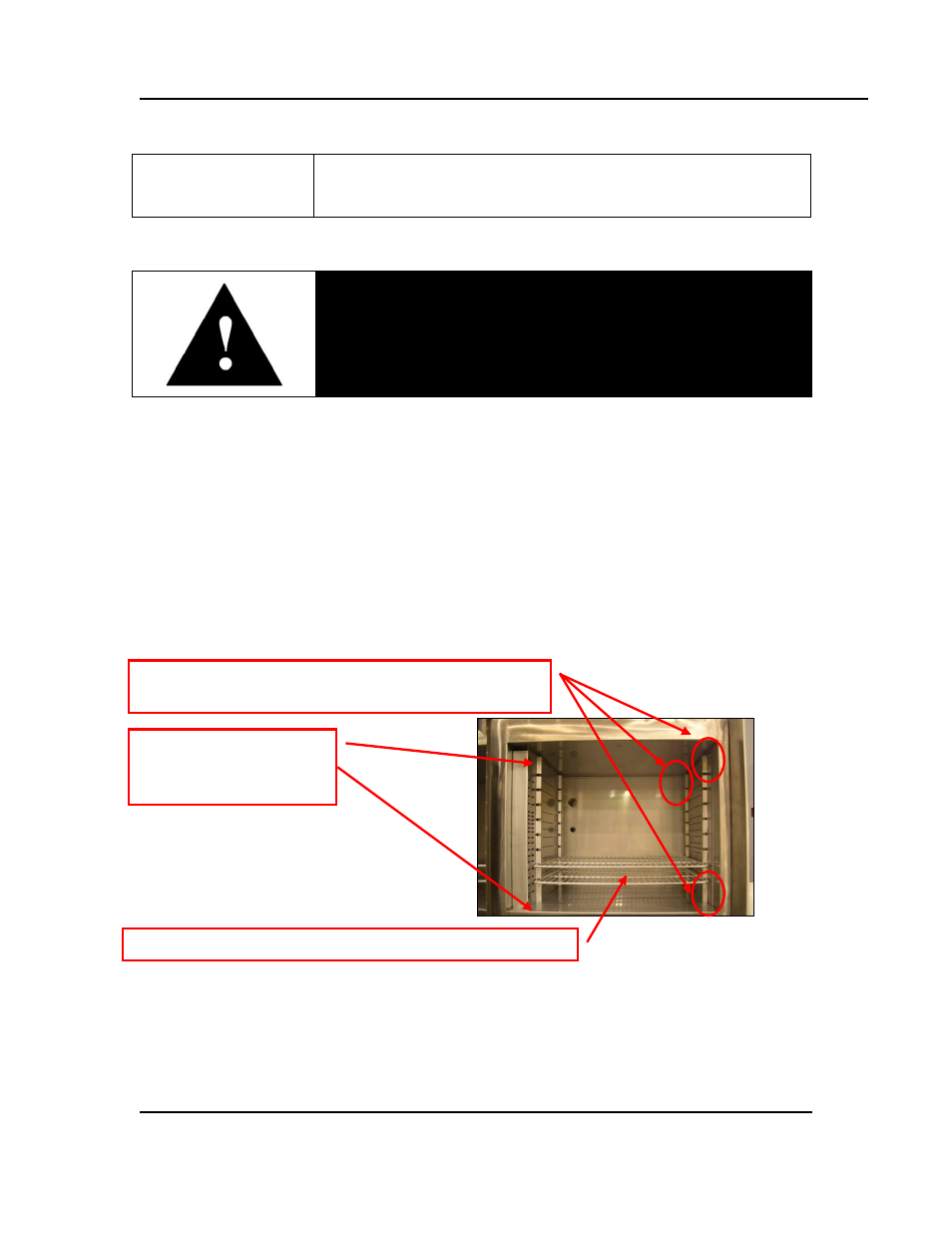

Figure 11. Remove inner casing to install HEPA filter.
