Tally Dascom DM-210/220
15
② Click “OK” to save the setting, the printer prints the corresponding message.
The offset range is -27mm ～ (the distance between two adjacent black marks - 27) mm.

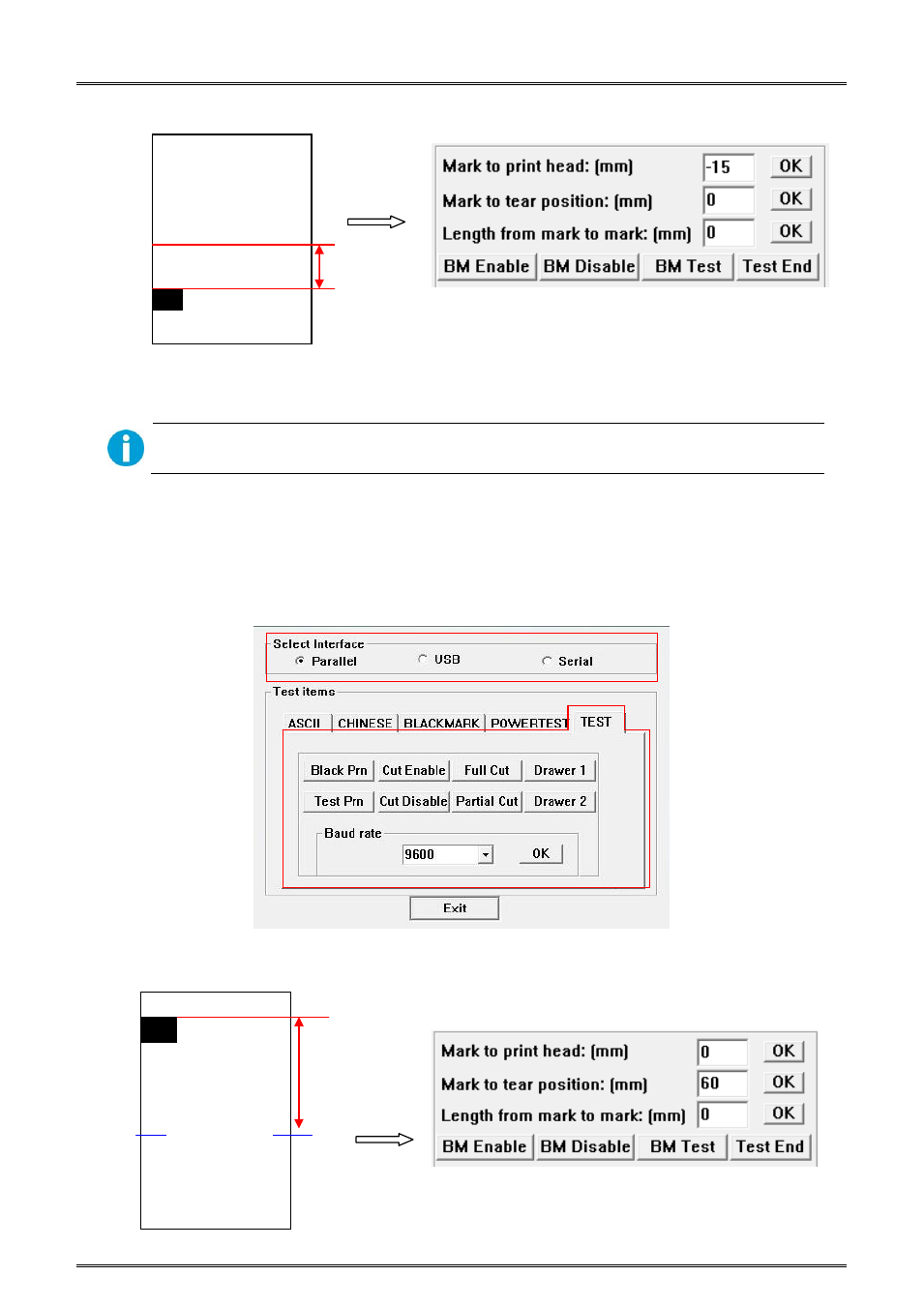

3.1.5 Setting Cutting Position
① Select “TEST” option in the setting window, and then select the cutting mode (full cut or partial cut). The setting
will be valid if the Paper End LED and Error LED flash twice simultaneously.
② Measure the distance between the cutting position and the top of the black mark, then input the value in the
corresponding tab, shown as the below figures.
60mm
Cutting position
If the offset is positive, the cutting position is below the
current black mark (shown as the left figure).
If offset is negative, the printing home position will be
above the black mark (shown as the left figure).
HHHHHHHHHHH
HHHH
15m
m
