This is used to configurate alarm linkage information and manage the

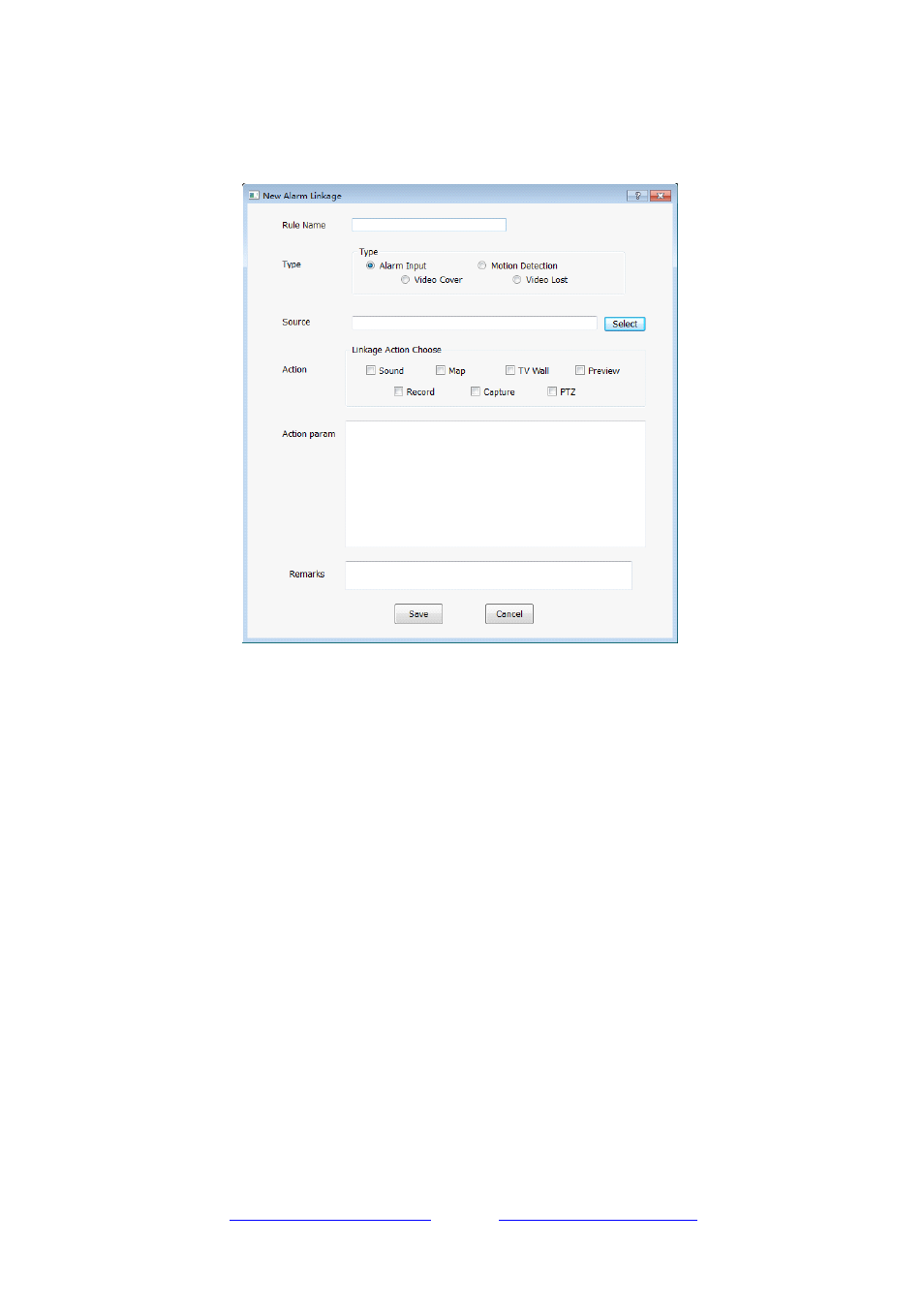

configured alarm linkage . Click new alarm linkage ,as figure below :
Rule name: Rule name (user defined)
Type: Alarm input ,motion detection, video cover, video lost
Source: select any device channel for alarm linkage
Linkage action: corresponding actions for alarm signal receiving, user can select one
or more linkage action including:
Sound: buzzer alarm
Map: Alarming on the electronic map
TV wall: not used
Preview: Pop up a preview window
Record: Alarm triggered video record
Capture: Alarm triggered capture
PTZ: Alarm triggered PTZ control
Action param: display the relevant action information
Remark : indicate the alarm information (user defined)
