2 electronic map – Comelit MT COMELIT VSC IP START SERIES User Manual

Page 20

Text mode
Original mode

Remove channel

Delete the channel from the map

Channel icon

There are two icons for selectable: monitor icon

and gun icon

Motion detection

Set the motion detection alarm linkage, when the alarm is triggered, it will
popping preview window automatically in the electronic map.

Loss of signal

Set the signal loss alarm linkage, when the alarm is triggered, it will

popping preview window automatically in the electronic map.

Shelter alarm

Set the video shelter alarm linkage, when the alarm is triggered, it will
popping preview window automatically in the electronic map.

Alarm input

Set the alarm output linkage,

when the alarm is triggered, it will popping

preview window automatically in the electronic map (as aimed at NVR
series, the front part of alarm input signal is NVR local alarm input, the
behind part signal front-end IPCAM alarm input).

2.3.2 Electronic map

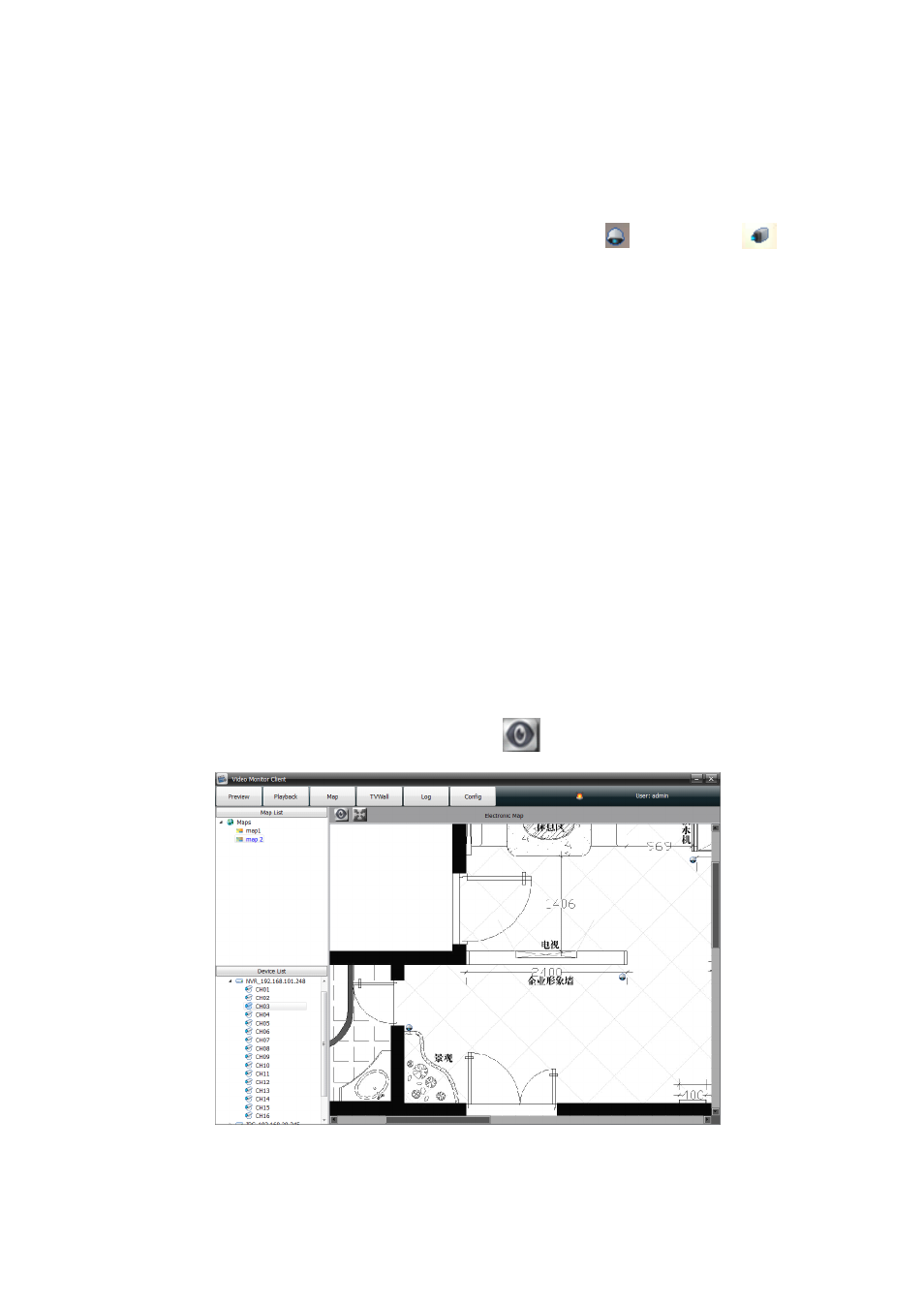

Enter into the module of electronic map (

icon status):
