24 - Audio Features
Concise User’s Guide
English
Audio Features
You can configure the audio options on your computer from the Sounds and Audio Devices Windows control pan-
el, or from the Realtek HD Audio Manager icon in the taskbar/control panel (this will bring up the Realtek Audio
Configuration menus). The volume may also be adjusted by means of the Fn + F5/F6 key combination.
8 Channel Sound Support
To configure your system for 8 channel sound support, select
8CH Speaker from the pull-down menu in Audio I/O (tab) and
click OK. Connect the cables to the following audio jacks:
• Side Speaker Out - Connect to S/PDIF Out (Black)
• Center/Subwoofer Speaker Out - Connect to Microphone In
(Pink)
• Front Speaker Out - Connect to Speaker/Headphone Out
(Green)
• Rear Speaker Out - Connect to Line In (Blue)
Sound Volume Adjustment
How high the sound volume can be set depends on the setting
of the volume control within Windows. Click the Volume icon
in the taskbar to check the setting.

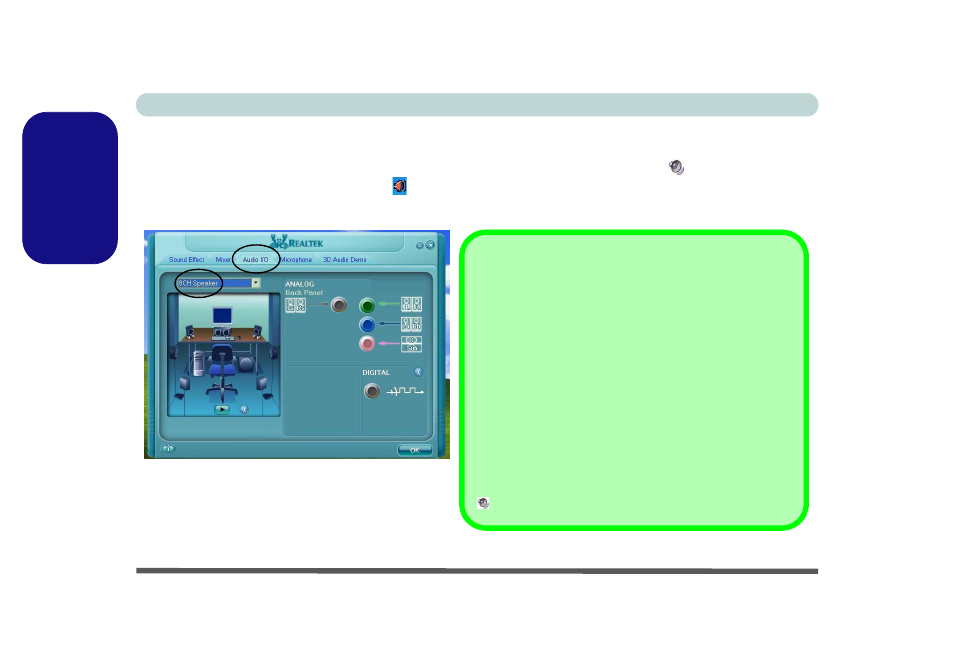

Figure 13
Realtek Audio Control Panel
