2 Form No. 115301 rev. 0

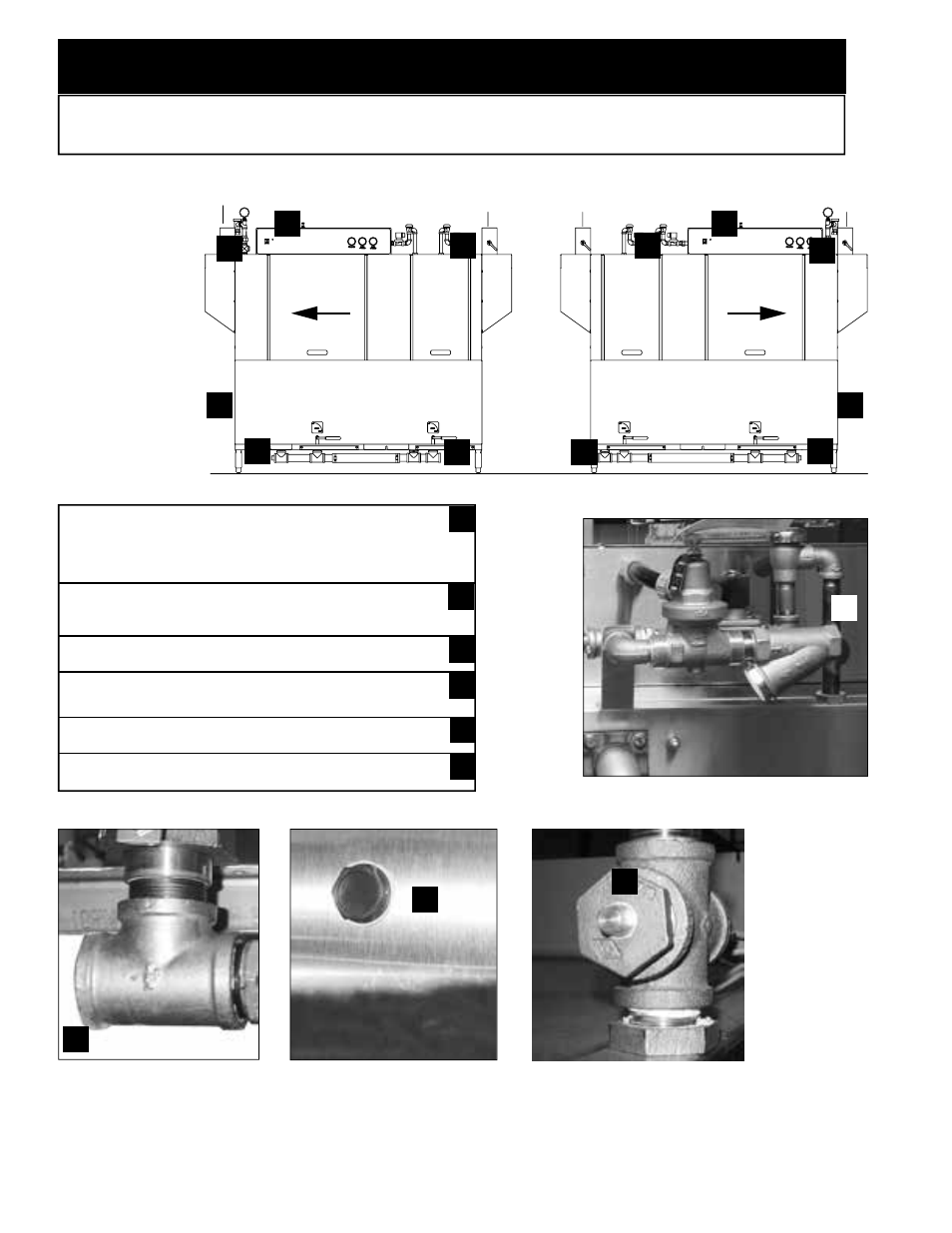

Rack Conveyor Models CH66, and MD66
Plumbing Utility Connection Guide (CH44, MD44 on reverse side)
! ATTENTION PLUMBING INSTALLER !
Hot Water — 3/4" NPT,
20 MIN/25 MAX PSI flowing pressure
140°F/43°C Min. for 40°F/22°C rise booster
110°F/43°C Min. for 70°F/39°C rise booster
(Optional) Cold Water — 1/2" NPT, 55-75°F/13-24°C
Prewash Tank Tempering
Drain — 1-1/2" NPT
(Optional)
Cold Water — 1/2" NPT, 55-75°F/13-24°C
Drain Water Tempering
Detergent Probe — 7/8" hole.
Rinse-aid — 1/8" NPT brass plug
B
C
D
A
E
F
CH66-LR
MD66-LR
CH66-RL
400CFM
WASH WASH PW PW
400CFM
200CFM 200CFM
MD66-RL
C
B B
C D D
A A
E E
F F
A
C
E
F
