Model DH5000 Operation/Cleaning Guide
Every 2 hours and at the end of the day
CLEANING
For
m No.115073_0

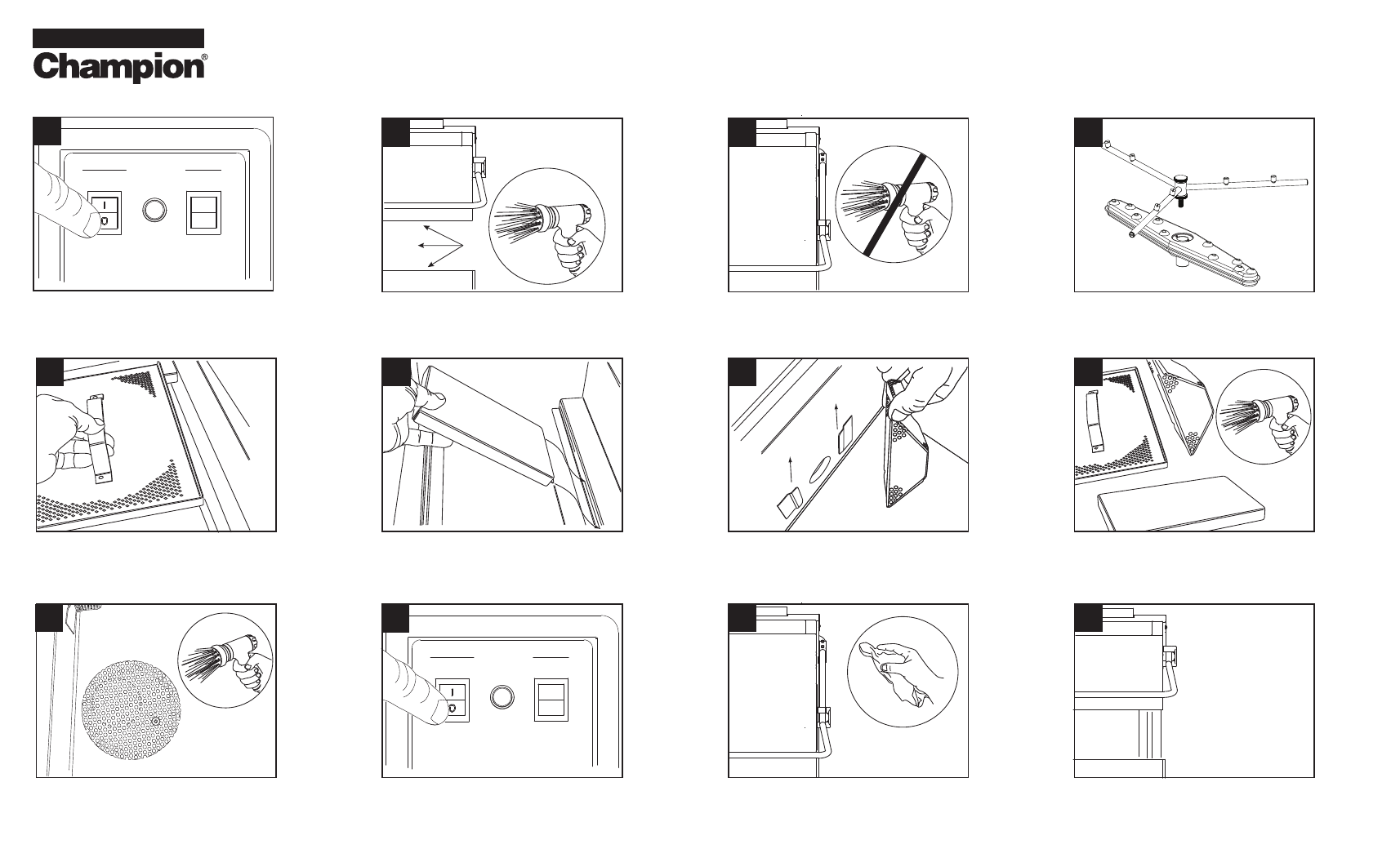

Push the power switch to the
OFF/DRAIN position to drain.
Push the power switch ON & immediately
to the OFF/DRAIN position to drain.
Remove the scrap screen support
filler plate.
Remove the pump suction screen. Back flush the screens and plate
in a remote sink. DO NOT strike
the screens against hard objects.
Clean the round drain screen
& flush the bottom of the tank.
Spray the interior of the machine
with fresh clean water.
Remove the upper & lower
spray arms and flush clean.
DO NOT spray the exterior of
the machine with water.
Wipe the exterior with mild detergent
and dry with soft cloth.
Remove the scrap screens from
the machine.
Reassemble machine and leave
hood open to aid in overnight drying.
DRY
OPEN
OVERNIGHT
POWER WASH
ON
CYCLE
STANDARD
OFF/DRAIN EXTENDED
1 2 3 4
6 5 7 8
9
POWER WASH
ON
CYCLE
STANDARD
OFF/DRAIN EXTENDED
10 11 12
