3. Attach 3/8” orange tubing from the chamber to the flow meter outlet.
4. Connect compressed air to dryer package inlet fitting (1/4 NPT)
See Operations section of the manual for instructions on setting the pressure regulator
and flow meter.

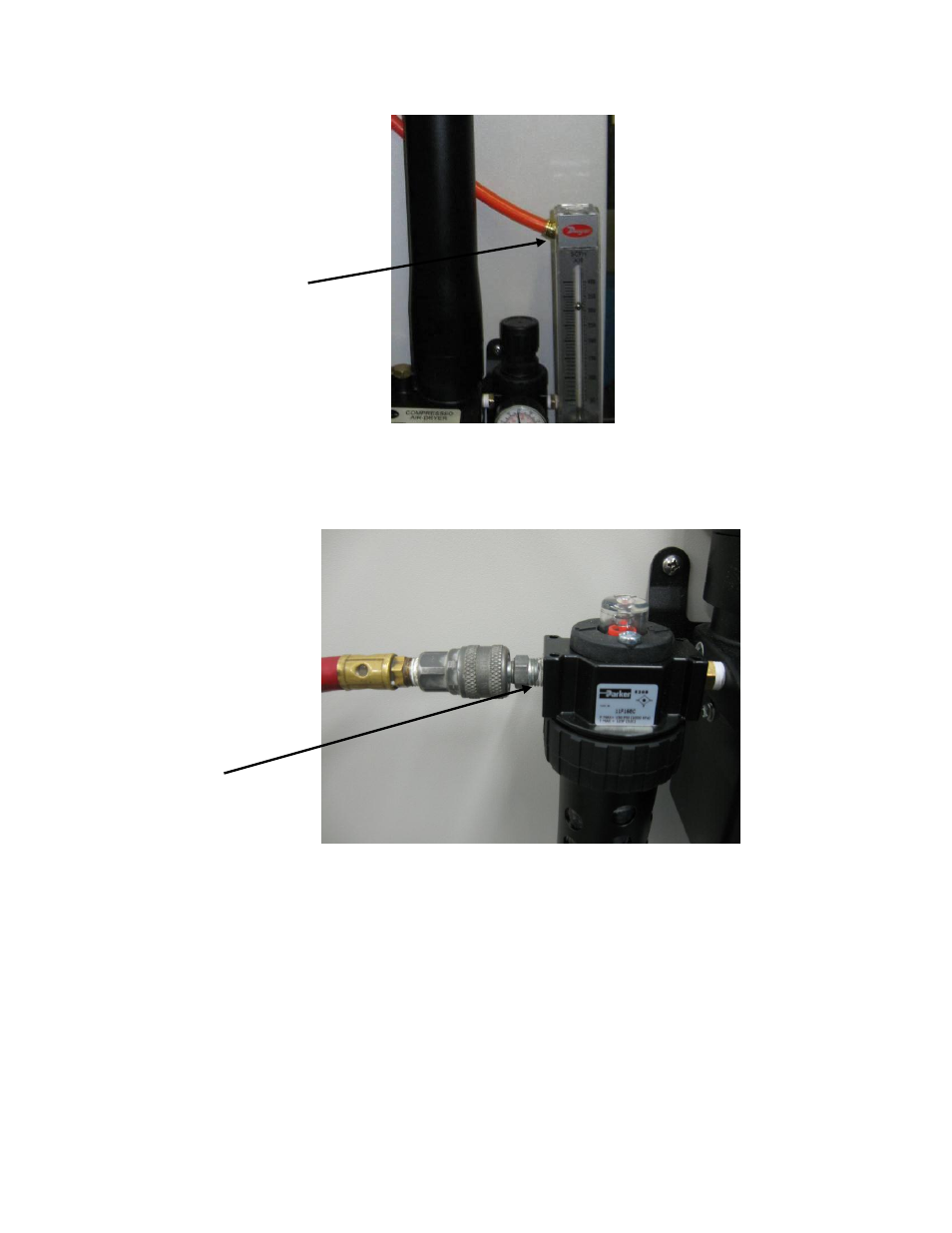

Dryer Inlet
Flow Meter
Outlet
