Online manual not for resale purposes – BLITZ Dual SBC Spec R & S User Manual

Page 5

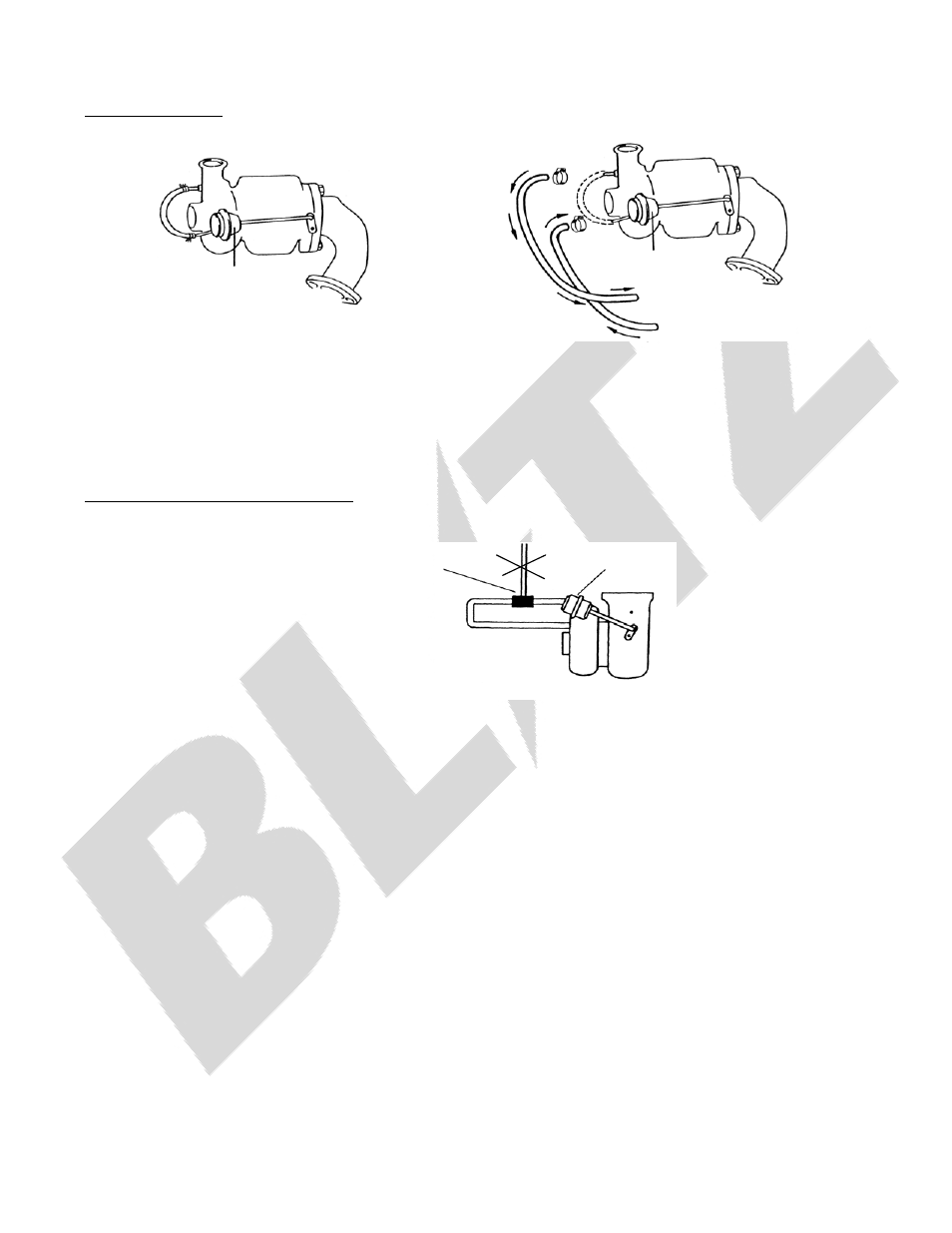

TURBO SYSTEM EXAMPLES

Actuator type set up

the out port on the turbo to the in port of the solenoid.

Vehicles equipped with stock solenoids

TO STOCK SOLENOID

FACTORY "T" FITTING

connected to factory electrical harness.

After this procedure is complete, follow the instructions above for the actuator type set up.

IMPORTANT

: For Actuator setup, please be sure that AC is set on back of the controller

Remove the stock hose which connects the actuator to the turbo. Use the supplied rubber hose
to connect the actuator port to the out port of the solenoid. Use the supplied rubber hose to connect

For vehicles equipped with stock a stock solenoid, locate the factory T and remove the factory solenoid line
from the factory "T". The cap off the stock solenoid line. Leave the factory solenoid in the vehicle still

ACTUATOR

IN port

OUT port

ACTUATOR
